This kit provides for the installation of a unified grille panel
for a framed or overlay custom panel. The panel will span
the combined width of a side by side installation.
Completion Time: Allow approximately 2 hours to install
this kit.
IMPORTANT: 2 People are required to install this kit.
Disconnect power before you begin.
Installation
Instructions
ZKBSN720NSS - Stainless Steel
Unification Kit and
ZKBFN720NII Panel Unification Kit
CONTENTS:
DESIGN GUIDE
STANDARD INSTALLATION - Case Flush to Cabinet
with Proud Doors
The Installation Space ...................... 2
Dimensions and Clearances ................. 2
Grille Panel Dimensions .................... 3
DESIGN GUIDE
FLUSH INSTALLATION - Case Inset to Cabinet with
Flush Doors
The Installation Space ...................... 3
INSTALLATION INSTRUCTIONS
MATERIALS ................................ 4
GROUNDING THE REFRIGERATOR ............ 5
STEP 1. REMOVE PACKAGING ................ 6
STEP 2. INSTALL WATER LINES .............. 6
STEP 3. INSTALL NEW CENTER TRIM ......... 7
STEP 4. REMOVE BOTH GRILLE PANEL
FRAMES ........................... 7
STEP 5. INSTALL SIDE PANELS .............. 7
STEP 6. INSTALL ANTI-TIP BRACKET .......... 8
STEP 7. POSITION REFRIGERATOR AND
INSTALL TOP TRIM .................. 9
STEP 8. LEVEL REFRIGERATOR ............. 10
STEP 9. INSTALL ANTI-TIP BRACKET ......... 11
STEP 10. SECURE REFRIGERATOR
TO CABINETRY ................... 13
STEP 11A. INSTALL UNIFIED PANEL FRAME . . 14
STEP 11B. INSTALL STAINLESS STEEL
GRILLE PANEL .................. 15
STEP 12. INSTALL CENTER TRIM STRIP ...... 15
STEP 13. ADJUST DOOR SWING ............. 15
STEP 14. CHECK AND CORRECT DOOR
ALIGNMENT ...................... 16
STEP 15. INSTALL GRILLE BASE ............ 18
STEP 16. CONNECT WATER SUPPLY ......... 18
STEP 17. CONNECT POWER ................ 19
STEP 18A. INSTALL STAINLESS STEEL
TOEKICK ....................... 19
STEP 18B. INSTALL CUSTOM TOEKICK FOR
STANDARD INSTALLATION ........ 19
STEP 18C. INSTALL CUSTOM TOEKICK FOR
FLUSH INSET INSTALLATION ...... 19
To consult a French or Spanish version of this instruction manual, visit our Monogram.com website.
In Canada, visit Monogram.ca.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these instructions for local inspector’s use. Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
If you received a damaged unit, you should immediately contact your dealer or builder.
Skill Level – Installation of this unit requires basic mechanical, carpentry and plumbing skills. Proper installation
is the responsibility of the installer. Product failure due to improper installation is not covered under the Monogram
Warranty. See the Owner’s Manual for warranty information.
WARNING
Fire or Explosion Hazard. Keep flammable materials and vapors away from
appliance. Failure to do so can result in fire, explosion, or death.
WARNING
To reduce the risk associated with choking, do not allow children under 3 years of age to
have access to small parts during the installation of this product.

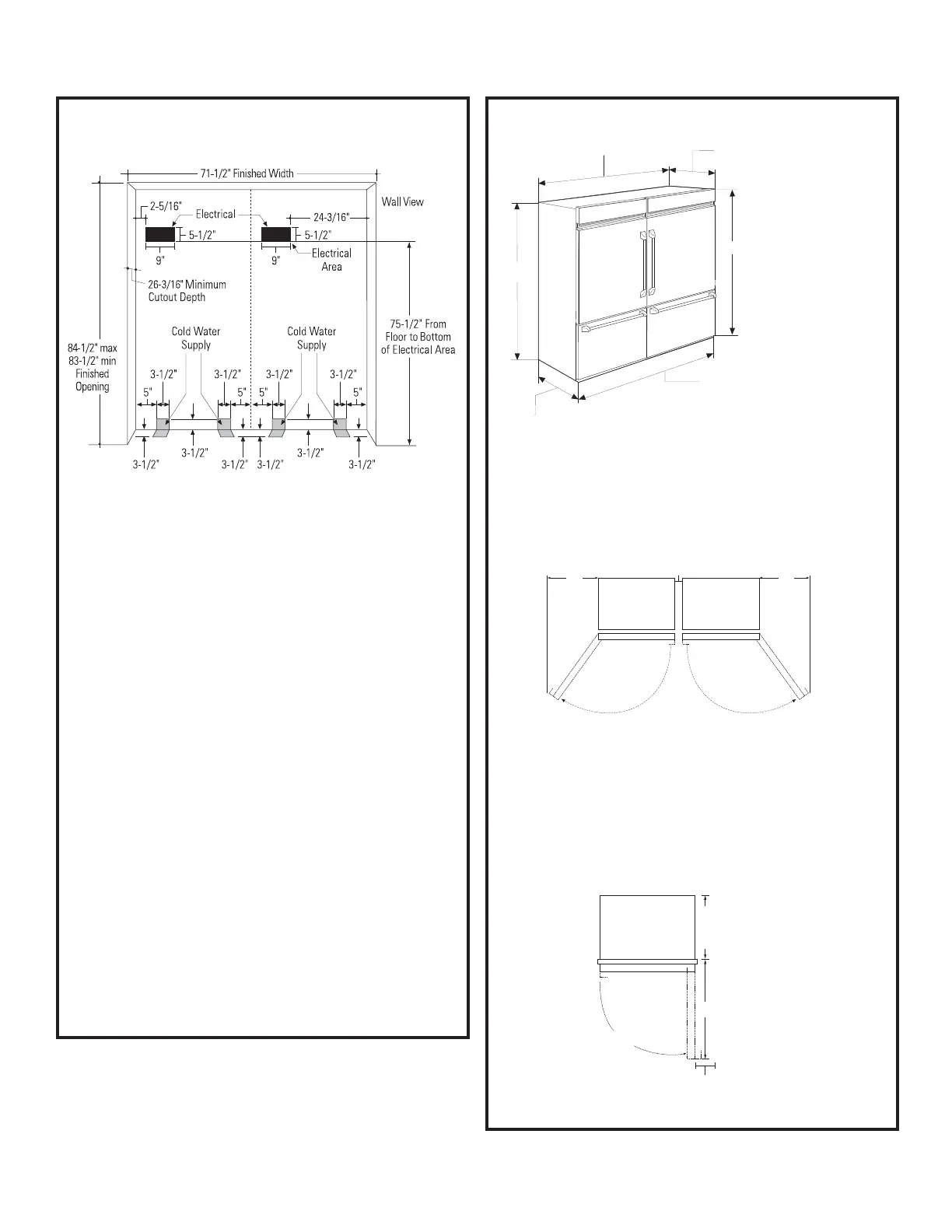

THE INSTALLATION SPACE
The installation space must be 71-1/2” wide.
Water and Electrical Locations
The water and electrical locations for each product must
be located as shown.
The cutout depth must be 24”
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed
the 24” installation depth shown. The top case trim
overlaps the bottom of the soffit.
Additional Specifications
ƒ A separate 115 volt, 60Hz, 15 or 20 amp power supply
is recommended for each product. An individual
properly grounded branch circuit or circuit breaker
is recommended. Install properly grounded 3-prong
electrical receptacles recessed into the back wall.
Electrical must be located on rear wall as shown.
NOTE: GFI (ground fault interrupter) is not
recommended.
ƒ Both water lines can enter the opening through the
floor or back wall. Route SmartConnect™ kit or 1/4”
O.D. copper tubing between the cold water line and
the water connection location. The tubing should be
long enough to extend t the front of the refrigerator.
Installation of an easily accessible shut-off valve in the
water line is required.
DIMENSIONS AND CLEARANCES
Product and Clearances
These refrigerators are equipped with a 3-position door
stop. The factory set 115° door swing can be adjusted
to 90° if clearance to adjacent cabinets or walls is
restricted.
Allow 25" minimum clearance for a full 130 door swing.
Allow 15" for pan removal.
5" minimum clearance is required when door swing is
adjusted to 90. If the 90 door stop position is used, pan
access is maintained, but pan removal is restricted.
See illustrations to determine door swing interaction with
adjacent cabinets or countertops.
DESIGN GUIDE - STANDARD INSTALLATION
25”
Min. to
Wall
25”
Min. to
Wall
1”
130° Door
Swing
130° Door
Swing
71-1/2"
Case Width
25-3/4"
Case Depth
28-1/2" Depth
Including Handles
72" Frame to
Frame Width
*Shipping height. The
refrigerators can be adjusted
to fit into a cutout that is
83-1/2" min. to 84-1/2" max.
Note that the top case trim
at the front is 1/2" higher and
will overlap upper cabinetry
or soffit. Use leveling legs
and wheels for a maximum
1" height adjustment.
*84"
83-1/2"
at Rear
23-7/8"
Behind
Frame
36-3/4"
4" Minimum
to Wall
90°
2
31-1000414 Rev. 1
