Before you begin
Read these instructions carefully and completely
•IMPORTANT-Save these instructions for
local inspector’s use.
•
IMPORTANT-Observe all governing
codes and ordiances.
30” Built In Wall Oven
Installation
Instructions
JTP15, JTP17, JTP18, JTP27, JTP45, JTP47, JTP56,
JT910, JT910WA, JT950AA, JT950, ZET737, ZET757
• Note to Installer- Be sure to leave these
instructions with the consumer.
• OWNER- Keep these instructions for future
reference.
• NOTE- This appliance must be properly
grounded.

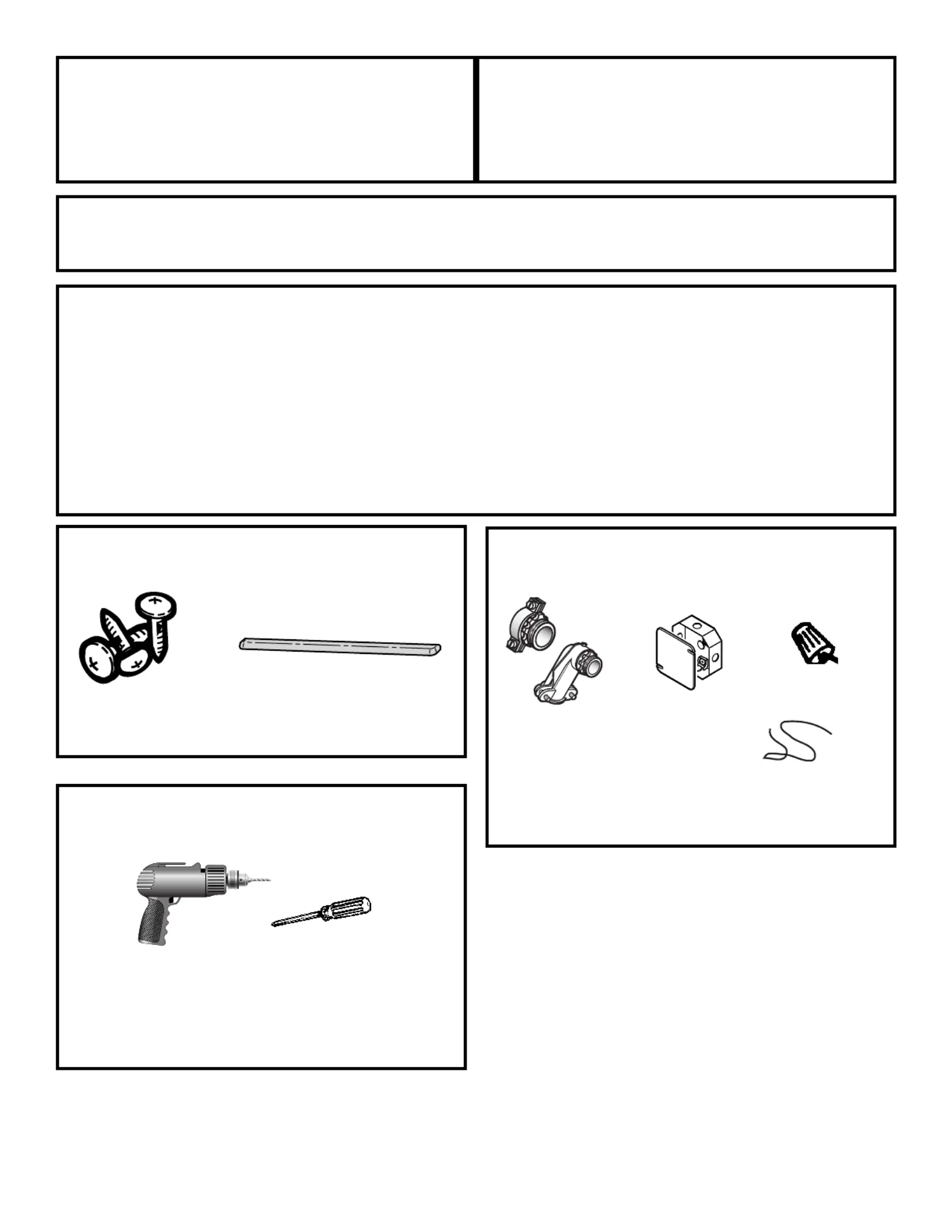

Parts Included
Bottom Trim
4 screws (single)
8 screws (double)
Tools You Will Need
Pub. No. 31-10435
229C4053P417-1
1
Materials Needed
ATTENTION: INSTALLER
All electric wall ovens must be hard wired (direct wired) into an approved
junction box. A “plug and receptacle” is not permitted on these products.
1/8” Drill Bit &
Electric or
Hand Drill
Phillips
Screwdriver
Strain Relief
Clamp
Junction
Box
Wire Nuts
36” of String
“If you have questions, call 800-GE-CARES or visit our website at:
www.GEAppliances.com”
• Be sure your oven is installed properly by
a qualified installer or service technician.
• Be sure the oven is securely installed in a
cabinet that is firmly attached to the
house structure. Weight on the oven door
could cause the oven to tip and result in
injury. Never allow anyone to climb, sit,
stand or hang on the oven door.
• Make sure the cabinets and wall cover-
ings around the oven can withstand the
temperatures (up to 200°F.) generated by
the oven.
CAUTION: The electrical power
to the oven supply line must be
shut off while line connections
are being made. Failure to do so
could result in serious injury or
death.
For Your Safety
2
Installation Instructions
This appliance must be supplied with the
proper voltage and frequency, and connected
to an individual, properly grounded branch
circuit, protected by a circuit breaker or fuse,
having amperage as noted on rating plate.
(Rating Plate is located on oven frame.)
We recommend you have the electrical wiring
and hookup of your oven connected by a
qualified electrician. After installation, have the
electrician show you where your main range
disconnect is located.
Check with your local utilities for electrical
codes which apply in your area. Failure to
wire your oven according to governing codes
could result in a hazardous condition. If there
are not local codes, your range must be wired
and fused to meet the requirements of the
National Electrical Code, ANSI/NFPA No. 70-
Latest Edition. You can get a copy by writing:
National Fire Protection Association
Battery March Park
Quincy, MA 02269
Effective January 1, 1996, the National
Electrical Code requires that new, but not
existing, construction utilize a 4 conductor
connection to an electric range. When
installing an electric range in new
construction, follow the instructions in the
section on NEW CONSTRUCTION AND
FOUR CONDUCTOR BRANCH CIRCUIT
CONNECTION.
You must use a three-wire, single-phase A.C.
208Y/120 Volt or 240/120 Volt, 60 hertz
electrical system. If you connect to aluminum
wiring, properly installed connectors approved
for use with aluminum wiring must be used.
Electrical
Requirements
IMPORTANT SAFETY INSTRUCTIONS
Installation Instructions
EASY INSTALLATION OF YOU NEW
30" WALL OVEN
Before you begin-Read these instructions completely and carefully.
IMPORTANT- Save these instructions for local inspector's use.
IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave these instructions with the consumer.
OWNER- Keep these instructions for future reference.
Note- This appliance must be properly grounded (if applicable).
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).
FOR YOUR SAFETY
Before you begin-Read these instructions completely and carefully.
IMPORTANT- Save these instructions for local inspector's use.
IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave these instructions with the consumer.
OWNER- Keep these instructions for future reference.
Note- This appliance must be properly grounded (if applicable).
Before you begin-Read these instructions completely and carefully.
IMPORTANT- Save these instructions for local inspector's use.
IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave these instructions with the consumer.
OWNER- Keep these instructions for future reference.
Note- This appliance must be properly grounded (if applicable).
ELECTRICAL REQUIREMENTS
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).

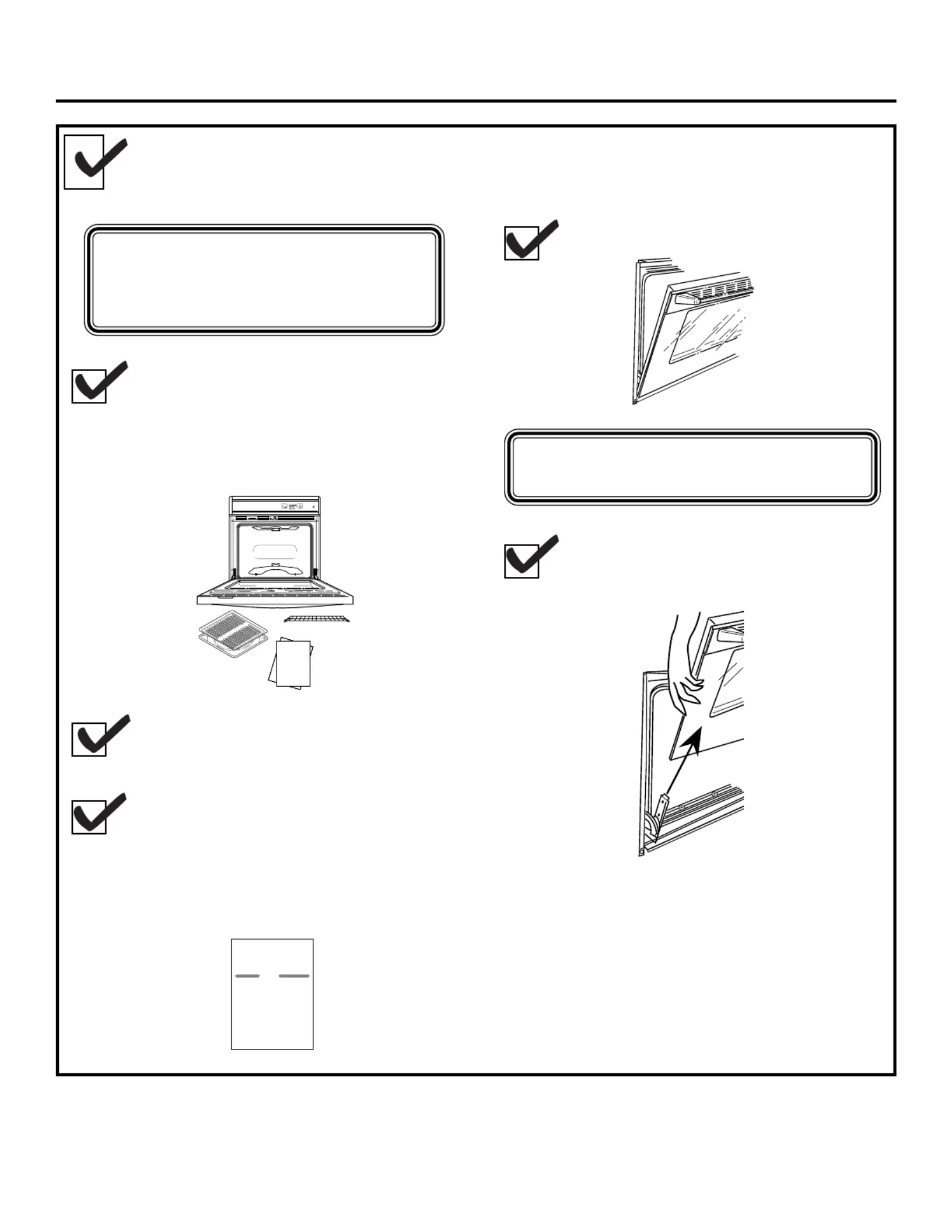

Open oven door and remove literature
pack, broiler pan and grid, and oven
racks.
Remove Installation Instruction from
literature pack and read them carefully
before you begin.
Be sure to place all literature, Use and
Care, Installations, etc. in a safe place
for future reference.
Open the door to the stop position.
DO NOT LIFT THE DOOR BY THE
HANDLE!
Grasp the door on both sides and
lift up and off the hinges.
NOTE:The oven door is very heavy. Be
sure you have a firm grip before lifting the
oven door off the hinges. Use caution
once the door is removed. Do not lay the
door on its handle. This could cause
dents or scratches
Remove packaging materials.
Check behind hinges, and under
false bottom. Remove labels on
door, plastic on trims and panel,
and all tape around oven.
3
ALL INSTALLATION INFORMATION
ON THE FOLLOWING PAGES ARE
TO BE USED FOR SINGLE AND
DOUBLE OVEN INSTALLATION!
Pre- Installation Checklist
(Continued on following page)
EASY IN
I
G
No
the
OW
for fu
Note-
proper
Before
instruc
carefully
IMPORTA
instructio
IMPORTAN
GOVERNIN
Note to Insta
these instruc
OWNER- Keep
for future refer
Note- This appli
properly ground
I
G
No
the
OW
for fu
Note-
proper
Before
instruc
carefully
IMPORTA
instructio
IMPORTAN
GOVERNIN
Note to Insta
these instruc
OWNER- Keep
for future refer
Note- This appli
properly ground
I
G
No
the
OW
for fu
Note-
proper
Before
instruc
carefully
IMPORTA
instructio
IMPORTAN
GOVERNIN
Note to Insta
these instruc
OWNER- Keep
for future refer
Note- This appli
properly ground
I
G
No
the
OW
for fu
Note-
proper
Before
instruc
carefully
IMPORTA
instructio
IMPORTAN
GOVERNIN
Note to Insta
these instruc
OWNER- Keep
for future refer
Note- This appli
properly ground
EASY INSTALLATION OF YOUR NEW
30" WALL OVEN
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).
FOR YOUR SAFETY
Before you begin-Read these instructions completely and carefully.
IMPORTANT- Save these instructions for local inspector's use.
IMPORTANT- OBSERVE ALL GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave these instructions with the consumer.
OWNER- Keep these instructions for future reference.
Note- This appliance must be properly grounded (if applicable).
ELECTRICAL REQUIREMENTS
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).
Before you begin-Read these
instructions completely and
carefully.
IMPORTANT- Save these
instructions for local inspector's use.
IMPORTANT- OBSERVE ALL
GOVERNING CODES AND ORDIANCES.
Note to Installer- Be sure to leave
these instructions with the consumer.
OWNER- Keep these instructions
for future reference.
Note- This appliance must be
properly grounded (if applicable).
Broiler Pan
and Grid
Oven Racks
Literature
Pack
