I-00162 Rev E

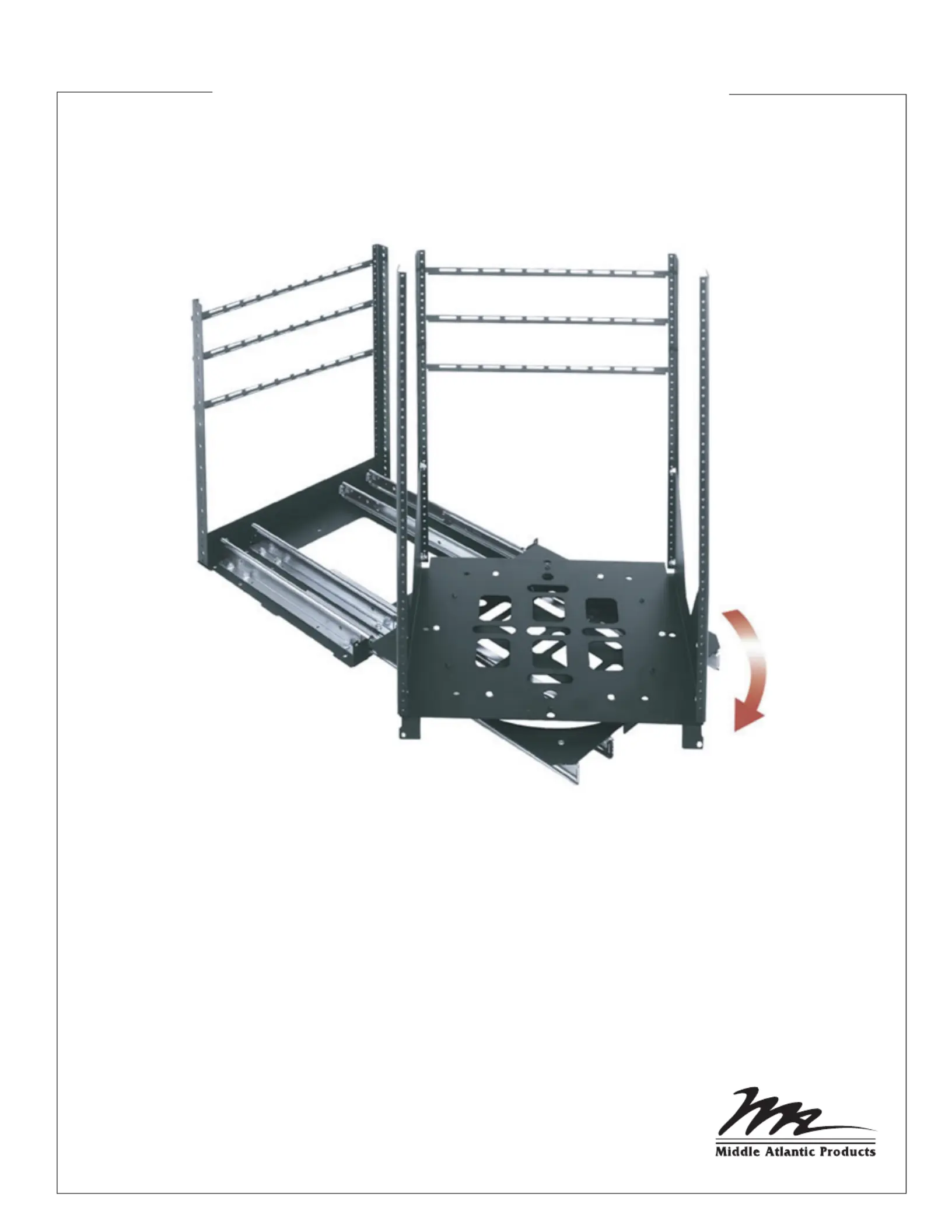

SRSR SERIES

Rotating Sliding Rail System

Instruction Sheet

THANK YOU

Thank you for purchasing the SRSR Series Rotating Sliding Rail System. Please read these

instructions thoroughly before assembling this product.

PRODUCT FEATURES

- Provides easy access to rear equipment connections

- Ideal for millwork, cabinets and flush in-wall installations

- Rack frame removes for in-shop integration and on-site installation

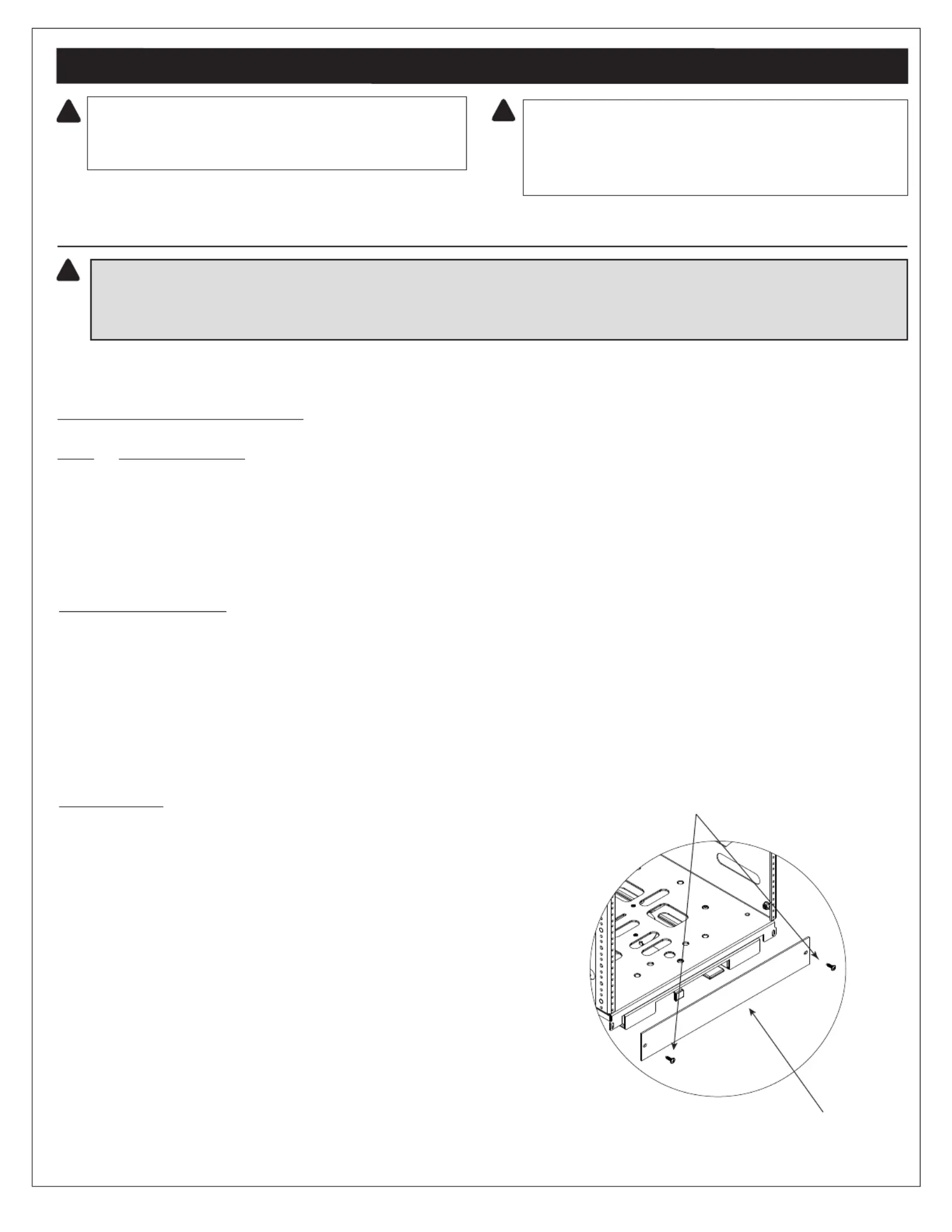

LOCKING

TRIM PANEL

RACK SCREWS #10-32 (2)

FIGURE A

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to a

situation that could result in serious personal

injury or death.

IMPORTANT WARNINGS AND CAUTIONS!

WARNING! Failure to read, understand and follow the following information can result in serious

personal injury, damage to the equipment or voiding of the warranty. It is the responsibility of the

Installer/User to ensure that this product is loaded according to specifications.

Page 3

CAUTION: A CAUTION alerts you to a

situation that may result in minor personal

injury or damage to the product

and /or property.

TOOLS REQUIRED

#2 Phillips Head Screwdriver

1/2” Wrench

Drill

Tape Measure

HARDWARE KIT INCLUDES

1/8” Hex Key

5/16” - 18 Flange Nuts

#10 - 32 x 1/2” Hex Head Screws

#10 - 32 Rack Screws

QTY

DESCRIPTION

ASSEMBLY

1) Remove two (2) #10-32 rack screws securing

locking trim panel to SRSR base and set

aside. (FIGURE A)

2) Extend the sliding carriage on the SRSR base.

Product specificaties

Merk:	Middle Atlantic
Categorie:	Spiegelreflexcamera
Model:	SRSR-4-30
Kleur van het product:	Zwart
Breedte:	489 mm
Diepte:	487 mm
Hoogte:	1408 mm
Materiaal behuizing:	Staal
Maximale gewichtscapaciteit:	113 kg
Duurzaamheidscertificaten:	RoHS
Maat:	19 "
Rackcapaciteit:	30U
Code geharmoniseerd systeem (HS):	85389099
