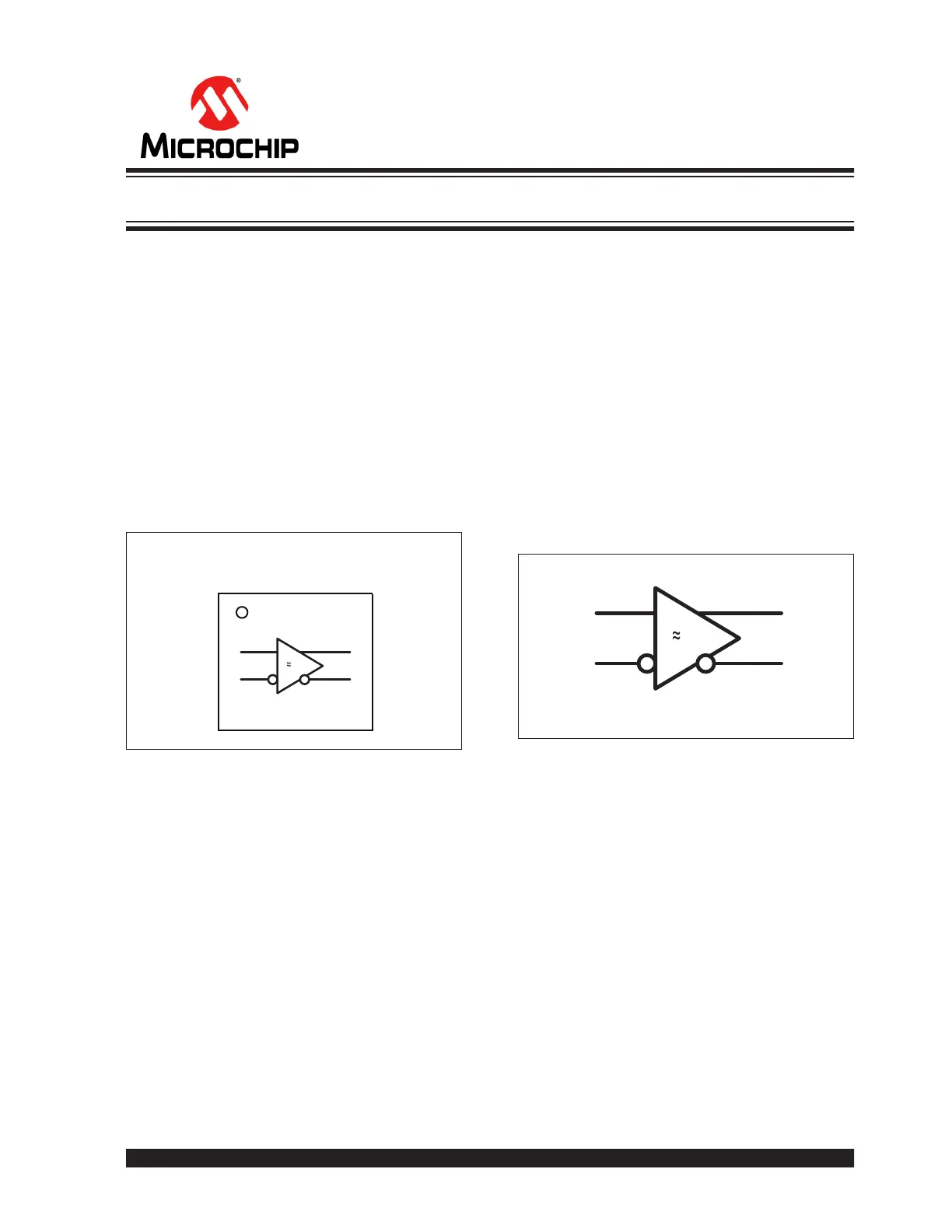

2019 Microchip Technology Inc.DS20006210B-page 1
SY89206V
Features
•Maximum Frequency >1.0 GHz
•3.3V and 5V Power Supply Options
•250 ps Typical Propagation Delay
•High Bandwidth Output Transitions
•Internal 75 kΩ Input Pull-Down Resistors
•100k PECL/ECL Compatible
•Open Input Default State
•Industrial Temperature Range: –40°C to +85°C
•Available in an Ultra-Small 8-Pin 2 mm x 2 mm
DFN Package
Package Type
SY89206V
8-Lead DFN
NC
D
/D
VBB
VCC
Q
/Q
VEE
1
2
3
4
8
7
6
5
A
V
40V/V
General Description
The SY89206V is a differential PECL/ECL
receiver/buffer in a space-saving (2 mm x 2 mm) DFN
package.
The device is functionally equivalent to the
SY100EL16V, but features a 70% smaller footprint.
The SY89206V provides a VBB output for either
single-ended
use or as a DC bias for AC-coupling to
the device. The VBB pin should be used only as a bias
for the SY89206V as its current sink/source capability
is limited. Whenever used, the VBB pin should be
bypassed with a 0.01 μF capacitor to VCC.
Under open input conditions (pulled to VEE), internal
input clamps will force the Q output LOW
.
Block Diagram
D
/D
Q
/Q
A
V
40V/V
3.3V/5V 1 GHz Differential PECL/ECL Receiver/Buffer
