 2004 Microchip Technology Inc.DS51491A-page 1

PROGRAMMING PIC10F2XX DEVICES WITH

THE BASELINE FLASH MICROCONTROLLER

PROGRAMMER (BFMP)

INTRODUCTION

The Baseline Flash Microcontroller Programmer (BFMP) together with the PICkit

™

1 Baseline Flash Programmer PC

application is designed to program baseline PIC10F2XX Flash devices.

PICkit

™

1 FIRMWARE REVISION 2.0.0.

When the PICkit1 PC application is executed with the BFMP connected to a USB port, the firmware version is displayed

in the bottom left corner of the interface window, as shown in Figure1. If “Firmware Version 2.0.0.” or greater is

displayed, the programmer is ready for use. If lower version number is displayed, disconnect any PICkit 1 Flash demo

boards connected to USB. If the interface window states that the programmer can not be found, check all connections

between the PC, any USB hubs and the BFMP.

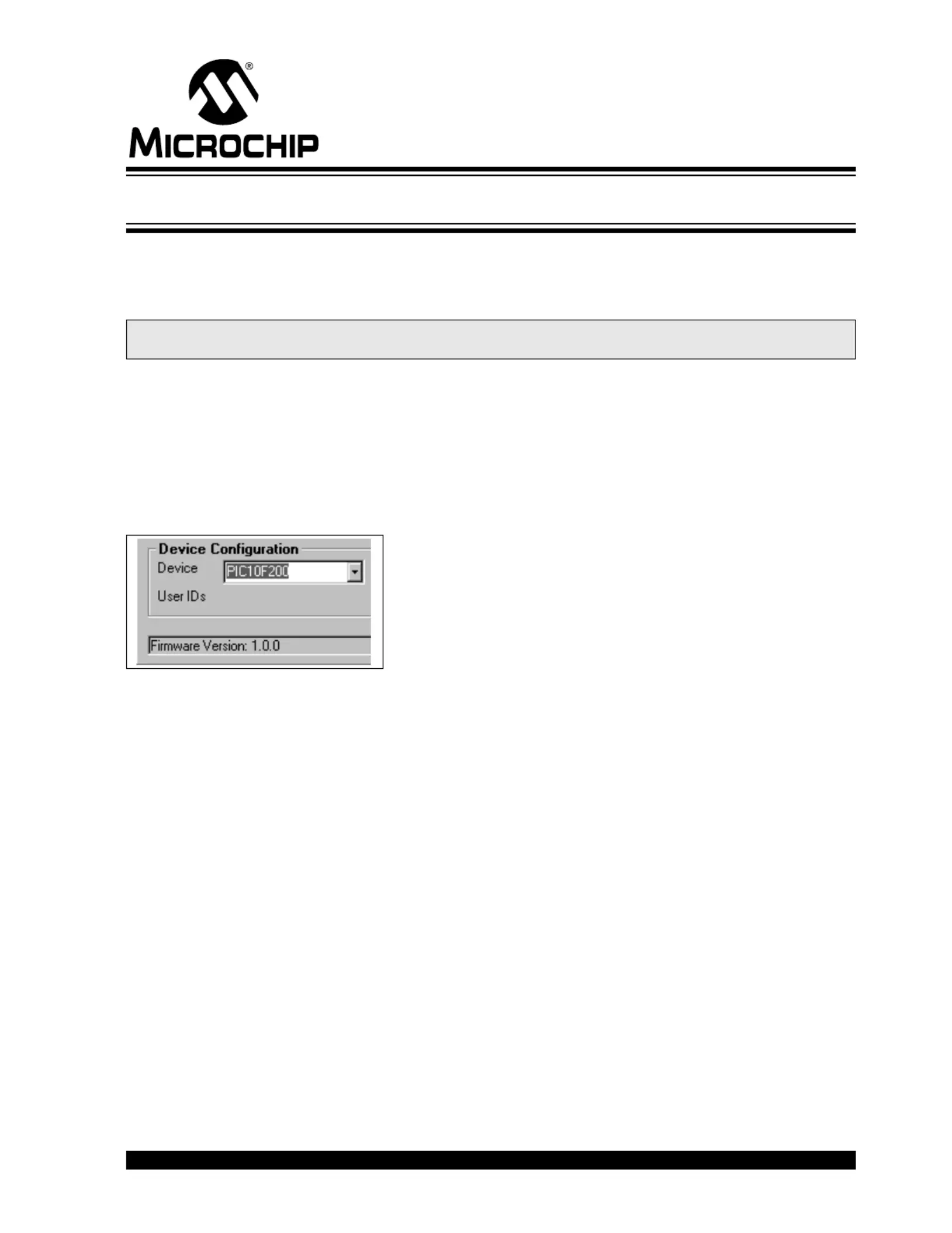

FIGURE 1:FIRMWARE VERSION

PIC10F2XX PROGRAMMING

The 6 and 8-pin PIC10F2XX devices require an adapter socket to connect the device to the 6-pin connector at the end

of the BFMP. The user can elect to purchase an adapter board from Microchip (see Universal Programming Adapter

below) or build one using the information in this document.

The procedure for programming a PIC10F2XX device is as follows:

1.Load the PICkit

1 Baseline Flash Programming PC application onto a PC with a Windows

®

98 SE or later

Operating System.

2.Connect the BFMP to the PC using a regular USB cable.

3.Connect the BFMP to the target device through the 6-pin connector on the BFMP, using an appropriate program-

ming adapter.

4.Start the PC application.

5.The application should correctly identify the BFMP firmware version. If not, remove any PICkit boards attached

to the PC and check all USB connections, then restart the application.

6.Select the appropriate device from the Device Configuration window (see Figure1).

7.Load the hex file using the pull-down File menu on the PC application toolbar.

8.Click on the Write device button.

9.The Progress Bar should grow from left to right until programming is complete.

10.Once programming is complete, the Status Bar should turn green.

11.If not, check all connections to the BFMP and the target device.

Note:The PICkit1 Baseline Flash Programming PC application can be downloaded from the Microchip

Technology Inc. web site at www.microchip.com.
