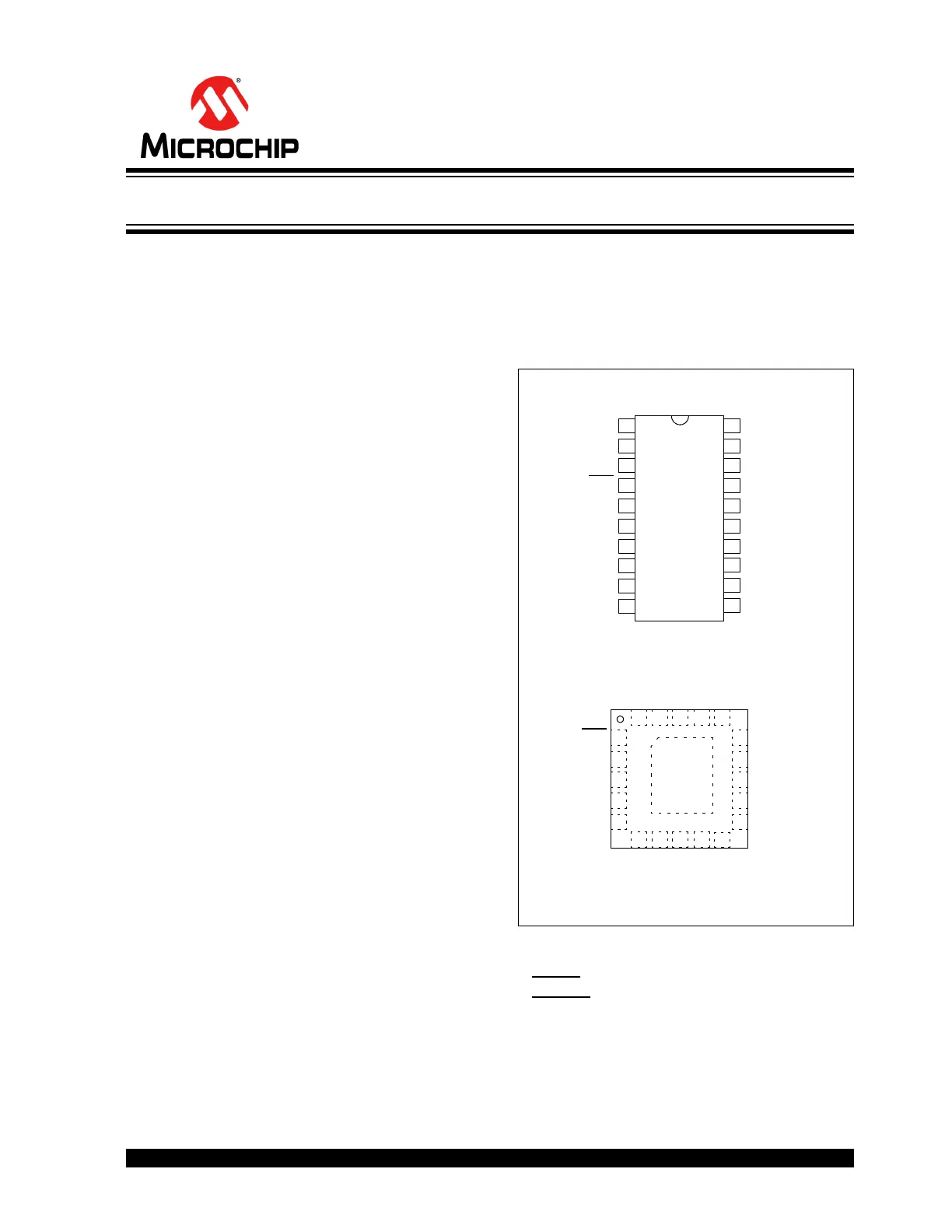

2011-2021 Microchip Technology Inc. and its subsidiariesDS20002288C-page 1
MCP2210
Features:
Universal Serial Bus (USB)
•Supports Full-Speed USB (12Mb/s)
•Human Interface Device (HID)
•128-Byte Buffer to Handle Data Throughput:
-64-byte transmit
-64-byte receive
•Fully Configurable VID, PID Assignments and
String Descriptor (factory programming also avail-
able)
•Bus Powered (factory default) or Self-Powered
(can be selected through special USB
commands)
•USB 2.0 Compliant
USB Driver and Software Support
•Uses Standard HID Drivers (built-in support on
Windows
®
XP, Vista, 7, 8, 10, Linux and Mac
OS
®
)
•Configuration Utility for Device’s Power-up
Configuration
•Utility for USB-SPI Communication, GPIO
Manipulation and Miscellaneous Features Usage
SPI Host Peripheral
•Supports All Four SPI Modes (Mode 0, 1, 2, 3)
•Bit Rates from 1500bps Up to 12Mbps
•Configurable Delays for SPI Transactions:
-Chip Select (assert) to 1
st
byte of data delay
-Data to data delay
-Data to Chip Select (de-assert) delay
•SPI Transactions Lengths of Up to 65535Bytes
Long
•Up to 8 Chip Select Lines – to be Used in Any
Combination for a Given SPI Transaction (the
Chip Select lines are shared between GPIOs and
alternate function pins; certain GPs – up to 8 of
them – can be assigned with the Chip Select
functionality)
General Purpose Input/Output (GPIO) Pins
•Eight General Purpose I/O Pins
•One Input Only Pin
EEPROM
•256Bytes of User EEPROM (accessible through
certain USB commands)
Package Types:
The device will be offered in the following packages:
•20-lead QFN (5 x 5 mm)
•20-lead SOIC
•20-lead SSOP
Other
•USB Activity LED Output
•SSPND
Output Pin (to signal USB Suspend state)
•USBCFG
Output Pin (indicates when the
enumeration is completed)
•Operating Voltage: 3.3-5.5V
•Oscillator Input: 12MHz
•Industrial Operating Temperature: -40°C to +85°C
•Passes Automotive AEC-Q100 Reliability Testing
2
MCP2210
SOIC,SSOP
OSC2
OSC1
RST
1
2
3
4
20
1
9
1
8
1
7
V
DD
V
SS
D+
D-
V
USB
GP0
5
1
6
GP8
GP1
6
15
GP2
7
14
GP6
GP7
MCP2210
5x5QFN*
GP1
GP2
RST
D-
V
USB
MOSI
GP8
GP4
SCK
GP5
GP7
OSC2
OSC1
V
DD
V
SS
GP0
EP
20
1
1
9
1
8
1
7
3
4
1
5
1
4
1
3
12
6789
21
1
3
1
2
1
1
MISO
GP5
SCK
GP3
8
MOSI
9
GP4
10
D+
1
6
GP3
GP6
5
11
MISO
10
* Includes Exposed Thermal Pad (EP); see Table1-1.
USB-to-SPI Protocol Converter with GPIO (Host Mode)
