Introduction

The ALT-5 is a 2 1/4” sunlight readable encoding altimeter and a wide range vertical speed indicator.

The altimeter contains an internal high accuracy 24 bit digital altitude sensor which calculates altitude from -1000 ft up to

a maximum of 35000 ft. The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input

transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc. The altimeter can display altitude in

feet or meters and local pressure can be set in millibars or inches of mercury

The VSI indicator can be displayed in either feet/minute (ft/min) or meters/second (m/s). The VSI can be calibrated by the

user once the instrument has been installed in the aircraft.

The ALT-5 also features a user settable altitude bug and an encoder test function. The ALT-5 provides a parallel Gillham

code interface when used in conjunction with the MGL Avionics CNV-ALT.

1 Features

•Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

•An internal high accuracy 24 bit digital altitude sensor calculates altitude from –1000 ft up to a maximum

of 35000 ft (-304m to 10668m)

•The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input

transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc.

•Provides a parallel Gillham code interface for transponders when used in combination with the MGL

Avionics CNV-ALT

•Built in encoder test function

•The altimeter can display altitude in feet or meters

•Local pressure can be set in millibars or inches of mercury

•Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10000 ft/min

•VSI units can be in feet/minute (ft/min) or in meters/second (m/s)

•User settable altitude bug

•Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

•Rotary control plus 2 independent buttons for easy menu navigation and user input

•Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection

for harsh electrical environments

•1 year limited warranty

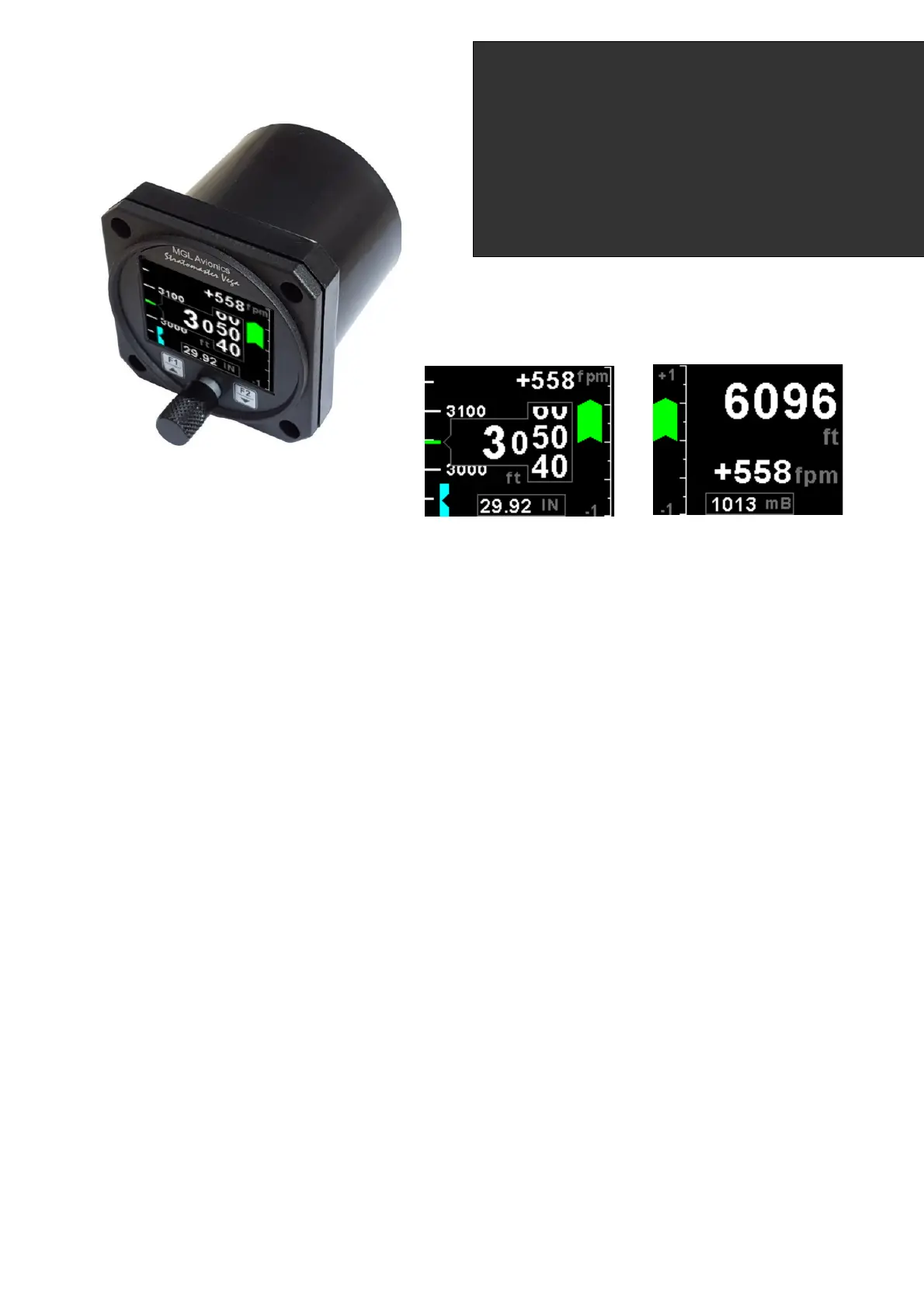

Vega ALT-5

Altimeter and Vertical Speed Indicator

with a transponder compatible serial

RS232 output

Operating Manual – English 1.00
