MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 12/18/24 INST99-7386B

INSTALLATION INSTRUCTIONS

99-7386B

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

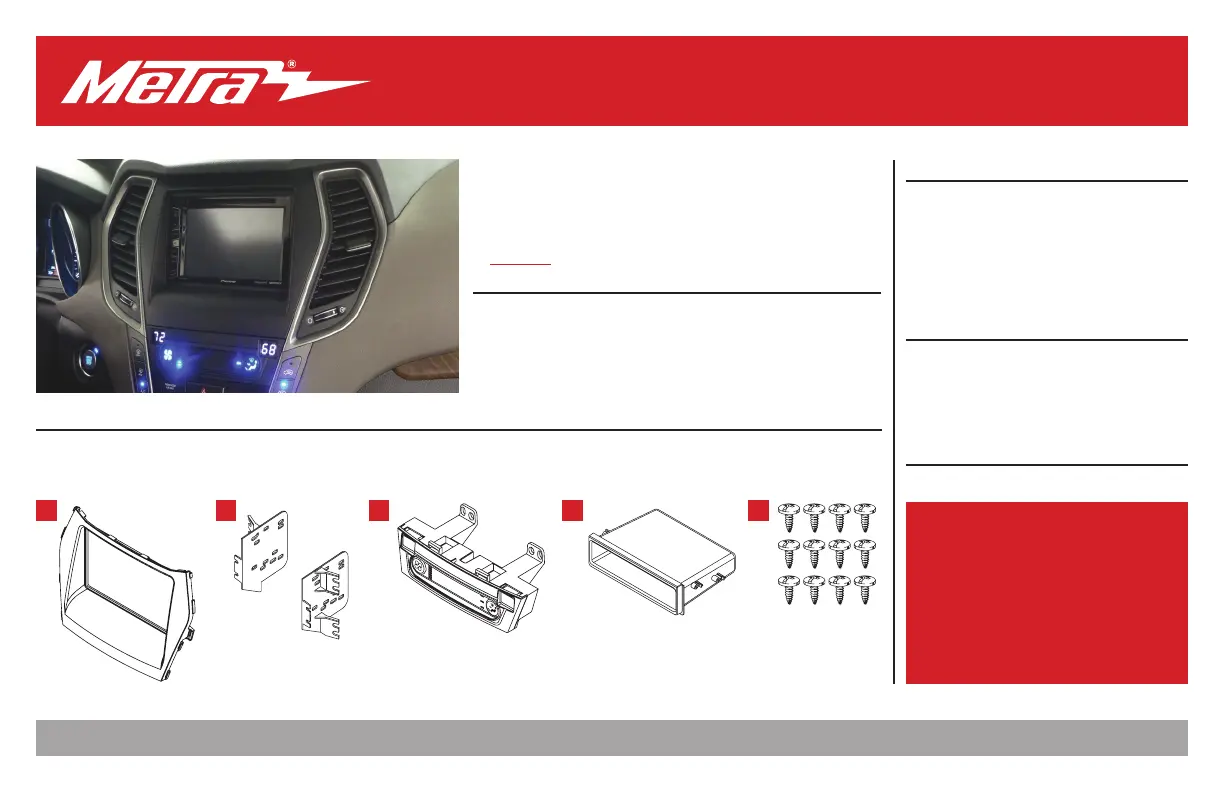

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Climate display • D) Pocket • E) #8 x 3/8” Phillips screws (12)

Not Shown: Wiring harnesses and antenna adapter NOTE: There are (2) 7386 harnesses. Harness A is for 2013-2016 models, B is for 2017-2019 models.

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

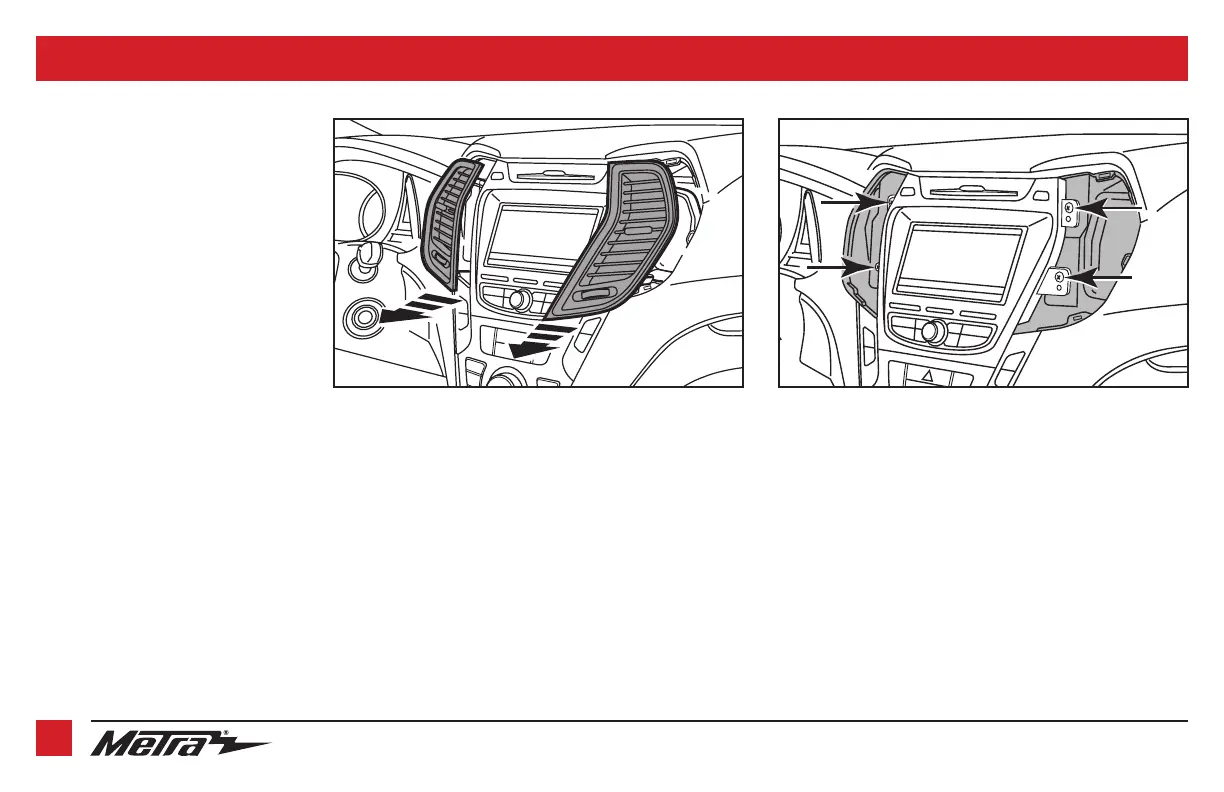

Dash Disassembly..................................................2

Kit Assembly

–ISO DIN radio provision with pocket.................. 3

–ISO DDIN radio provision .................................... 3

Axxess interface installation ................................4

Final Assembly...................................................... 11

WIRING & ANTENNA CONNECTIONS

(

Included with kit)

Wiring Harness: Axxess interface and wiring harness

Antenna Adapter

Steering wheel control interface

12v to 6v camera stepdown: AX-CAM6V

A B C D E

Fits Hyundai Santa Fe

(with factory NAV)

2013-2018

Santa Fe Sport

(with factory NAV )

2014-2018

Santa Fe XL

(with factory NAV )

2019

KIT FEATURES

• ISO DIN radio provision with pocket • ISO DDIN radio provision

• Includes Axxess interface for climate display and steering wheel functions

• Painted matte black

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications
