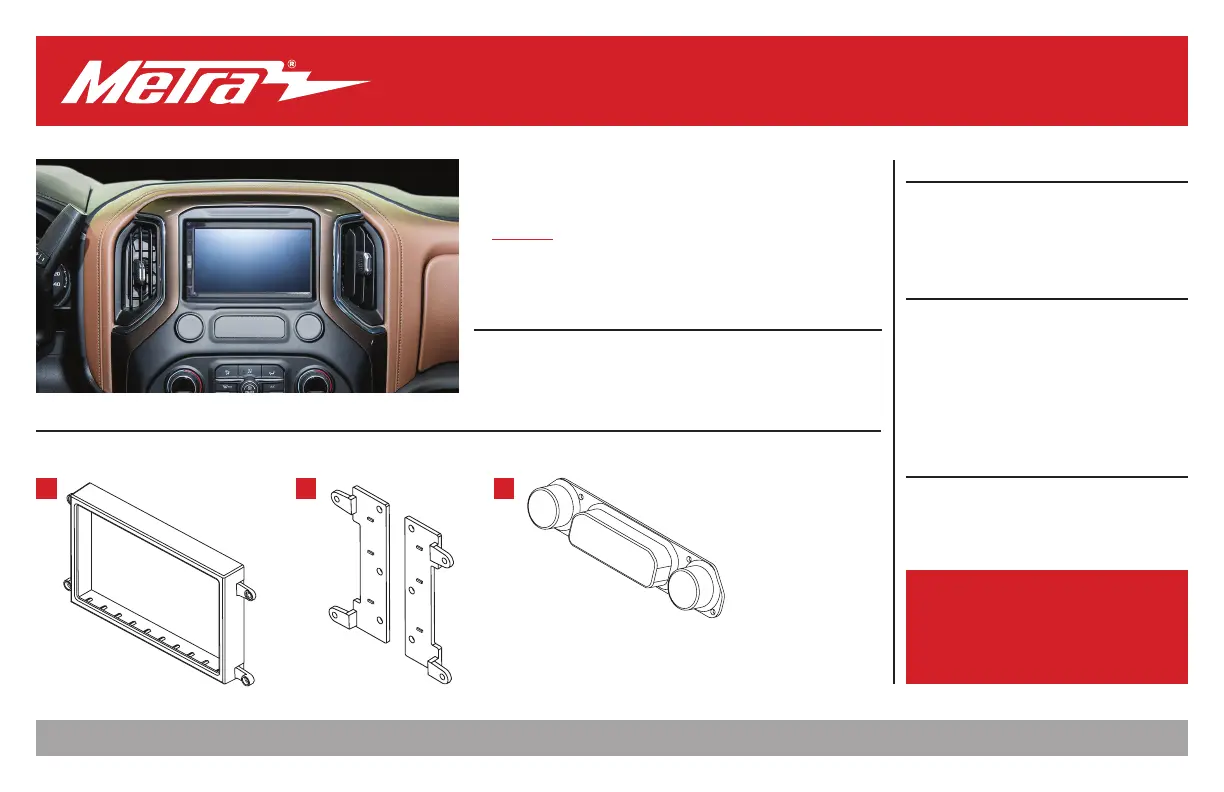

Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/1/20 INST107-GM4B
INSTALLATION INSTRUCTIONS
107-GM4B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent Pending
KIT FEATURES
• Designed specifically for the Pioneer DMH-C2550NEX and
DMH-C2500NEX radios
• Painted scratch resistant matte black to match the factory finish
KIT COMPONENTS
•A) Display screen housing • B) Display screen brackets • C) Blank-out panel
A B C
Chevrolet Silverado 1500
(†)
GMC Sierra 1500 (
†
) 2019-Up
Chevrolet Silverado2500/3500
(†)
, GMC Sierra 2500/3500 (
†
) 2020-Up
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications
(†) Models with a 2 knob 8-inch screen radio, RPO code IOS or IOT.
The RPO code can be found in the Vehicle Certification Label located on the inside of the driver’s door opening.
A mobile device with a QR scanner must be used to decipher the code.
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • T-15 Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly ................................................2-4
Kit Preparation......................................................... 5
Kit Assembly ............................................................ 6
WIRING & ANTENNA CONNECTIONS
Wiring Harness: AXTC-LN30 (‡) (sold separately)
Antenna Adapter: 40-EU55 (sold separately)
RGB Extension Cable: Pioneer part # CD-RGB150E
(not sold by Metra)
(‡) Non-amplified models only
MetraOnline.com
2
DASH DISASSEMBLY

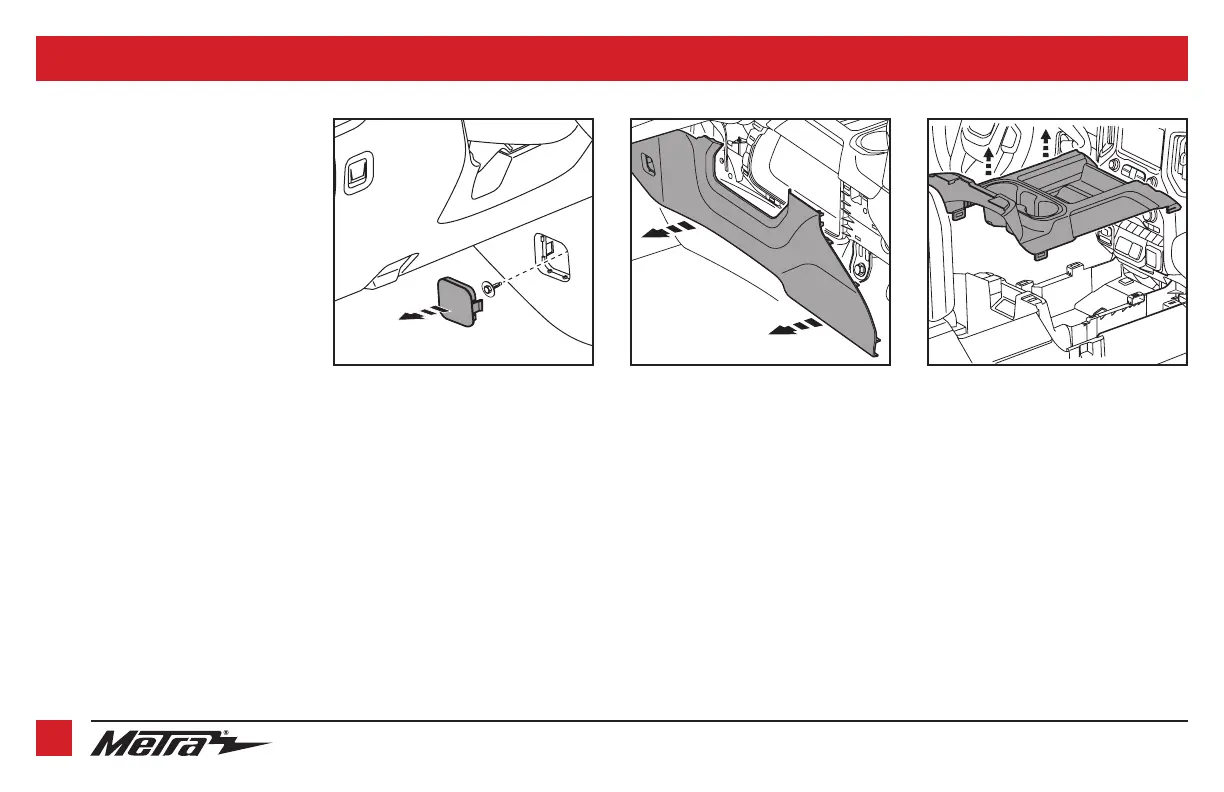

For models with a full center console:
1. Unclip the screw cover from the driver’s
side of the center console, then remove
(1) 9/32” screw exposed. (Figure A)
2. Starting from the rear, unclip and
remove the center console trim panel
from each side of the center console.
(Figure B)
3. Starting from the rear, unclip and
remove the cup holder panel. (Figure C)
Continued on the next page
(Figure B) (Figure C) (Figure A)
