LED Explanation

Model: MS106LP/MS106P/MS106GP/MS110GMP/MS112GMP

Quick Installation Guide

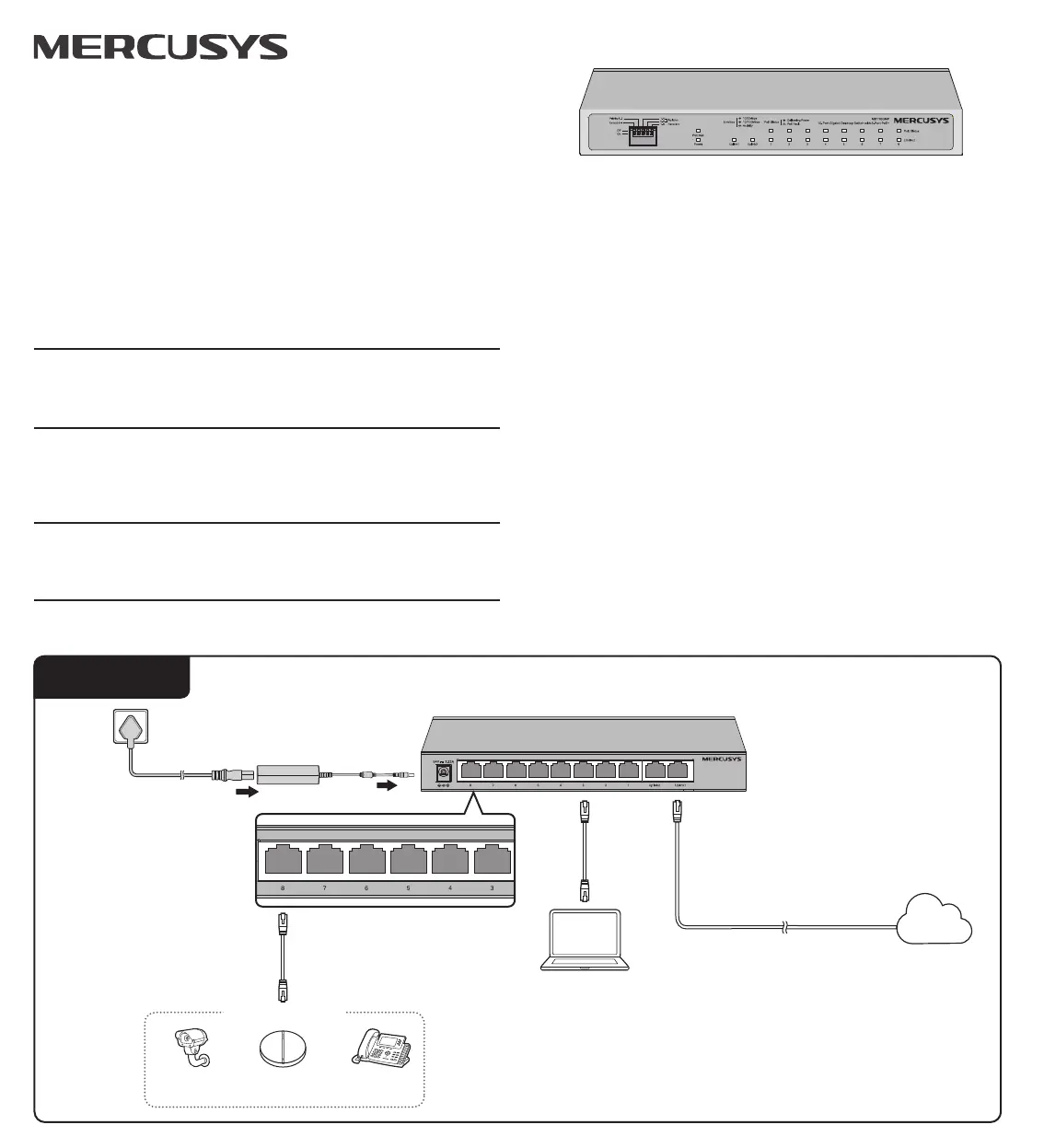

Connection

PC

PoE Ports

1. PoE ports can also connect to non-PoE devices, but only transmit data.

2. Non-PoE ports (ports 5-6 of MS106LP/MS106P/MS106GP and uplink ports of

MS110GMP/MS112GMP) are recommended to connect to uplink devices like gateways.

3. By default, ports 1-2 of MS106LP/MS106P/MS106GP/MS112GMP have higher priority than

other ports in transmitting data if network congestion occurs. It is recommended to connect

key network devices (network cameras, APs, etc.) to ports 1-2.

4. The SFP slot of MS112GMP needs to work with a gigabit SFP module.

Notes:

Internet

IP CameraAPIP Phone

Powered Device (PD)

Power

On: The power is on

O: The power is o

Link/Act Status

On: Link present but no activity

Flashing: Transmitting or receiving data

O: No link

PoE Status

On: Providing PoE power

O: Not providing PoE power

Link/Act; Uplink

Green On: Running at 1000 Mbps, but no

activity.

Green Flashing: Running at 1000 Mbps and

transmitting/receiving data.

Yellow On: Running at 10/100 Mbps, but no

activity.

Yellow Flashing: Running at 10/100 Mbps and

transmitting/receiving data.

O: No link

DIP Switch Explanation

O: Ports run at 1000/100/10 Mbps (100/10 Mbps for MS106LP and MS106P) and

support PoE power supply up to 100m away.

On: Ports run at 10 Mbps and support PoE power supply up to 250m away.

Extend(For all models)

O: The PoE Auto Recovery function is disabled.

On: The switch will constantly detect the working status of a PoE powered device (PD).

When the switch nds that the PD works abnormally, the switch will reboot it.

Recovery(For all models)

O: Ports can transmit data with each other.

On: The isolated ports cannot transmit data with each other. They can transmit data only

with the uplink ports (ports 5-6 of MS106LP/MS106P/MS106GP and uplink ports of

MS110GMP/MS112GMP).

Isolation(For all models)

O: All the ports transmit data with the same priority.

On: The specic ports transmit data with a higher priority than other ports.

Priority(Only for MS110GMP)
