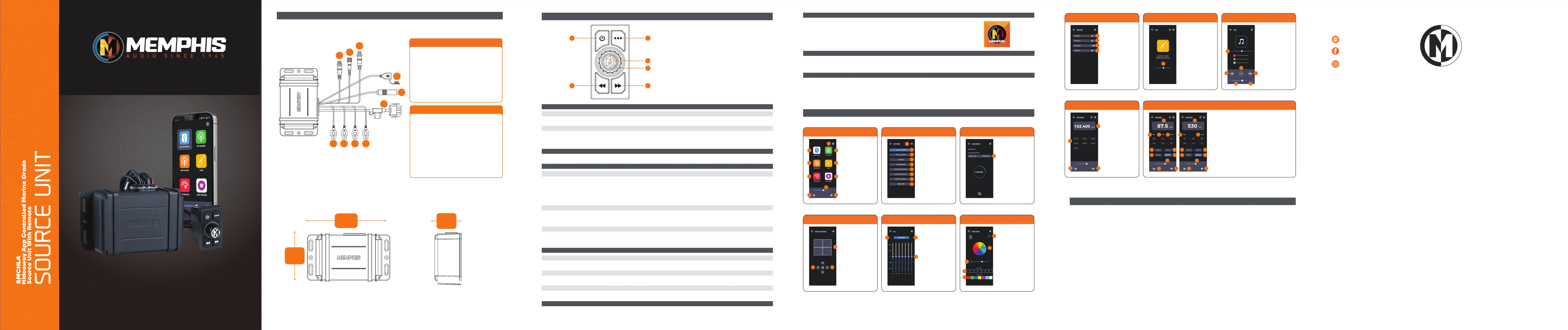

INSTALLATION OVERVIEW

6.8”

172MM

2.2”

53.9MM

3.9”

99MM

POWER/AUDIO OUTPUTS

CONNECTIONS

Red// 12V+ Ignition

Black // Ground

Blue // Amp  Antenna Turn on

Yellow // B+ Battery

White & Black // Le Front Speaker (-) Zone 1

White // Le Front Speaker (+) Zone1

Grey & Black // Right Front Speaker (-) Zone 1

Grey // Right Front Speaker (+) Zone1

Green  Black // Le Rear Speaker (-) Zone 1

Green // Le Rear Speaker (+) Zone1

Purple  Black // Right Rear Speaker (-) Zone 1

Purple // Right Rear Speaker (+) Zone 1

*CHECK AVAILABLE MOUNTING AREA PRIOR TO CUTTING OR MOUNTING.

The unit's width is 99mm, but you must leave enough space for wires and connections. Before mounting,

check your installation location to ensure there is adequate room for both the unit and its wiring. Always

verify your mounting position before drilling or installing to prevent damage to your vehicle.

BUTTON FUNCTIONS

1.POWER/SOURCE

2. SOFT KEY (•••)

3. BACK ARROW

4. FORWARD ARROW

5. PUSH ROTARY KNOB

6. VOLUME UP/DOWN

CONTROLS

POWER/SOURCE BUTTON

POWER ON:

SHORT PRESS to power unit ON. LONG PRESS for 2 seconds to power unit OFF.

SOURCE SELECTION:

When unit is ON, short press to scroll through available sources, color changes with sources.

Source colors are as follows: Bluetooth (BLUE), FM (RED), AM (PINK), AUX (GREEN), WB (YELLOW), USB (CYAN)

SOFT KEY (•••)

RADIO MODE:

CONTACT

TECH SUPPORT

800-903-6979

SHOW US YOUR INSTALL

WWW.MEMPHISCARAUDIO.USA

@MEMPHISCARAUDIO

@MEMPHISCARAUDIOUSA

Turn the knob le or right to raise or lower volume.

VOLUME UP/DOWN

1

2

3

4

5

6

1098

7

1

34

2

5

6

1. Positive Trigger

2. RGB Led

3. Wired Remote

4. USB*

*USB Is thumb drive and charge only, no phone data connection

5. Radio Antenna

6. Power/Audio Outputs

7. Green RCA / SUB (Zone 2)

8. Red RCA / Rear (Zone 1)

9. White RCA / Front (Zone 1)

10. Black RCA / AUX IN

SHORT PRESS to turn on/off the RGB light. LONG PRESS to turn on/off Trigger 1

BACK/FORWARD ARROWS

In the App you can set your SHORT PRESS to tune stations in the following ways in the FM Settings or AM Settings Menu:

MANUAL TUNE, SEEK TUNE, or PRESET TUNE. Set the function in the app.

SHORT PRESS Back arrow tunes Backward based on your selection in the app, LONG PRESS will ALWAYS Seek backwards.

SHORT PRESS Forward arrow tunes Forward based on your selection in the app, LONG PRESS will ALWAYS Seek Forward.

USB MODE:

SHORT PRESS Back arrow skips to previous song, LONG PRESS Rewinds through song.

SHORT PRESS Forward arrow skips to next song, LONG PRESS Fastforwards through song.

SHORT PRESS Back arrow skips to previous song.

SHORT PRESS Forward arrow skips to next song.

PUSH ROTARY KNOB

Short press to mute.

Short press to pause/play.

BT MODE:

Short press to pause/play.

MA

MEDIA ACCESSORY

BT MODE:

RADIO MODE:

USB MODE:

SMCHLA

TRIGGER OUTPUTS

Trigger 1:

Trigger 2:

Trigger 3:

Trigger 4:

Orange

Blue

White

Black

Trigger wires can be used to add additional

accessories and send a 12-volt signal to turn them on.

Trigger 1 can be controlled using the sokey on the

remote, while Triggers 1–4 can be controlled through

the app interface—making it easy to add and manage

multiple accessories on your machine.

Note: 200mA max output per trigger.

M

M

M

M

Downloading Memphis Command App

The MEMPHIS COMMAND APP is available on iOS & Android in the app store. Search for

“MEMPHIS COMMAND” and locate the MEMPHIS COMMAND APP. Download and

install the app to begin controlling your SMCHLA.

WARRANTY

Electronics limited warranty (including Memphis accessories) When purchased from an Authorized Memphis Dealer,

Memphis warrants this product to be free from defects in material and workmanship under normal use for a period of

ONE (1) YEAR from date of original purchase (receipt required),THREE (3)YEARS years if installed by an authorized

Memphis dealer (receipt required). If this product is identified as “Refurbished” or “B Goods”, the warranty is limited to

a period of THREE (3) MONTHS from date of original purchase. In all cases you must have the original receipt. Should

service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the

warranty period, Memphis will repair or replace (at its discretion) the defective merchandise with equivalent

merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be

replaced with more current equivalent products. Warranty is valid only for the original purchaser and is not extended

to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in

duration to a period of the express warranty as provided herein beginning with the date of the original purchase at

retail, and no warranties, whether express or implied, shall apply to this product thereaer. NOTE: This equipment has

been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver. Connect the equipment into an outlet or a circuit

different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

WARRANTY

Bluetooth Pairing (Audio Streaming Only)

When unit is powered on, search for Bluetooth Devices. Look for SMCHLA Audio on your Bluetooth Device. Select this device to

pair with the SMCHLA SMCHLA unit. When connected via Bluetooth you can stream music to your unit.

Bluetooth Pairing The APP

To control you SMCHLA MEMPHIS COMMAND APPunits settings and radio stations via the , you must establish a Bluetooth

connection using the MEMPHIS COMMAND APP. Open the BLUETOOTH SETTINGS menu on the MEMPHIS COMMAND APP and

follow the instructions on the next page to pair your MEMPHIS COMMAND APPSMCHLA with you unit.

APP INSTRUCTIONS

Main Menu/Source Selection

1

2

3

45

67

8

9

10

1. Settings

2. Bluetooth Source

3. FM Radio Source

4. AM Radio Source

5. AUX Source

6. WB Radio Source

7. Adjust LED Color

8. Previous Track

9. Next Track

10. Volume Control

1

2

3

4

5

6

7

8

9

1. ZONE 1 Control

Volume Control

EQ Menu

2. ZONE 2 Control

Volume Control

EQ Menu

3. Trigger

4. Radio Region

5. Bluetooth Setting

6. Adjust LED Color

Setting

7. Restore Default

Setting

8. APP Version

Information

9. Back to Home

1

Settings

Use this menu to

connect your MEMPHIS

COMMAND APP via

Bluetooth to your

SMCHLA unit.

This connection allows

the MEMPHIS

COMMAND APP to

control your SMCHLA.

You should only

have to make this

connection once to

pair the MEMPHIS

COMMAND APP to the

SMCHLA.

1. Connect to SMCHLA

via Bluetooth

Bluetooth Settings Menu

1. Slide the center

block Forward/

Backward/Le/

Right to adjust the

volume of the

speakers

2. You can also tap

the Up/Down/Le/

Right arrow ">"

icons to adjust the

volume

3. Click the center

point to restore

the default value

Fade/Balance Menu

1

2

3

1. EQ Selection: Click

the le arrow to

switch settings

2. EQ Selection: Click

the right arrow to

switch settings

3. Manual EQ

Adjustment:

Customize the gain

of different

frequency points

EQ Settings Menu

12

3

1. Turns the LED light

on/off

2. Use the wheel to

select your LED

color. Touch the

wheel and slide the

indicator point to

the desired color

3. You can adjust the

brightness using

the slider

4. Long press the

small square for 2

seconds to save the

current light color

5. Click the small

square to switch

colors

LED Color Settings Menu

1

2

3

4

5

Trigger Settings Menu

1

2

3

4

1. Turns Trigger 1

on/off

2. Turns Trigger 2

on/off

3. Turns Trigger 3

on/off

4. Turns Trigger 4

on/off

1

1. Slide to adjust the

volume level

1

AUX Source Screen

1. Seek Bar

2. Previous Track

3. Pause

4. Next Track

5. Switch modes:

Sequential Play/

Loop Play/Shuffle

Play

6. Slide to adjust the

volume level

USB Source Screen

1. Indicates current

frequency

2. Manually tap to

select a frequency

3. Tap to cycle to the

previous frequency

4. Tap to cycle to the

next frequency

WB Source Screen

1

2

3

1. Indicates current frequency

2. Tapping highlights SEEK, then use buttons 7/8 to

auto-scan and stop at stations

3. Tapping highlights APS to start auto-scanning &

saving stations. Tap again during scanning to stop

immediately

4. Tapping highlights PRESET, then use buttons 7/8 to

browse saved stations.

5. Tapping highlights MANUAL, then use buttons 7/8

to tune frequencies manually

6. Slide to adjust the volume level

9. Tap FM1/FM2/FM3 (buttons 9/10/11) to access 6

preset stations under each frequency bank

Note: FM and AM functions are the same.

On the AM Radio screen, tap AM1/AM2 (buttons

9/10) to access 6 preset stations under each

frequency bank.

FM/AM Source Screen

1

23

5

24

3

5

6

4

4

6

78

9

1011

1

10

23

4

5

6

78

9
