Accessory for EGIL, EGIL200, TM1700 and

TM1800

Enables resistance measurement on circuit

breakers

Small and light weight

Time saving quick connectors for current cables

Hook up close to the test object to maximise test

current and minimise cable weight

Flexible current cables even at low temperatures

Up to 200 A initial test current per channel

DESCRIPTION

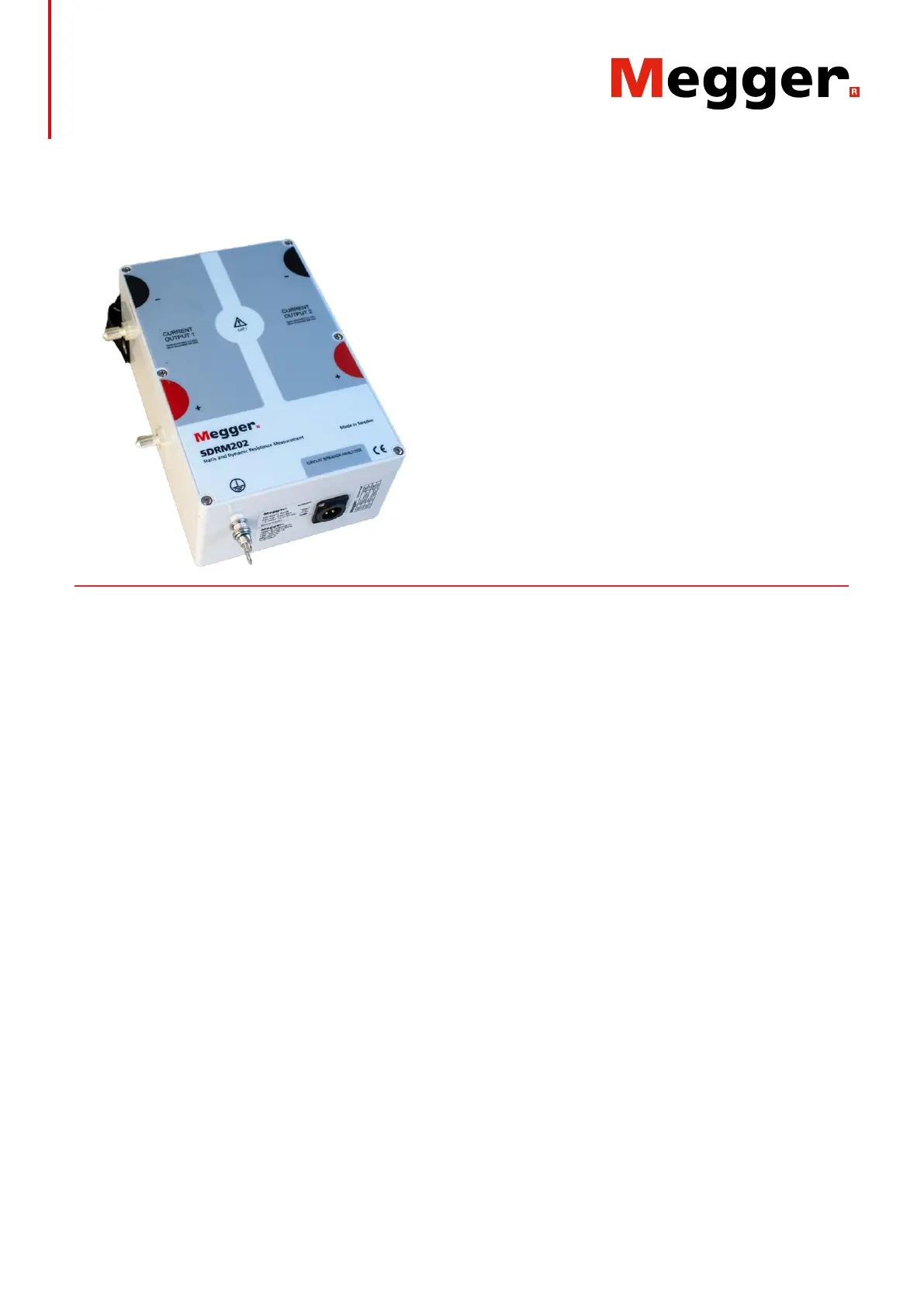

The SDRM202 is an accessory for the circuit breaker analysers

TM1800, TM1700, EGIL200 and EGIL.



The EGIL must be equipped with the SDRM option, and

the required PC software CABA Win need to have version

R03A or higher



EGIL200 must have the SDRM or Plus software license to

be able to run SRM and DRM



EGIL213 manages simultaneous three-phasemeasurement

on one break per phase or phase wise measurement on

up to three breaks per phase



EGIL211, EGIL223 and EGIL243 manages measurement on

one break at a time

The SDRM202 is intended to use for both static and dynamic

resistance measurements (SRM and DRM) on high voltage circuit

breakers or other low resistive devices. Used together with TM1800,

TM1700, EGIL200 or EGIL the current through, and the voltage drop

across the circuit breaker contacts, are measured. The measuring unit

can thus calculate the resistance as a function of time.

A system consists of an SDRM202 unit with current cables and an

SDRM cable which comes in two versions, for TM1800/TM1700/

EGIL200 and EGIL respectively. The SDRM Cable is a small box with

integrated cables for connection to the SDRM202 and to TM1800,

TM1700, EGIL200 or EGIL.

The SDRM202 has two current sources which allows simultaneous

resistance measurement on two breaks provided that the connected

breaker analyser has the number of channels required.

SDRM202

Static and dynamic resistance measurement
