Additional Guide for 15.5" Pedestal Installation assistance
1
Follow instructions below to assist in attaching all four (4) fasteners to install 15.5" Pedestal to Washer or Dryer.
Tools needed:
nDrill Machine with 3/16" drill bit.
n1/4" hex-head ratchet or 5/16" open ended wrench.
Rework Procedure:

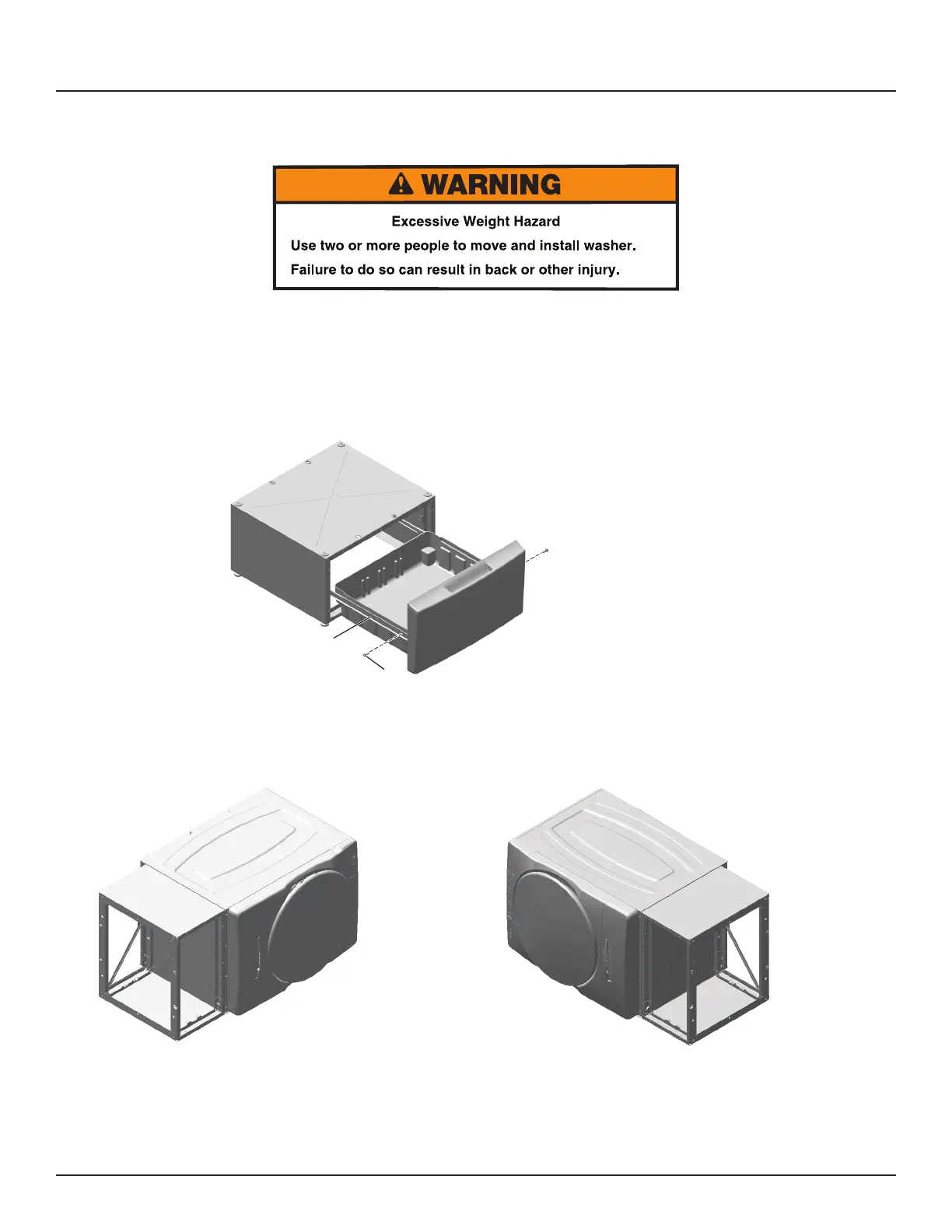

1. Empty the Pedestal Drawer.
2. Remove the Pedestal Drawer as per Installation Instruction document (Refer Below Image).
3. Remove any dispenser or bulk dispenser before laying the unit down to help prevent/minimize spillage.
4. Tilt the Wash Unit with Pedestal assembly gently on one side and lay it down as shown in the below images.
A
B
DO NOT LAY DOWN WASHER AS
SHOWN IN THE ABOVE IMAGE
LAY DOWN WASHER AS SHOWN
IN THE ABOVE IMAGE
A. Drawer slide
B. Hex-head screw
W11687988A
Pedestal Installation:
Remove pedestal drawer
A
B
