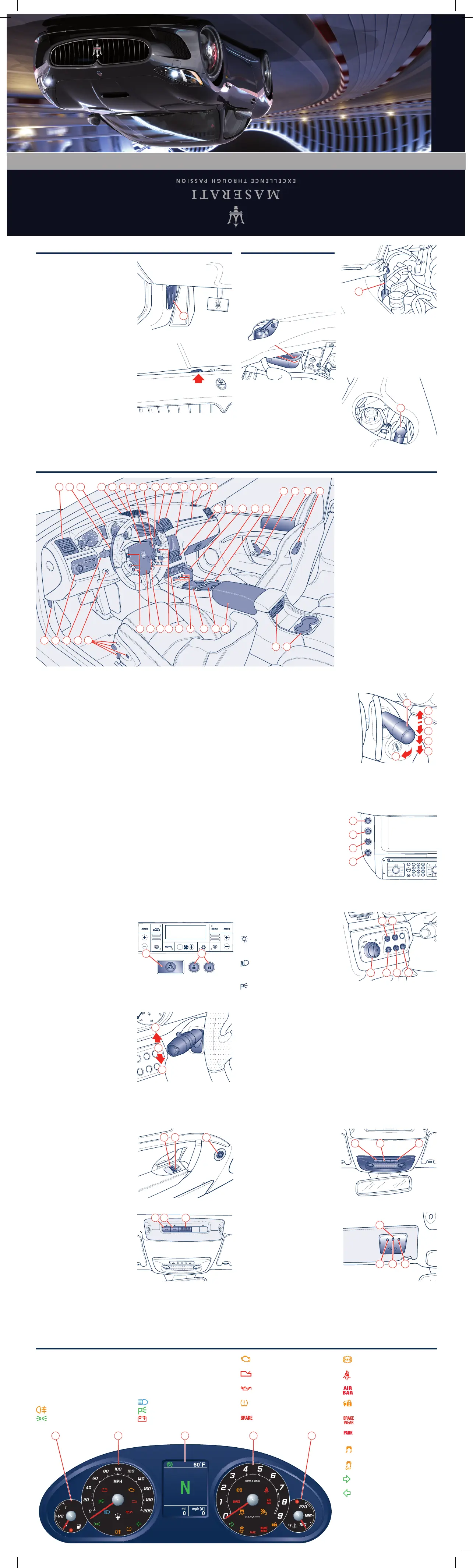

MASERATI GRANTURISMO MC

QUICK REFERENCE GUIDE

ABC

D

1

36353433

3128

26

27

2423

30

32

236789101113141

1615

12

19

1823

202221

54

2929

17

23

25

12345

EOBD engine control system

failure warning light.

Gearbox failure warning

light.

Low oil pressure warning

light.

Low tire pressure warning

light (TPMS).

Low brake fluid warning

light.

Engine coolant

The fluid level must be checked

with the engine cold and must

be between the MIN and MAX

reference notches visible on the

tank.

Windshield/headlight washer

fluid

For topping up, open the

tank cap B, extract the filler

neck extension and pour in a

detergent and water mixture,

in the proportions indicated on

the bottle.

14)Side window vents.

15)Multi Media System Controls.

16)Glove compartment.

17)Automatic gearshift lever.

18) Ashtray and cigarette lighter.

19)Internal passenger’s door opening handle.

20)Passenger’s door power window control.

21)Passenger’s door-mounted side airbag.

22)Passenger seatback tilting lever.

23)Beverage holder.

24)Air conditioning rear vents.

25)Pocket-change compartment.

26)Electric parking brake engagement/disengagement lever.

27)Buttons underneath the air conditioning controls.

28)Air conditioning and heating system controls.

29)Multi Media System Controls on the steering wheel.

30)Starter/steering wheel lock switch.

31)Horn control.

32)Seat adjustment controls.

33)Steering wheel height and depth adjustment control.

34)Lever controlling cruise control, direction indicators, high

beams and flashing headlights.

35)Controls to the left of the steering wheel.

36)Engine compartment lid opening lever.

Ref. 35 Controls to the left of the steering wheel

A)Headlight switch.

The lever has 5 positions:

0 – DRL (*) ON (if enabled);

– LED position lights, side

marker and license plate

lights ON;

– low beam lights, LED

position lights, side marker

and license plate lights ON;

– parking lights ON;

AUTO – automatic activation and deactivation of the external

lights, depending on the light outside.

B)Fuel tank door opening button.

C)Luggage compartment lid opening button.

D)MODE control to select screens on the instrument panel

display.

E)Instrument panel brightness control (UP).

F)Instrument panel brightness control (DOWN).

(*) On vehicles for the Canadian market DRL are always enabled.

INSTRUMENT PANEL

Ref. 34 Lever controlling cruise control, direction indicators, high

beams and flashing headlights

Lever at center position B:

direction indicators and high

beams off.

Lever up C: right-hand direction

indicators on.

Lever down D: left-hand

direction indicators on.

Lever pushed forward: high-

beams on (with low beams on).

Lever pulled backward (non-

permanent position): to flash

the headlights using the high beams.

Controls on driver’s door

A)Front left-hand power

window control.

B)Front right-hand power

window control.

C)External rear-view mirror

controls.

INSTRUMENT PANEL

ABS system failure warning

light.

Front seat belt

warning

light.

Airbag/pretensioner failure

warning light.

Maserati CODE system

warning light.

Brake pads worn warning

light.

Parking brake engagement

warning light.

ESC system malfunction

warning light.

Overriding the ESC system

warning light.

Right-hand direction

indicator warning light.

Left-hand direction indicator

warning light.

OPENING THE ENGINE COMPARTMENT LIDCHECKING THE FLUID LEVELS

Engine oil

The level must be checked

when the engine is hot and the

vehicle is level.

The oil level must be between

the MIN and MAX reference

notches on the dipstick A.

To unlock the engine

compartment lid, pull the lever

A found in the lower, left-hand

side of the dashboard.

Release the safety device by

pulling lever B, located to the

right of the front grille.

Lift the lid: this operation is

facilitated by two gas struts.

The engine lid positions itself at

the maximum opening position

and does not require support

stays.

To close the lid, let it drop

when it is about 8 in. (20 cm)

from the engine compartment:

it will lock automatically.

Controls on inside roof

A)Anti-lift alarm system

deactivation button.

B)Alarm system motion

sensor deactivation button.

C)Telephone hands-free

microphone.

Controls on front dome light

A)LH side light switch.

B)Central light switch.

C)RH side light switch.

List of controls and accessories

1)Air conditioning side vents.

2)Lower gearshift paddle

"DOWN".

3)Instrument panel.

4)Air conditioning upper

vent.

5)Sun radiation sensor.

6)Driver’s airbag.

7) Windshield/headlight

wiper/washer control lever.

8)Buttons to the left of

the Multi Media System

Display.

9)Upper gearshift paddle

"UP".

10) Clock.

11)Central air-conditioning

vents.

12)Multi Media System

Display.

13)Passenger’s airbag.

Ref. 7 Windshield/headlight wipers/washer control lever

A)Windshield wipers off.

B)Automatic operation,

using the end section

F the frequency of the

intermittent operation can

be adjusted.

C)Continuous slow operation.

D)Continuous fast operation.

E)Fast temporary operation

(non-permanent position).

G)Lever pulled backward (non-permanent position): windshield

washer on and (if the headlights are on) headlight washer on.

Ref. 8 Buttons to the left of the Multi Media System Display

A)SPORT mode button.

B)Low grip mode button ICE

C)PARK OFF function control

(overriding/activating EPB).

D)ESC OFF system

deactivation button.

Ref. 27 Buttons underneath the air conditioning controls

A)Hazard light button.

B)Door lock/unlock button.

List of warning lights

Rear fog light warning light.

Parking light/low beam

warning light.

High beam warning light.

Parking light warning light.

Alternator failure warning

light.

1)Fuel level gauge and low fuel indicator.

2) Speedometer.

3) Display.

4)Electronic tachometer.

5)Coolant thermometer and high temperature warning light.

Home link

This allows the driver to

operate automatic opening

devices for the main door and

the garage and to switch on

the house lighting or alarms,

all from inside the vehicle. It is

composed of three buttons A,

B, and C and a signal lamp D.
