Product Overview

Features

Standard Accessories

Optional Accessories

Electrical Specifications

Mechanical Specifications

Faceplate Cleaning

Operational Setup

Input Connectors

Switch Settings, Adjustments and Indicators

Pixel to Pixel Function

Menu Functions

Warranty

1

2

3

4

5

6

7

8

Marshall Electronics

1910 East Maple Ave.

El Segundo, CA 90245

Tel.: 800-800-6608 • 310-333-0606

Fax: 310-333-0688

www.LCDRacks.com

Email: [email protected]

V

V

V

V-R84DP-2SDI

-R84DP-2SDI

-R84DP-2SDI

-R84DP-2SDIV-R84DP-2SDI

Users

Users

Users

Users Guide

Guide

Guide

Guide

Users Guide

Marshall Electronics warranties to the first consumer, that this V-R84DP-2SDI portable monitor will, under normal use, be free from defects

in workmanship and materials, when received in its original container, for a period of one year from the purchase date.

This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of pur-

chase provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor

and parts may be charged to you.

This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifica-

tions in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any war-

ranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time

period described above.

Due to constant effort to improve products and product features, specifications may change without notice.

10

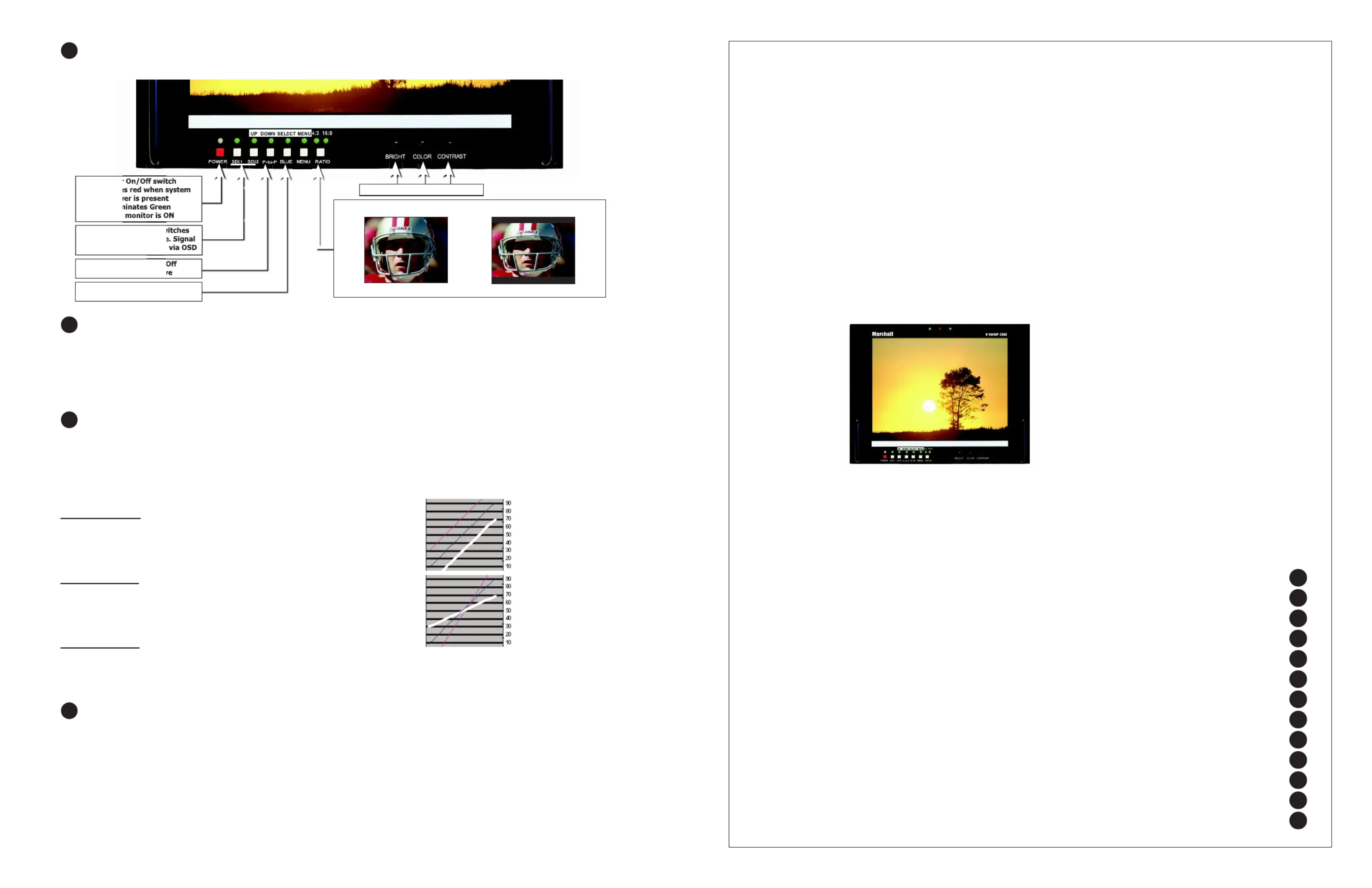

Switch Settings, Adjustments and Indicators

Power

Illuminate

pow

Illum

when

SDI signal selector sw

Illuminates when active

format will be displayed

Pixel to Pixel On/O

Lights when activ

Screen aspect ratio switch 4:3 or 16:9 selector and indicators

4:3 Aspect 16:9 Aspect

Image Adjustment Controls

9

10

11

Blue Gun On/Off

Lights when active

As the native LCD display is 800 pixels wide by 600 pixels high, it is necessary to change the size of the image to fill the whole screen.

Pixel to Pixel mode bypasses the enlargement or scaling function and displays the native incoming format.

For 525-NTSC based images, pixel to pixel will appear as a 480x640 (4:3 aspect) or 480x720 (16:9 aspect) display.

For 625-PAL based images, pixel to pixel will appear as a 576x640 (4:3 aspect) or 576x720 (16:9 aspect) display.

Bias Adjustment

Press Up Dn(P-P), (Blue), to navigate.

Press Select (Ratio) to activate.

Press Select to toggle R, G, or B

Press Up, Dn,to change value.

Press Menuto exit

Turn On/Off with Menu button.

Use Up (P-P), Dn (Blue), and Select (Ratio) for menu navigation functions.

Color Temperature – Select D65 or User. User mode will automatically be turned on if Gain or Bias are adjusted.

Adj Color Gain – Select to adjust RGB gains.

Adj Color Bias – Select to adjust RGB bias

OSD– Toggle OSD on/off.

Version Number– Display only

Gain Adjustment

Press Up Dn(P-P), (Blue), to navigate.

Press Select (Ratio) to activate.

Press Select to toggle R, G, or B

Press Up, Dn,to change value.

Press Menuto exit

Chart legend: Left Line = Increase of gain

Center Line = D65 (Default)

Right Line = Decrease of gain

Chart legend: Right Line = Increase of Bias

Center Line = D65 (Default)

Left Line = Decrease of Bias

OSD Adjustment

Press UpDn (P-P), (Blue), to navigate.

Press Select (Ratio) to toggle OSD On/Off

11

Pixel to Pixel Function (Under scan)

12

Menu Functions

13

Warranty

12

13

Version 2009-0515
