Pagina 1/16
PRODUCT CODE
VERSION
DATE
: MFX1501
: 1.0
: 22.11.2019

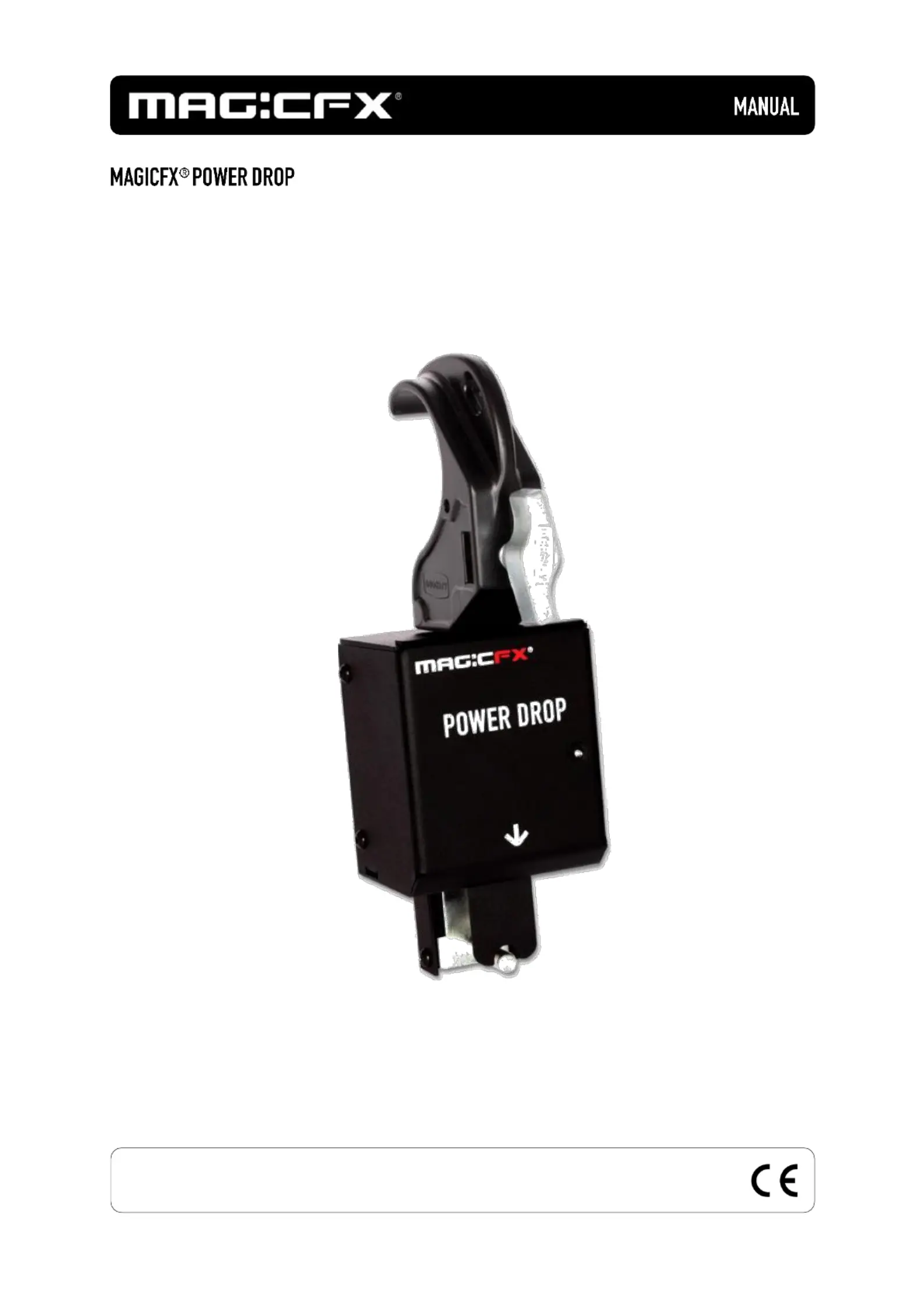

User Manual MAGICFX® Power Drop
Page 1
1. FOREWORD
Congratulations! You have bought a great new product from MAGICFX®.
The MAGIC FX Power Drop is a robust and simple device designed for safely dropping backdrops
(cloths) from a truss system. It is simple operated by powering the device to drop the backdrop. The
Power Drop is capable of dropping up to 20 Kg when loaded perpendicular to. The Power Drop is also
equipped with a blue indication LED to test the Power Drop.
MAGIC FX is a Dutch manufacturer of professional special eects machines and equipment. We have
been experts in special eects since our establishment in 1995. All our products are made under the
brand name MAGICFX® which by now has acquired a great reputation on account of its quality and
reliability. All products are made in accordance with the European Machinery Directive. MAGIC FX
manages the entire production process in-house, from the design stages and prototyping to
production. In short, we cover everything from concept to ready- -use products. to
Moreover, MAGIC FX is Europe's largest supplier of high-quality and reproof confetti products and
streamers. Thanks to our very large stock levels, we can deliver quickly and at low prices.
MAGICFX® is used by special eects professionals all over the world and our products are distributed
through a dealer network which covers more than 90 countries.
Congratulations and enjoy your purchase!
This manual describes the MAGICFX® Power Drop. The information in this manual is important for the
proper and safe functioning of the Power Drop. If you are not familiar with the installation, operation,
preventative maintenance etc. of the Power Drop then please read this user manual carefully from
beginning to end. MAGIC FX also insists that all new users (operators, installers, maintenance
workers and cleaners) receive a training course in which this user manual can serve as a starting
point.
MAGIC FX advises that the original of this user manual, including appendices, is kept at a safe and
central place. It is best that another original or copy is kept close to the Power Drop at the workplace.
If you are familiar with these matters, then you can use this manual as a work of reference.
The following standard markings are used in this manual for drawing attention to certain subjects or
actions.
TIP:
Gives you suggestions and advice regarding easier or more
convenient ways to carry out certain tasks.
PLEASE NOTE:
A comment with additional information: alerts you to certain problems.
CAUTION:
The machine can be damaged if you do not follow the procedures
carefully.
DANGER WARNING:
You can get (seriously) hurt if you do not carefully carry out the
procedures.
Version 1.0
Page 2
CONTENTS
1.
FOREWORD .................................................................................................... 1
2.
INTRODUCTION .............................................................................................. 3
2.1
DESCRIPTION AND APPLICATION OF THE POWER DROP ............................................. 3
2.2
NECESSARY ACCESSORIES ............................................................................................... 3
3.
SAFETY 4 ...........................................................................................................
3.1
INTRODUCTION ..................................................................................................................... 4
3.2
GENERAL SAFETY RULES 4 ...................................................................................................
3.3
WARNINGS ............................................................................................................................. 4
4.
PARTS 6 .............................................................................................................
5.
ACCESSORIES ................................................................................................ 7
6.
PREPARATIONS ............................................................................................. 7
7.
INSTALLATION ............................................................................................... 8
8.
USAGE ............................................................................................................ 11
9.
SWITCHING OFF ............................................................................................ 12
10.
CE MARKING .................................................................................................. 13
11.
DECLARATION OF CONFORMITY ................................................................ 14
12.
TROUBLESHOOTING .................................................................................... 15
13.
TECHNICAL SPECIFICATIONS ..................................................................... 15
14.
MAINTENANCE .............................................................................................. 15
15.
GUARANTEE .................................................................................................. 15
