Manufacturer’s Recommendations

Manufacturer’s Recommendations

Install

Install

Release

Release

LOADS – Always use product within its stated Safe Working Load

(SWL).

LIFTING & MOVEMENT – Do not use for lifting, such as in a crane or

pulley situation, or for hanging services exhibiting movement or dynamic

behavior. Designed for hanging statically positioned services only.

INSTALLATION: Do not walk or stand on the Gripple product

installation.

PAINTING – Do not paint the Gripple Express fastener. Ensure that the

fastener is in its final position prior to applying any paint to the cable

assembly. Do not move Gripple fastener after painting.

CABLE – Always use Gripple supplied and specified cable. Never

use on coated cable or other cable. Trim any damaged filaments with

Gripple wire cutters before use.

ENVIRONMENT – Gripple products, including Stainless Steel, are

NOT suitable for use in chlorinated / swimming pool environments.

Use standard or Express Gripple hangers in DRY LOCATIONS

ONLY. Stainless Steel Gripple hangers are SUITABLE FOR DAMP

LOCATIONS.

LOADS – Always use product within its stated Safe Working Load

(SWL).

LIFTING & MOVEMENT – Do not use for lifting, such as in a crane or

pulley situation, or for hanging services exhibiting movement or dynamic

behavior. Designed for hanging statically positioned services only.

INSTALLATION: Do not walk or stand on the Gripple product

installation.

PAINTING – Do not paint the Gripple Express fastener. Ensure that the

fastener is in its final position prior to applying any paint to the cable

assembly. Do not move Gripple fastener after painting.

CABLE – Always use Gripple supplied and specified cable. Never

use on coated cable or other cable. Trim any damaged filaments with

Gripple wire cutters before use.

ENVIRONMENT – Gripple products, including Stainless Steel, are

NOT suitable for use in chlorinated / swimming pool environments.

Use standard or Express Gripple hangers in DRY LOCATIONS

ONLY. Stainless Steel Gripple hangers are SUITABLE FOR DAMP

LOCATIONS.

For further technical assistance, please contact:

Gripple Inc. 1611 Emily Lane / Aurora, IL 60502 Phone: 630.406.0600 Email: [email protected]

For further technical assistance, please contact

Gripple Inc. 1611 Emily Lane / Aurora, IL 60502 Phone: 630.406.0600 Email: [email protected]

INST-XP-USA

www.gripple.com/us

INST-XP-USA

www.gripple.com/us

Installation GuidelinesExpress

ExpressInstallation Guidelines

LUBRICATION – Do not apply oil or any other lubricant to the Gripple

fastener or any other part of the cable assembly.

JOINING – Never join two cable ends together in-line. Only pass the free

end of the cable in a continuous loop through both channels of the Gripple

fastener. The angle inside the Gripple formed loop must not exceed 60˚.

HANGING AT AN ANGLE TO VERTICAL – Ensure that the load

calculation considers the effect of ‘side load’. For example, at an angle

of 60˚ to vertical, the SWL is reduced by 50%. (See published technical

information on website or in Product Guide.)

DUCTING: When installing wraparound hangers on round/spiral ducting

or pipes, the final inclusive angle of the assembly should not exceed 60˚.

Y-FIT: Legs on Y-Fit hangers are not be installed at angles greater than

60˚.

Failure to comply with these recommendations may result in product malfunction and

possible damage to property or person and will invalidate the Gripple warranty. Gripple

products are warranted to conform to the manufacturer’s published specifications at

the time of shipment and to be free from defects in materials and workmanship. No

other warranty, whether express or implied, including any warranty of merchantability

or fitness for purpose, shall exist in connection with the

sale or use of any Gripple product.

LUBRICATION – Do not apply oil or any other lubricant to the Gripple

fastener or any other part of the cable assembly.

JOINING – Never join two cable ends together in-line. Only pass the free

end of the cable in a continuous loop through both channels of the Gripple

fastener. The angle inside the Gripple formed loop must not exceed 60˚.

HANGING AT AN ANGLE TO VERTICAL – Ensure that the load

calculation considers the effect of ‘side load’. For example, at an angle

of 60˚ to vertical, the SWL is reduced by 50%. (See published technical

information on website or in Product Guide.)

DUCTING: When installing wraparound hangers on round/spiral ducting

or pipes, the final inclusive angle of the assembly should not exceed 60˚.

Y-FIT: Legs on Y-Fit hangers are not be installed at angles greater than

60˚.

Failure to comply with these recommendations may result in product malfunction and

possible damage to property or person and will invalidate the Gripple warranty. Gripple

products are warranted to conform to the manufacturer’s published specifications at

the time of shipment and to be free from defects in materials and workmanship. No

other warranty, whether express or implied, including any warranty of merchantability

or fitness for purpose, shall exist in connection with the

sale or use of any Gripple product.

Safe Working Load

SizeMax Load (lbs)

No. 133

No. 2100

Safe Working Load

SizeMax Load (lbs)

No. 133

No. 2100

Hanger Angles

If cable is suspended at an angle

from vertical, an additional sideways

load is applied which reduces

the load capacity of the overall

suspension. Please see published

technical information regarding this

net effect on Safe Working Load.

Legs on Y-Fit hangers not to be

installed at angles greater than 60˚

Hanger Angles

If cable is suspended at an angle

from vertical, an additional sideways

load is applied which reduces

the load capacity of the overall

suspension. Please see published

technical information regarding this

net effect on Safe Working Load.

Legs on Y-Fit hangers not to be

installed at angles greater than 60˚

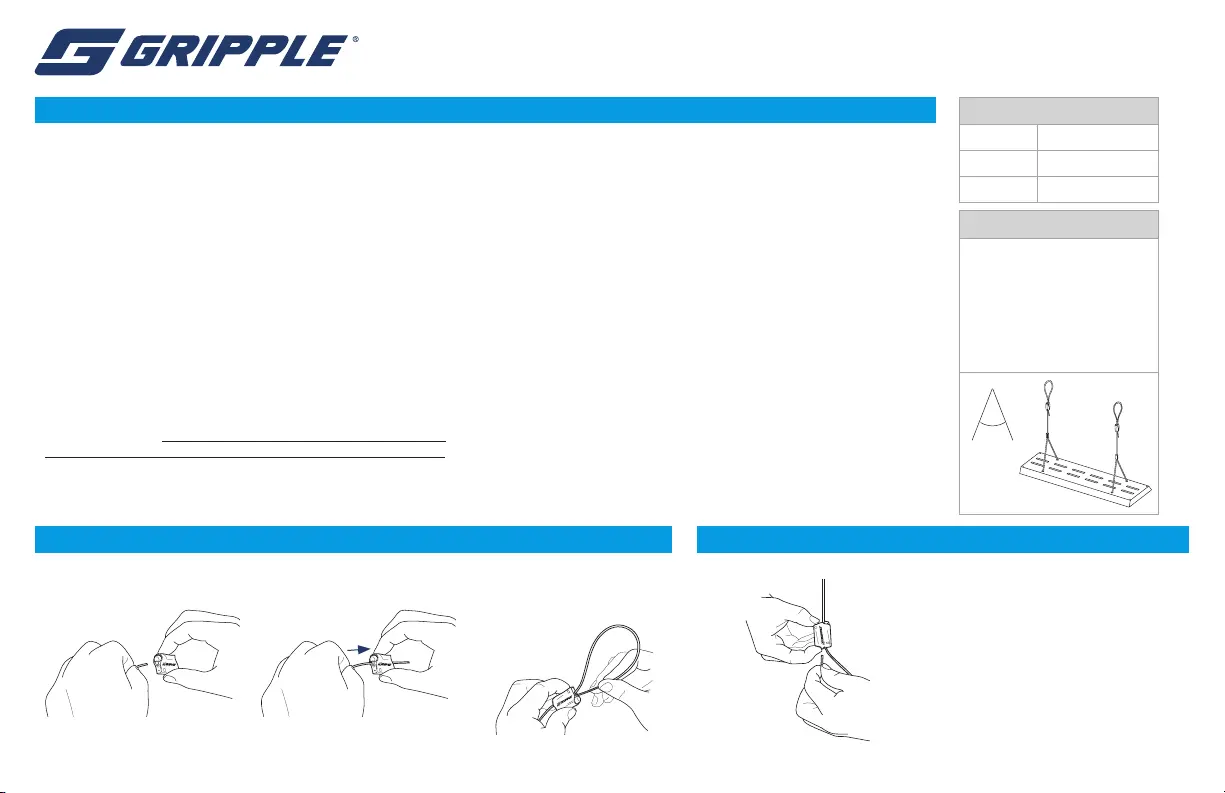

1. Thread cable into No. 1 or

No. 2 Gripple Express.

1. Thread cable into No. 1 or

No. 2 Gripple Express.

2. Pull cable through.

2. Pull cable through.

3. Loop around ceiling or service

attachment point and pass tail

end of cable through other hole

of Gripple Express.

3. Loop around ceiling or service

attachment point and pass tail

end of cable through other hole

of Gripple Express.

1. Make sure load is supported.

2. Press the button on the top (Gripple

Express No. 2) or slide the button on the

side (Gripple Express No. 1), to release the

Gripple Express fastener from the cable and

adjust the height of the service.

1. Make sure load is supported.

2. Press the button on the top (Gripple

Express No. 2) or slide the button on the

side (Gripple Express No. 1), to release the

Gripple Express fastener from the cable and

adjust the height of the service.

60˚

60˚
