Pagina 1/8

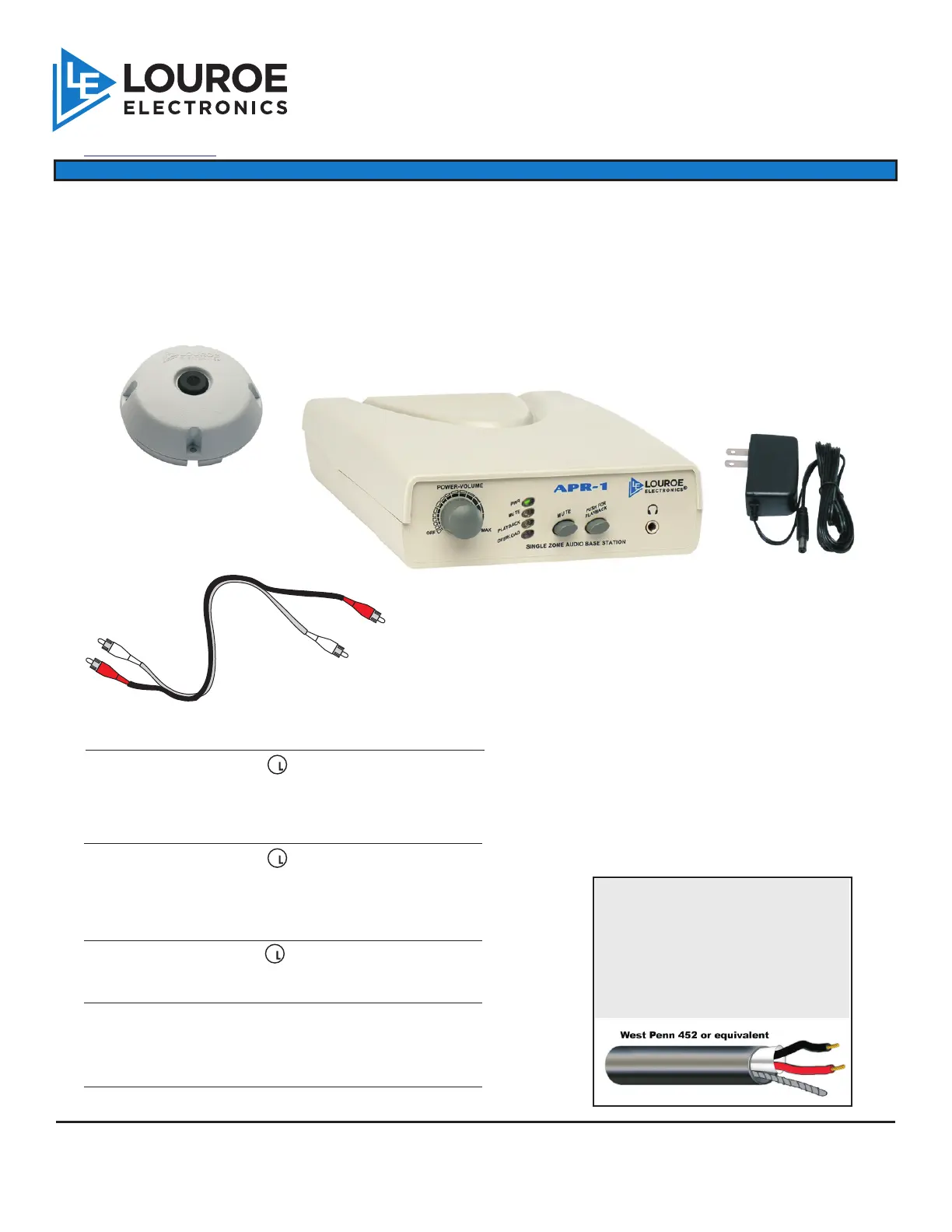

The ASK-4 101 is a single zone audio monitoring system designed to interface with a

Contents Description

APR-1 listed Audio Base Station.

Used for listening to live audio

from microphone, as well as

audio playback from DVR’s, VCR’s

or other audio devices.

Verifact A Microphone Listed Line Level, Electret condenser

microphone with preamp. Picks up

normal sounds within 30’ circle.

May be located Up to 1000’ from

APR-1 Base Station.

AD-1 listed AC ADAPTER.

Supplies 12 Vdc to APR-1 and

Microphone.

Dual RCA Cable RCA cable for connection to a

DVR/VCR or other Audio devices

that accept line level input

(0dB @ 600W).

2 Conductor shielded cable, 22

gauge with a 24 gauge drain

wire.

NOTE: Unshielded cable is not

satisfactory for audio

systems.

WIRING REQUIREMENTS

AUDIO MONITORING SYSTEM

INSTALLATION AND OPERATING INSTRUCTIONS

ASK-4

#101

Page 1 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: sales@louroe.com

(818)

ASK4_101_inst 12/14

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: (818)994-6498 / FAX: (818)994-6458

/ www.louroe.comtechsupport@louroe.com

VERIFACT A

APR-1 Base Station

DUAL RCA Cable

AD-1

DVR, VCR or other recording devices that accept line level input. The APR-1 Audio

Base Station contains a built-in 3” speaker and volume control for producing live audio

and audio playback. The Verifact A is an omnidirectional pre-amplified microphone that

produces line level output.

[1] Power-Volume Turns “ON” power to the unit and controls the audio volume

through the Speaker[9].

[2] Power Indicator Lights (green) when the power is present to the unit.

[3] Mute Indicator Lights (orange) when Mute Switch[6] is pushed in. Audio is muted.

[4] Playback Indicator Lights (yellow) when Push for Playback[7] is pushed in to “ON” position.

[5] Overload Indicator Flashes or lights (red) when there is a short in the power supply.

[6] Mute Switch Used to mute the audio on both live and playback mode.

[7] Push for playback Used for DVR/VCR playback. May also be used to listen to audio from an

external source. Press switch to listen to playback. Switch must be “OUT”

or “OFF” when monitoring and recording, otherwise live audio is muted.

[8] Headphone Jack Used for private listening. Any 3.5mm stereo headphone with 8W to

600W impedance can be used.

[9] Speaker (3”) Provides live audio. Muted when a headphone is connected to

Headphone Jack [8].

DESCRIPTION

THE APR-1 IS SHOWN BELOW. ALL CONTROLS ARE LOCATED AT THE FRONT PANEL. ALL CONNECTIONS ARE

MADE AT THE REAR PANEL.

INSTALLATION AND OPERATING INSTRUCTIONS

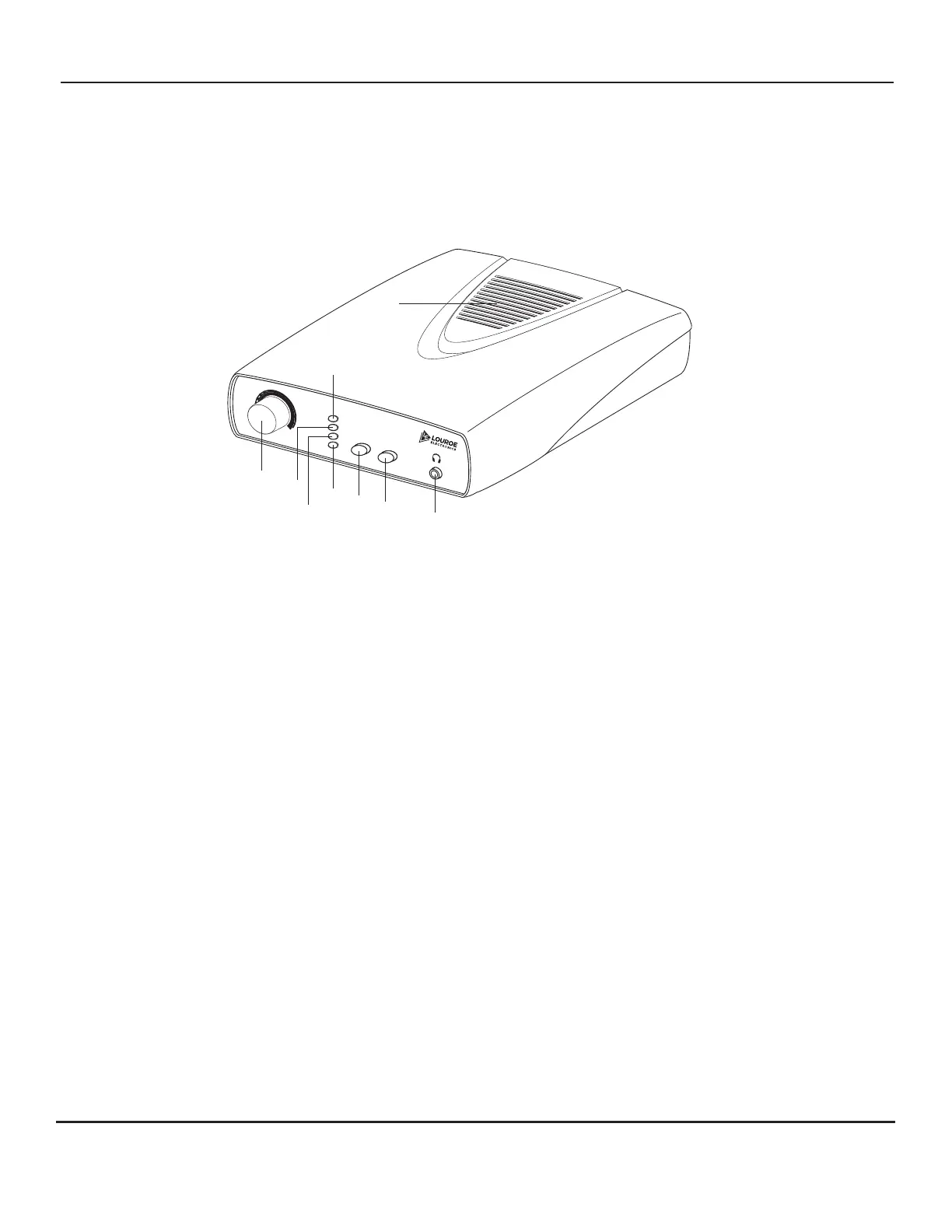

FRONT PANEL LAYOUT OF APR-1

Page 2 of 8

LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: sales@louroe.com

(818)

APR-1

MUTE

PUSH FOR

PLAYBACK

PWR

MUTE

PLAYBACK

OVERLOAD

INGLE Z

ONE

AUDIO

BAS

TATI

OFF

MAX

POWER-VOLUME

[3]

[4]

[5]

[1]

[2]

[6]

[7]

[8]

[9]

ASK4_101_inst 12/14
