FOR SUPPORT AND INFORMATION,

VISIT WWW.LOREXTECHNOLOGY.COM

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

Contents

•IR Night Vision Camera*

•Mounting Kit / Allen Key*

•60ft BNC / Power Extension Cable*

•Power Adapter**

•BNC-to-RCA Adapter***

Copyright © 2012 Lorex Technologies Inc.

As our products are subject to continuous improvement, Lorex reserves the right to modify product

design, specifications and prices, without notice and without incurring any obligation. E&OE

Camera Specifications

Image Sensor1/3” Color Image Sensor

Video FormatNTSC

Effective PixelsH: 728 V: 488

Resolution600 TV Lines

Scan System2:1 Interlace

Sync SystemInternal

S / N Ratio46.8dB (AGC Off)

IrisAES

AES Shutter Speed1/60 ~ 1/100,000 Sec.

Min. Illumination0.1 Lux without IR LED

0 Lux with IR LED

Video OutputComposite 1.0Vpp @ 75ohm

Lens / Lens Type3.6mm F2.1 / Fixed

FOV (Diagonal)78°

TerminationBNC Type

IR LED Qty. / Type24 pieces / 850nm

Night Vision Range*66ft (20m) / 90ft (28m)

Power Requirement12V DC ±10%

Power ConsumptionMax. 280mA (w / IR)

Operating Temp. Range14° ~ 122°F / –10° ~ 50°C

Operating Humidity Range< 60% RH

Indoor/Outdoor**Both (IP66)

Weight (including stand)0.6lbs / 0.3kg

* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor

night time ambient lighting. Actual range and image clarity depends on installation location, viewing

area and light reflection / absorption level of object.

** Not intended for submersion in water. Installation in a sheltered location recommended.

WARNING - A REGULATED UL / CSA APPROVED power supply is

REQUIRED for use with this camera. Use of a non-regulated, non-conforming

power supply can damage this product and voids the warranty.

Features

•Super Resolution with enhanced optics image sensor

•BrightNight Viewing with enhanced lowlight image

sensor

•Night Vision up to 66/90ft (20/28m) away*

•Anti-glare feature ensures clear images under strong

lighting conditions

•Accurate colors with Lorex’s automatic light filtering

technology

•Vandal Resistant Design: Cable pass through bracket

•Weatherproof housing for indoor & outdoor installation

(IP66)**

•Wide-angle lens capturing 78° field of view (diagonal)

•Versatile mounting options: ceiling, counter or wall

mountable

Disclaimers:

* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor

night time ambient lighting. Actual range and image clarity depends on installation location,

viewing area and light reflection / absorption level of object.

** Not intended for submersion in water. Installation in a sheltered location recommended.

Warning/Caution

•Read this guide carefully and keep it for future reference

•Follow all instructions for safe use of the product and handle with care

•Use the camera within given temperature, humidity and voltage levels

noted in Camera Specifications

•Do not disassemble the camera

•Do not point the camera directly towards the sun or a source of intense

light

•Use only the supplied regulated power supply. Use of a non-regulated,

non-conforming power supply can damage this product and voids the

warranty

•Periodic cleaning may be required. Use a damp cloth only. Do not use

harsh cleaners or aerosol cleaners.

•The supplied extension cable is rated for surface mounting only

•Cables for in-wall / floor-to-floor installations are sold separately

Installation Tips

•Point the camera where there is the least amount of obstructions (i.e. tree

branches)

•Install the camera in a location that is difficult for vandals to reach

•Secure cabling so that it is not exposed or easily cut

•Camera rated for outdoor use. Installation in a sheltered location

recommended

WEATHERPROOF

NIGHT VISION SECURITY CAMERA

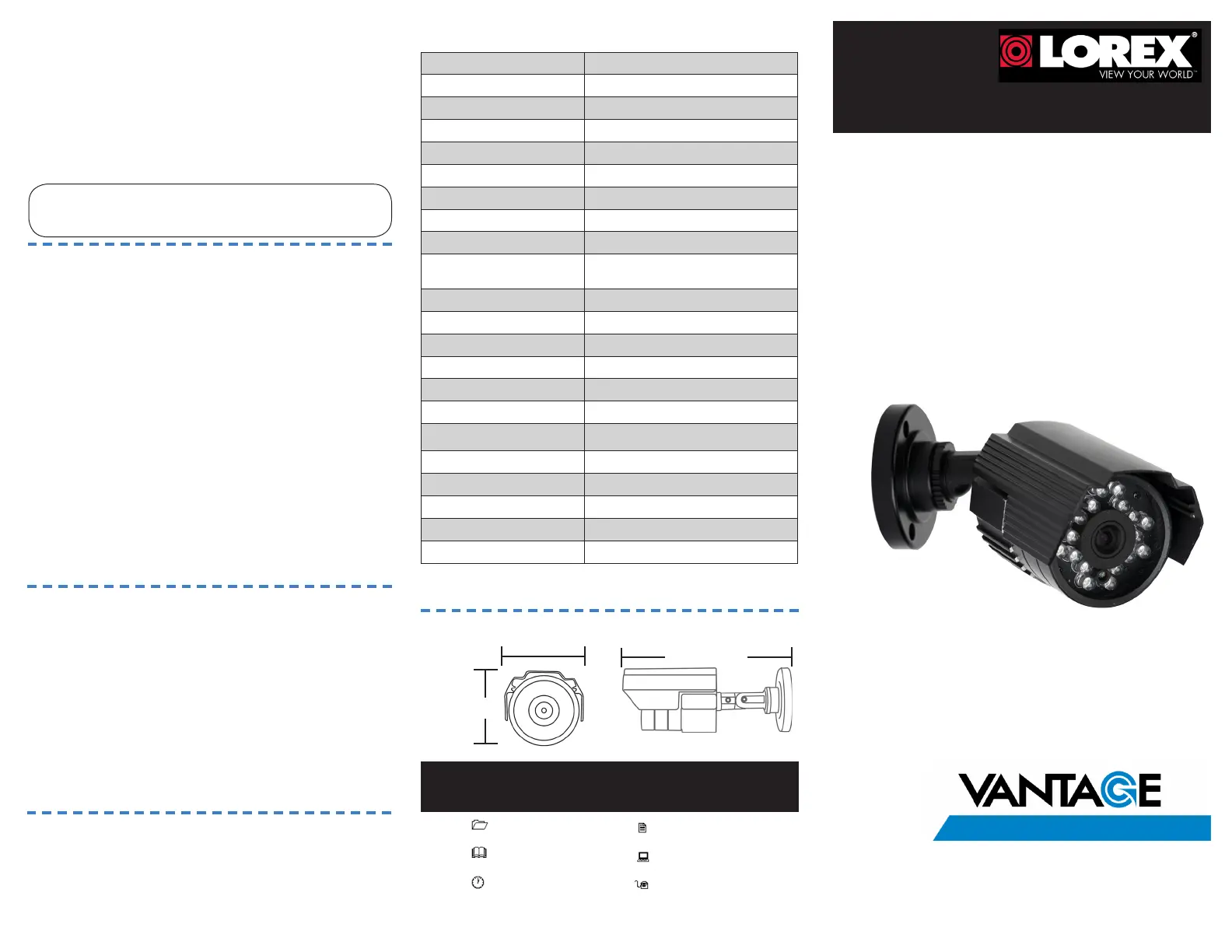

Quick Start Guide

English Version 1.0

CVC7572 SERIES

153mm / 6.0”

53mm / 2.1”

Dimensions

*Model CVC7572PK4 is a 4-pack that includes four of the listed items.

** A “4-in-1” Power Adapter that provides power to four cameras or individual power adapters

may be provided, depending on product configuration.

*** Not included in multi-camera packs.

57mm / 2.2”
