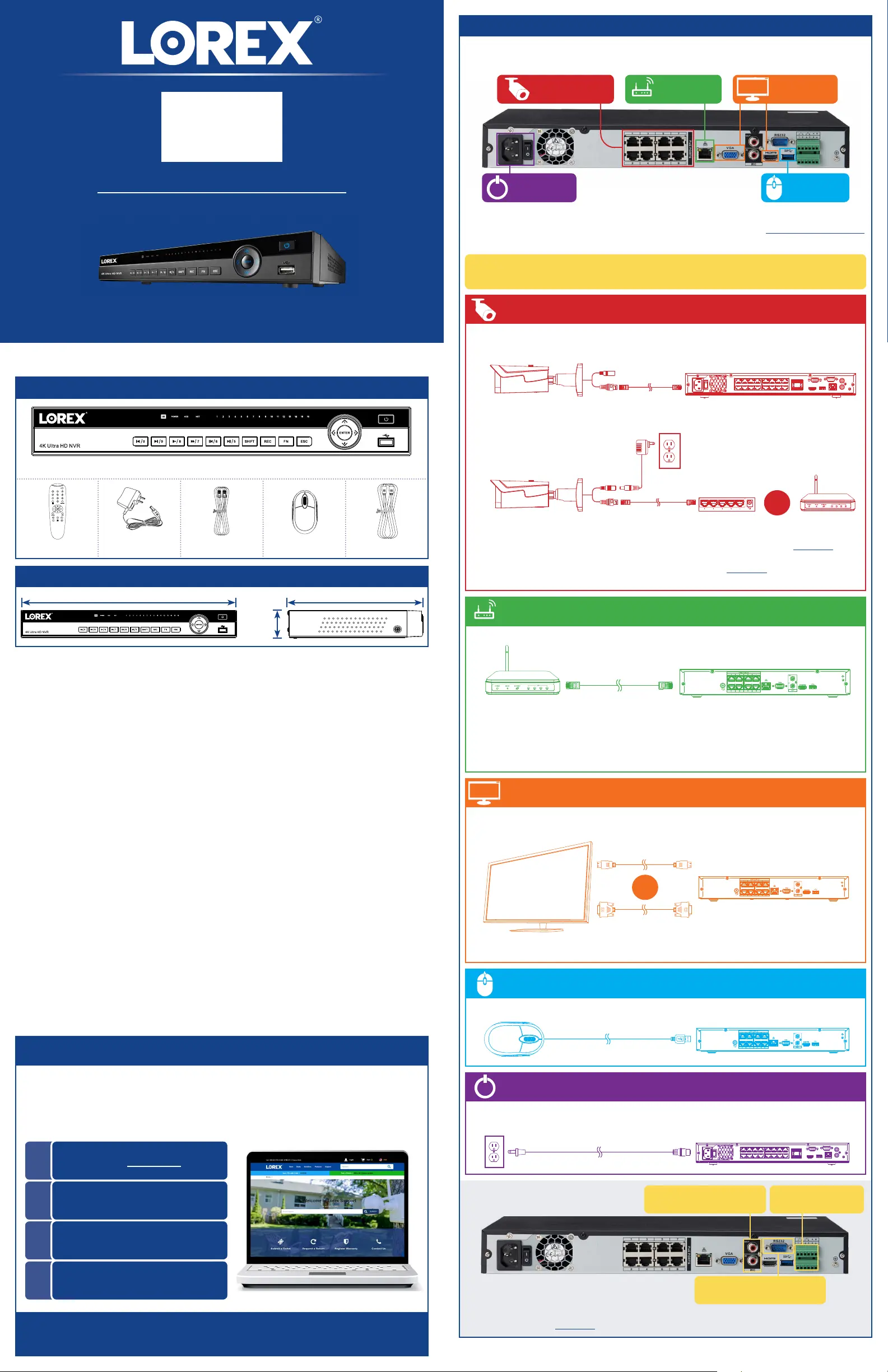

Package Contents

NR900XCL_QSG_EN_R1

USB MouseEthernet CablePower AdapterHDMI Cable

4K Network Video Surveillance Recorder

Remote Control

Dimensions

Connect your IP cameras (not included) using one of the following methods:

a. Connect cameras directly to the recorder (recommended).

NR900XCL Series

Quick Setup Guide

Physical setup of recorder and essential system settings

b. Connect cameras to a PoE switch or router on your network (not included). See “Adding

Cameras from the LAN” on reverse for more details.

1 / 2

Setting Up Your Recorder

Follow the steps below to complete physical setup of your recorder.

To set up your recorder:

STEP 1:

Connect IP cameras*

STEP 2:

Connect router*

STEP 3:

Connect monitor*

STEP 4:

Connect mouse

STEP 5:

Connect power

STEP 1:

Connect IP cameras*

STEP 2:

Connect router*

STEP 3:

Connect monitor*

STEP 4:

Connect mouse

STEP 5:

Connect power

Connect the recorder to your router using the included Ethernet cable.

Connect the recorder to a monitor using the included HDMI cable or a VGA cable

(not included). The HDMI port supports up to 4K resolution, and VGA supports up to

1080p.

Connect the included mouse to a USB port on the recorder.

Use the included power adapter to connect the recorder to a nearby outlet. Turn the

recorder on using the power switch on the back panel.

14.7” / 375mm

12.9” / 327mm

2.1”

53mm

* Not included / sold separately.

NOTES:

• This guide covers connecting IP cameras to your security recorder only. For full instructions

on installing your cameras, please refer to your camera’s documentation at lorex.com.

• Connecting cameras to a router, or a network switch without PoE, requires a power adapter

for each camera. Refer to your camera’s documentation at lorex.com for the correct power

adapter model number.

OR

NOTES:

• If you are using a PoE switch, ensure the switch is connected to the same network as your

recorder.

• To receive automatic firmware updates and enable remote viewing with computer and mobile

apps, a high speed Internet connection is required (minimum upload speed of 5Mbps required for

4K viewing; 3.5Mbps for lower resolutions).). All other system features can be used without an

Internet connection.

OR

NOTE: To optimize picture quality, set the recorder’s video output to match the resolution of

your monitor.

8-channel configuration shown. 16/32 channel will have the respective number of video inputs.

For camera compatibility information, visit lorex.com/compatibility.

Overview of extra ports:

NOTE: For full instructions on using the extra ports, please refer to your security recorder’s

instruction manual at lorex.com.

Alarm Block

Connect alarm devices*

Audio I/O

Connect microphone / speaker*

RS232

Connect access control systems*

Back panels shown below are for illustration only. Your recorder’s back panel

may appear different, with all the same ports in different locations.

Copyright © 2019 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design,

specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloadstab

4

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

3

2

1
