Connecting the CamerasEnabling Camera Audio

ATTENTION:

Audio is disabled by default.

Audio recording and / or use of listen-in audio without consent

is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products

that does not conform with local laws.

To enable audio recording through a Lorex HD DVR:

1. In the Live View, right-click and click Main Menu. Enter the system user name

(default: admin) and DVR password.

2. Click (

) and select Recording > Recording.

3. Under Channel, select the channel where the audio-capable camera is

connected.

4. Under Audio/Video, check the box on the left to enable audio recording.

5. Under Audio Format, select the format that will be used to record audio. G711a

is recommended.

6. Click OK to save changes.

To enable listen-in audio through a Lorex HD DVR:

NOTE: Listen-in audio requires a monitor with speakers or speakers connected to

the DVR.

1. In Live View, double-click the camera channel to open in full-screen.

2. Hover near the top of the channel where the camera is connected and click to

unmute (

) / mute () listen-in audio.

Connecting the Cameras

Changing the DVR to 4K Resolution

The output resolution of a Lorex HD DVR is set to 1080p as a default.

To view 4K resolution on a 4K monitor, the output resolution must be

changed using the DVR menu.

To change the output resolution through a Lorex HD DVR:

1. Right-click on the Live View to access the Quick Menu.

2. Click Main Menu and then click the Setting icon (

).

3. Click Setting > Display.

4. Click the Display tab.

5. In the Resolution drop-down menu, select 3840×2160.

6. Click Apply to save and click OK to exit.

LBV8721A_QSG_EN_R3

4K ULTRA HD MPX Bullet Security Camera

with Audio

• 4K HD MPX Bullet Security Camera with Audio

• Mounting Kit*

• BNC / Power Extension Cable*

• Power Adapter**

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s specifications.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only the supplied regulated power supply provided with the

product. Use of any other power supply can damage the product and

void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

any harsh, chemical-based cleaners.

• The supplied cable is rated for surface mounting only (CM type). Cables

for in-wall and floor-to-floor installations are sold separately (CMR

type). These and other cables are available at lorex.com.

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered location is

recommended.

* Per camera in multi-camera packs.

** A multi-camera power adapter that provides power to multiple

cameras or individual power adapters may be provided depending on

product configuration.

• For a full list of compatible recorders, visit lorex.com/compatibility.

• Not intended for submersion in water. Installation in a sheltered

location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the

camera changes between Day/Night viewing modes, an audible clicking

noise may be heard from the camera. This clicking is normal, and

indicates that the camera filter is working.

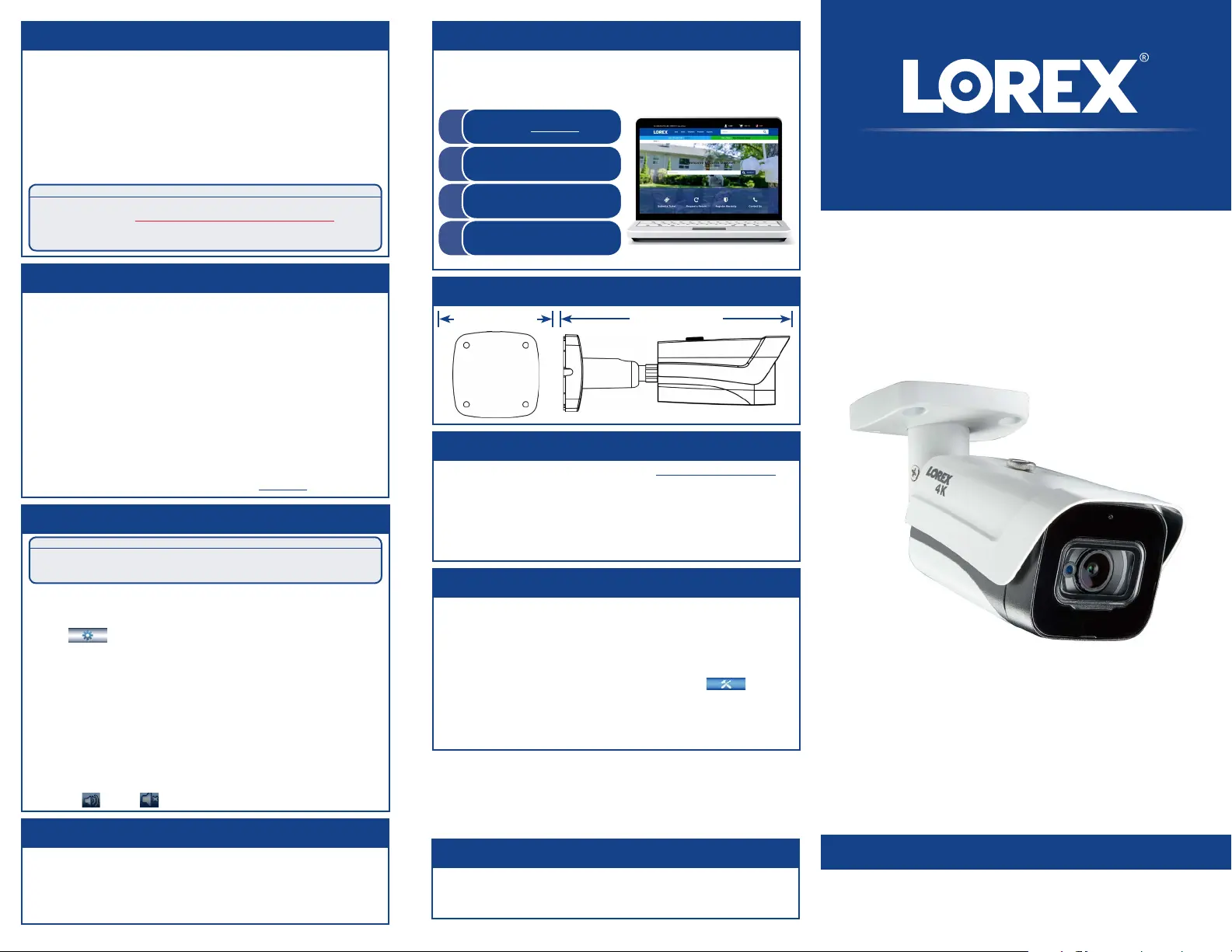

Quick Start Guide

English Version 3.0

LBV8721A SERIES

Package Contents

ATTENTION:

A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with

this camera (included). Only the included power adapter can be used.Use of

a non-regulated, non-conforming power supply can damage this product and

voids the warranty.

Safety Precautions

Installation Tips

Dimensions

7.2” / 183mm

2.7” / 70mm

Disclaimers

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloadstab

4

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

3

2

1

www.lorex.com

Copyright © 2019 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right

to modify product design, specifications and prices, without notice and without

incurring any obligation. E&OE. All rights reserved.
