ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
6523 6524 6525 6526
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

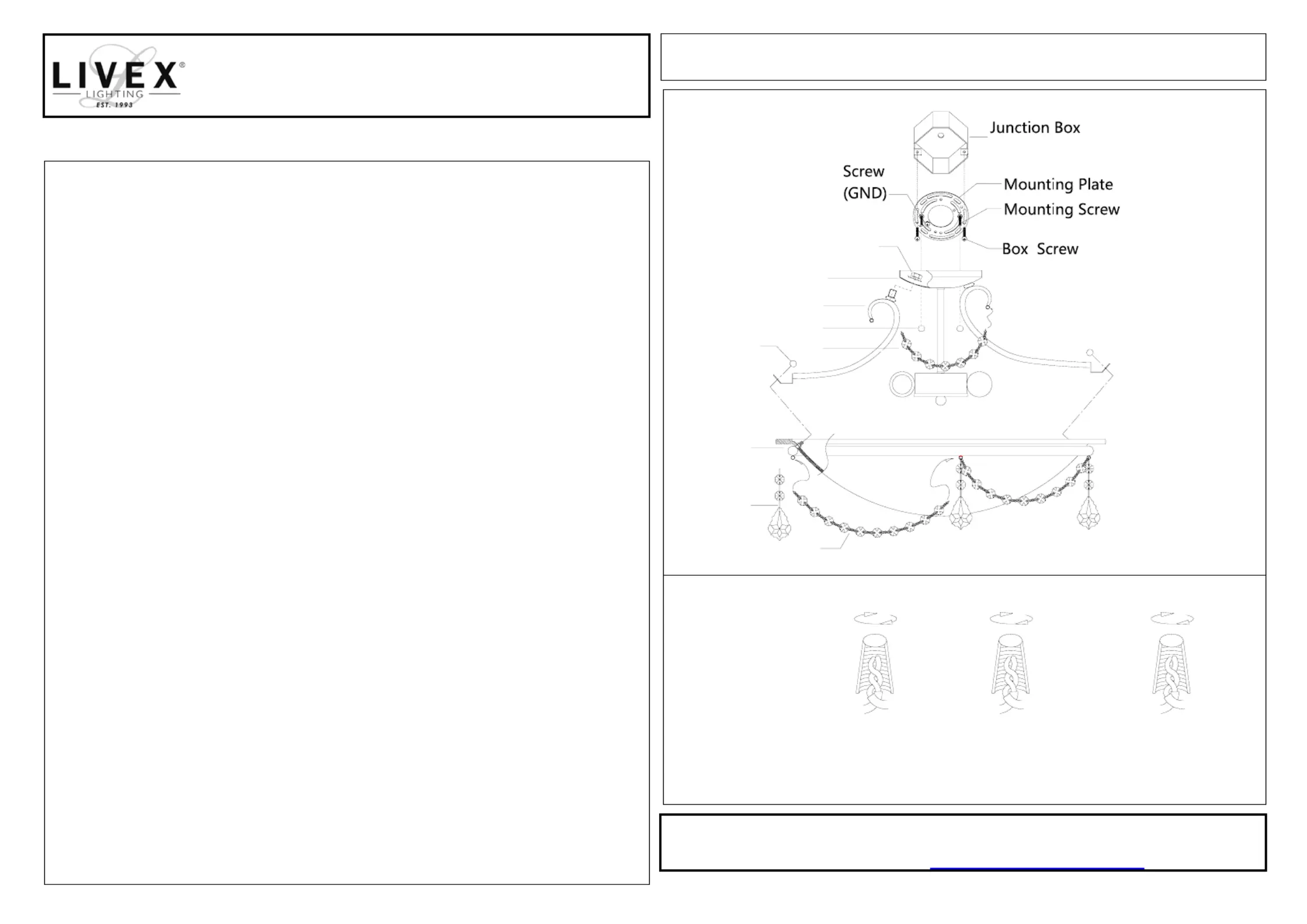

ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and all
hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts on a clear area.
Take care not to lose any small parts necessary for installation.
3. Thread the two mounting screws about 1/4” into the pre-drilled holes in the
mounting plate spaced the same distance apart as the holes in the canopy.
4. Attach the mounting plate to the Junction Box with the two junction box
screws as shown. The side of the mounting plate marked "GND" must face
out. The junction box is not included.
5. Attach the end pipe thread of arm(A) insert to the side hole of lamp
body(H), then lock it securely with the hex nut and lock washer. Attach the
other end hook’s hole of the arm insert the screw of glass shade(E), lock it
securely with the ball nut(D). Attach the cluster crystals(C) hang to the end
small ring of the arms. Attach the maple leaf crystals(F) and cluster
crystals(G) hang to the side small ring of glass shade(E).
6. Install the light bulbs(not included) in accordance with the fixture
specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
7. While holding the lamp body assembly towards the ceiling, connect the
electrical wires as Shown in Fig.2, making sure that all wire nuts are
secured. You may have to wrap the connections with electrical tape. If your
outlet has a ground wire (green or bare copper), connect the fixture ground
wire to it. Otherwise connect fixture’s ground wire directly to the mounting
plate with the green screw provided. After wires are connected, tuck them
carefully inside the Junction Box.
8. Attach the lamp body to the junction box, aligning screws on mounting
plate with mounting holes in canopy and lock it securely with the ball nuts
(B).
Your installation is now complete. Return power to the junction
box and test the fixture.
A
B
C
D
E
F
G
H
HexNut
(Notincluded)
Green
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
White
(Neutral)
HOUSE
WIRES
Green or Bare
Copper(Ground)
Thank you for purchasing aLIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us online at: WWW.LIVEXLIGHTING.COM
©COPYRIGHT ALL RIGHTS RESERVED.LIVEX LIGHTING,INC. DOC20160306523
FIG.2
FIG.1
