GB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CYGB/IE/NI/CY

The warranty for this device is

3 years from the date of purchase.

Should this device show any fault in

materials or manufacture within

3 years from the date of purchase,

we will repair or replace it – at our

choice – free of charge to you.

The warranty period begins on the

date of purchase. Please keep the

original sales receipt in a safe

location. This document is required

as your proof of purchase. This

warranty becomes void if the device

has been damaged or improperly

used or maintained.

The warranty applies to faults in

material or manufacture. This

warranty does not cover product

parts subject to normal wear, thus

possibly considered consumables

(e.g. batteries) or for damage to

fragile parts, e.g. switches,

rechargeable batteries or glass

parts.

J Do not use this light for dimmers

or electronic switches. It is not

suitable for these purposes.

Working safely

J Install the lamp so that it is

protected from moisture, wind

and dirt.

J Make careful preparations for

the assembly and take sufficient

time. Clearly lay out all

components and any additional

tools or materials that might be

required so that they are readily

to hand.

J Remain alert at all times and

always watch what you are

doing. Always proceed with

caution and do not assemble

the lamp if you cannot

concentrate or feel unwell.

Q

Installation and

operation

Q

Installing light

HG00198A-BS

j Measure the space for

installation of the light. Use a

spirit level to position it correctly.

j Mark the position of the drill

holes

1

in the under-cabinet

light.

j Mark the two mounting holes at

a distance of 362 mm apart.

j Drill the holes, ø approx. 2 mm,

depth approx. 10 mm.

j Position the under-cabinet light

according to the drilled holes

and tighten the

screws

6

.

j Plug the connecting lead

5

into the socket

4

.

j Plug the mains plug of the

connecting lead

5

into a

socket. Your under-cabinet light

is now ready for operation.

HG00198A-BS

J The product is only suited for

use with the included mains

adapter (Model No.

YNQST120025BL).

J Please note that the power

adapter continues to draw a

small amount of power even if

the lamp is turned off as long as

the power adapter is plugged

into a power outlet. To switch

the device off completely,

unplug the power adapter from

the socket.

HG00198B-BS

J The product may only be used

with the built-in LED control

gear.

J The product continues to draw a

small amount of power even if

the lamp is off as long as

product is connected to supply

mains. To switch the device off

completely, the mains switch

should be switched off.

To avoid danger of

fire and injury

J RISK OF INJURY! Check

every bulb and lampshade for

damage immediately upon

unpacking. Do not fit the light if

the bulbs and / or lampshades

are faulty. If they are, contact

the service point for a

replacement.

DANGER

OF ELECTRIC SHOCK!

DANGER OF DAMAGE TO

PROPERTY! DANGER OF

INJURY! Ensure that you do

not strike electrical cables, gas

or water pipes when you are

drilling into the wall. If

necessary, check the wall using

a suitable detector before you

drill.

Failure to observe this advice

may result in damage to the

product.

J Do not attach the light to damp

or conductive substrates.

LED cannot be replaced.

The illuminant is not

replaceable.

If the illuminant fails at the end

of its life, the entire light must be

replaced.

To avoid danger to

life from electric

shock

J Never use your lamp if you

discover that it is damaged in

any way.

J In the event of damage, repairs

or other problems with the lamp,

please contact the Service

Centre or an electrician.

J Before installation, switch off the

electrical circuit at the circuit

breaker box or remove the fuse

from the fuse box.

J Never let the lamp come into

contact with water or other

liquids.

J Never open or insert anything

into electrical fittings or

equipment. Doing this sort of

thing can lead to a serious

danger to life from electric

shock.

J If the external flexible cable or

cord of this luminary is

damaged, it shall be replaced

by a special cord or cord

exclusively available from the

manufacturer or his service

agent.

J Before assembly, ensure that the

mains voltage available

corresponds to the operating

voltage necessary of the light

(HG00198A-BS: 100 - 240 V ∼;

HG00198B-BS: 220 - 240 V ∼).

Protection

category: II /

Q

Safety

Safety

advice

The right to claim under the

guarantee shall be rendered invalid

in respect of damage caused by the

non-observance of these operating

instructions! No liability is

accepted

for consequent damage!

No liability

is accepted for

damage to property

or persons caused

by improper

handling or non-observance of the

safety advice!

J This appliance can be used by

children aged from

8 years and above and persons

with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if

they have been given

supervision or instruction

concerning use of the appliance

in a safe way and understand

the hazards involved. Children

shall not play with the

appliance. Cleaning and user

maintenance shall not be made

by children without supervision.

J Do not allow the lamp or the

packaging materials to lie

around unattended. Plastic film

or bags, Styrofoam etc. can turn

into dangerous toys for children.

J

CAUTION!

DANGER OF

EXPLOSION!

Do not operate the lamp in

potentially explosive

environments in which there are

inflammable vapours, gases or

dusts.

J Do not expose the lamp to

direct sunlight, rain, snow or ice.

LED LIGHT STRIP

Operation and safety notes

ΦΩΤΙΣΤΙΚΗ

ΡΑΒΔΟΣ-LED

Υποδείξεις χειρισμού και

ασφαλείας

LED LIGHT STRIP

IAN 278010

HG00198A-BS

HG00198B-BS

HG00198A-BS

HG00198B-BS

HG00198B-BS

HG00198B-BS

HG00198B-BSHG00198B-BS

LED LIGHT STRIP

Q

Introduction

We congratulate you on the

purchase of your new product. You

have chosen a high quality product.

The instructions for use are part of

the product. They contain important

information concerning safety, use

and disposal. Before using the

product, please familiarise yourself

with all of the safety information

and instructions for use. Only use

the unit as described and for the

specified applications. If you pass

the product on to anyone else,

please ensure that you also pass on

all the documentation with it.

Q

Proper use

The under-unit lights

HG00198A-BS and

HG00198B-BS are intended for

providing illumination and for

mounting on furniture. Under-unit

light HG00198B-BS can also be

mounted on walls. The product may

only be used indoors in dry rooms.

The LEDs cannot be r

eplaced. The

light can be mounted

on all normally

flammable surfaces. This device is

intended for use only in a domestic,

private household environment.

Q

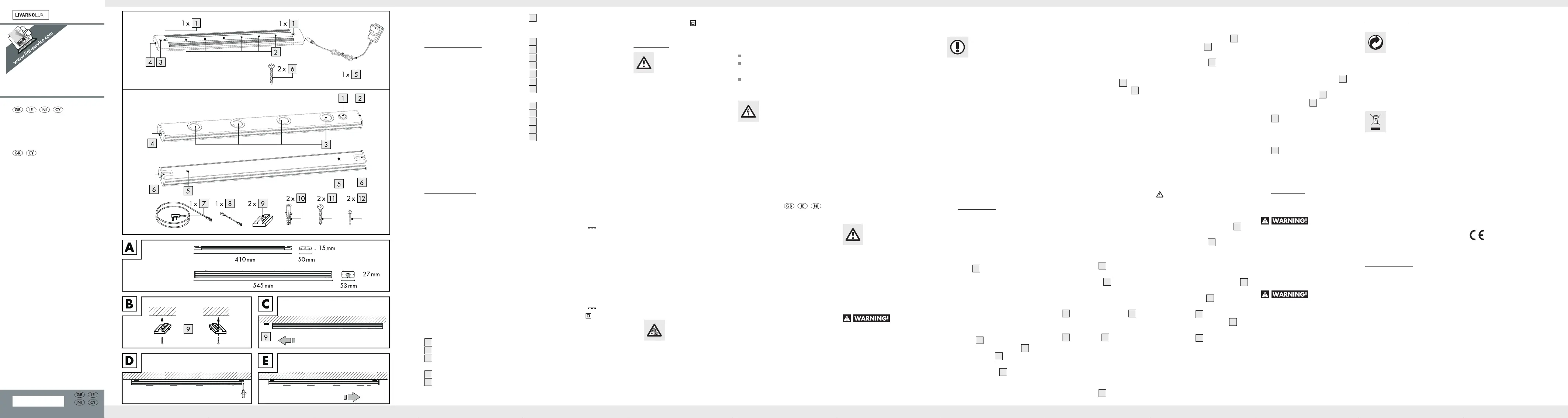

Description of parts

and features

HG00198A-BS

1

Drill hole

2

LED

3

ON/OFF switch

(“Touch switch”)

4

Socket for connecting lead

5

Plug-in mains adapter with

connection lead (length

approx. 2 m)

6

Screw

HG00198B-BS

1

ON/OFF switch

2

Socket for connecting lead

3

LED

4

Protective cap

5

Drill hole for wall mounting

6

Slot for mounting rail

7

Connecting lead with mains

plug

8

Extension lead

9

Mounting rail

10

Dowel

11

Screw for wall mounting

12

Screw for under-cabinet

installation

Q

Technical data

HG00198A-BS

LED Light strip +

Main adapter:

Total power

consumption: approx. 3.2 W

LED Light Strip:

Operating voltage:

12 V

Lamps:

6 x power LED

LED:

6 x

0.5 W

Nominal power:

approx. 2.4 W

Main adapter:

Rated voltage,

primary: 100–240V

~

50–60 Hz

Rated voltage,

secondary: 12V 250 mA

Protection class: II /

Main adapter (model no.:

YNQST120025BL) CE standard

tested.

HG00198B-BS

Operating voltage:

220–240 V

~

50-60 Hz

Lamps:

4 x power LED

LED:

4 x

0.5 W

Nominal power: approx. 3 W

Note: Only use the lamp with

the mains adapter it was

delivered with

(YNQST120025BL). Damage

due to use of a different adapter

is not covered by the guarantee.

Q

Installing light

HG00198B-BS

j Use the mounting rails

9

(see

also Fig. B) and the screws

12

for under-cabinet installation.

j Measure the space for

installation of the light. Use a

spirit level to position it correctly.

Mark where you wish to drill

and pre-drill the holes.

j Mark the distance of 533 mm

for the two fixing holes. Drill the

holes: ø approx. 2 mm, approx.

10 mm deep.

Note: The supplied screws are

for standard installation under

wall cabinets and are not

suitable for every type of wall. If

installing on concrete walls, for

example, you will need to use

special dowels and screws.

Information on suitable

installation material can be

obtained from specialist stores.

j First screw only one of the

mounting rails

9

in the pre-

drilled positions with the

supplied screws

12

.

j Place the under-cabinet light flat

on the mounting surface and

push it onto the mounting rail

9

up to the stop in the slot

6

(see Fig. C).

j Push the second mounting rail

9

into the slot

6

on the

under-cabinet light so that the

drilled hole is visible. Tighten the

screw in this position (see Fig.

D).

j Now push the under-cabinet

light a little to the right. Both

mounting rails

9

should now

be firmly positioned (see Fig. E).

Check that the under-cabinet

light is fitted securely.

j Plug the connecting lead

7

into the socket

2

.

j Plug the mains plug of the

connecting lead

7

into a

socket. Your under-cabinet light

is now ready for operation.

Q

Mounting model

HG00198B-BS on a

wall

j Measure up the wall or

mounting surface for drilling

the holes. Use a spirit level to

improve accuracy.

j Mark the two mounting holes a

distance of approx. 403 mm

apart.

j Now drill the mounting holes (ø

approx. 6 mm, depth approx.

30 mm).

CAUTION! Make sure that

you do not damage any

electrical cables during this

operation.

j Insert the supplied dowels

10

into the drilled holes. Insert the

supplied screws

11

into the

dowels and tighten them. Let

them project a distance of about

1.3 mm from the wall or

mounting surface.

j Attach the light to the screws

11

using the appropriate wall

mounting holes

5

.

j Plug the connection cable with

mains plug

7

into the socket

for the connection cable

2

.

j Plug the connection cable with

mains plug

7

into the mains

socket. Your light is now ready

for operation.

Extensions

j Note:Ensure that no more

than 3 under-unit lights of the

same type (HG00198B-BS) are

connected together in series.

Install each additional light at a

distance of approx. 15 cm as

described.

j Remove the protective cap

4

.

Connect the two under-unit

lights to the socket

2

using the

extension lead

8

. Then you

only need one connection lead

7

for the power supply.

j CAUTION! First ensure that all

the under-unit lights are

connected by an extension lead

8

before you insert the mains

lead into the mains socket.

Q

Maintenance and

Cleaning

Allow the lamp to cool down

completely.

DANGER

TO LIFE FROM

ELECTRIC

SHOCK! Before carrying out

any tasks on the lamp, switch off

the electrical circuit at the circuit

breaker box or remove the fuse

from the fuse box.

j CAUTION! Do not use

solvents, petrol etc.

DANGER

TO LIFE FROM

ELECTRIC

SHOCK! For reasons of

electrical safety, the light must

never be cleaned with water or

other fluids or be immersed in

water. When cleaning, only use

a dry, lint-free cloth.

Q

Disposal

The packaging is made

entirely of recyclable

materials, which you may

dispose of at local

recycling facilities.

Contact your local refuse disposal

authority for more details of how to

dispose of your worn-out product.

To help protect the

environment, please

dispose of the product

properly when it has

reached the end of its

useful life and not in the

household waste.

Information on collection

points and their opening

hours can be obtained

from your local authority.

Faulty or used batteries must be

recycled in accordance with

Directive 2006 / 66 / EC and its

amendments. Return the battery

and / or the device through the

appropriate collection facilities.

Q

Warranty

The device has been manufactured

to strict quality guidelines and

meticulously examined before

delivery. In the event of product

defects you have legal rights against

the retailer of this product. Your

legal rights are not limited in any

way by our warranty detailed

below.

Paper Size: 750 x 200 mm ; Folded Size: 50 x 200 mm done by Impala Services Limited

Product specificaties
