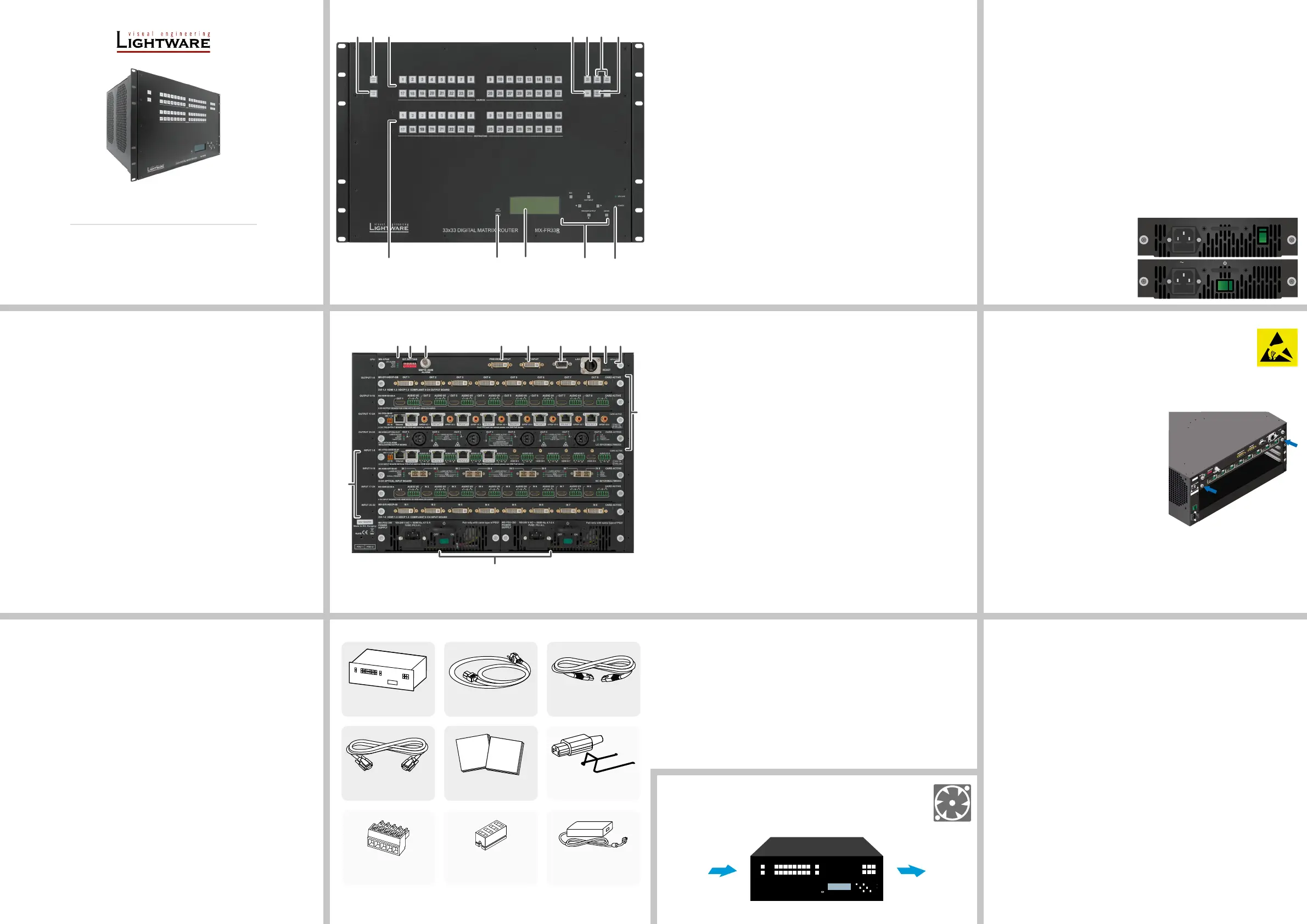

Quick Start Guide

MX-FR9, MX-FR17, MX-FR33L

MX-FR33R, MX-FR65R, MX-FR80R

Further Information

The document is valid with the following rmware version: 3.5.0

The User’s manual of this appliance is available on www.lightware.eu.

See the Downloads section on the website of the product.

Contact Us

[email protected]

+36 1 255 3800

[email protected]

+36 1 255 3810

Lightware Visual Engineering LLC.

Peterdy 15, Budapest H-1071, Hungary

Doc. ver.: 1.2

19200063

1

Output LockLocks and protects one or more outputs.

2

Control LockDisables or enables front panel operations. Red light means

the switching and function buttons are disabled.

3

SourcesButtons to select an input, to select a preset number or to

view the state of the selected input port.

4

EDID ModeThe EDID Mode can be (de)activated by the button. The

illuminated button shows that the mode is active.

5

Take / AutoSwitching between Take and Autotake working modes; keep

the button pressed for 3 seconds to toggle the modes.

6

Preset buttonsPerforming preset operations (Load and Save).

7

Signal PresentThe Signal Present Mode can be (de)activated by the button.

The illuminated button shows that the mode is active.

8

Destinations

Buttons to select an output or to see the state of an output.

9

USB Control

USB connection for Lightware Device Controller Software.

q

Menu Display

Displays status information and menu operation.

w

Menu Navigation

Up, down, left, right, enter, and escape buttons.

e

Status LEDs

Power LED indicates that the unit is powered on. CPU LIVE

blinking LED indicates normal operation.

Introduction

The MX series matrix routers are the highest performance, modular expandable DVI and

HDMI compliant switchers, available in ve different frame sizes. The built-in sophisticated

software and hardware features make these routers the most exible integrated solution for

AV professionals and high-end home theatre applications.

Hybrid Modular Matrix Concept

Lightware’s hybrid modular matrix switchers allow building custom I/O sizes which meet the

user’s requirements. Different types of input and output boards give the maximum exibility

for rental and installation signal transmission. The hybrid architecture allows signal routing

between boards even if they have different connectors. This way any input can be routed to

any or more outputs if the output interface is capable of transmitting the signal.

Front View



The front panel of the matrix switchers look almost the same. The only difference is the

number of source and destination buttons.

Rear View

Box Contents

Front View Legend

1

Status LEDsLED indicators for internal DC power voltages, and alarm.

2

DIP SettingsSpecial settings can be made with these switches.

3

Alarm OutStandard SMPTE 269M alarm output with BNC connector.

4

Preview OutDVI output connector, which is directly connected to a certain

output - see the table below.

5

Test InputDVI input connector, which can be congured as an

alternative for a certain input - see the attached table.

6

RS-232 Port9 pole D-sub female connector for a standard RS-232 port.

7

Ethernet Port

Standard RJ45 connector. This port can be connected to a

computer directly or to LAN via switch/router.

8

Reset

Reboots the matrix; the same as switching it off and on again.

9

CPU Live

CPU live LED blinks to indicate normal operation.

q

Input Boards

Modular input board slots.

w

Power Supplies

Hot swap slots for power supply units - available in

MX-FR80R, MX-FR65R, and MX-FR33R matrix switchers.

e

Output Boards

Modular output board slots.

Rear View Legend

Powering On

Connect the power cords to AC input of the Power Supply Units (PSU). After switching the

mains switch to the ‘I’ position the router starts up. If the mains switch is not available or it was

in the ‘I’ position, then the matrix starts up immediately when the power cord is connected to

the AC source. During the initial self-test and loading of the latest settings, Booting… appears

on the LCD screen and the router reloads its last conguration.



After switching ON, the router reloads the latest settings that were used before it was

switched off. The router has an internal emergency memory that stores all current settings

and tie congurations.

Redundant Power Supplies

FR80R, FR65R, and FR33R frames contain redundant PSUs which can be removed or installed

during operation. Depending on the router’s conguration (number and type of I/O boards)

one or two PSUs are needed to operate. The extra PSU makes the system redundant. Please

consult Lightware support about your system conguration to ensure redundancy. If more than

one PSU is needed for supplying the matrix, make sure that the second PSU gets power not

later than 10 seconds after the rst one is plugged in to prevent overload on the rst PSU.

New PSU for MX-FR33R

Two types of PSUs exist for FR33R frames.

Both can supply the frame, but the two units

are not interchangeable with each other.



Pay attention to install the same

type of PSUs in a matrix!



MX-FR33L, MX-FR17, and MX-FR9 frames contain a power supply unit that is built into the

matrix frame and not redundant.

1

supplied with MX-FR33R

2

supplied with boards with 5-pole Analog audio port

3

jumper blocks and PSU-12VP are supplied with TPS boards

4

PSU-48VP2-120 is supplied with MX-4TPS2-4HDMI boards assembled with PoE add-on

5

PSU-48VP2-220 is supplied with MX-TPS2 boards assembled with PoE add-on

The router frame includes:

Router CPU board (MX-CPU2).

Router input and output boards (depends on the ordered conguration).

Power supply units (depends on the ordered conguration).

Two rack mounting ears (xed to the frame).

Matrix router frameIEC power cableLAN cross-link cable,

CAT5e type, 3m length

RS-232 straight cable

Safety and

Warranty

Info

Quick

Start

Guide

Safety and warranty info,

Quick Start Guide

Phoenix combicon

5-pole connector

2

Mountable power plug

with xing ear (2x)

1



Two rack ears are supplied with the product, which are xed on the left and right side of the

frame. These ears allow mounting the device as a standard rack unit installation.

Board Replacement



Please pay attention to the protection against electrostatic discharge

when touching a board! Do not touch the electrical components on the

board as the electrostatic discharge may damage them!



Please check the orientation of the slots! The input and output slots and boards

have a different type of connectors.

The steps of replacing an input or output board are the followings:

1. Switch off the matrix.

2. Disconnect all the cables from the rear side of

the affected board.

3. Loose the xing screws on the rear side of the

board (see the blue arrows on the gure).

4. Pull out the board and put it in an ESD-safe

bag.

5. Place the new board into the desired empty

slot. Be careful when you insert the board into

the socket connector.

6. Tighten the screws to x the board to the frame.

7. Connect the necessary cables to the boards and switch on the matrix.

8. Connect to the matrix using Lightware Device Controller to set the necessary port

parameters.



To ll all slots or place a blank plate on a not-used slot is highly recommended (

MX-BLANK-IO

,

part no: 52400115).

Jumper block (8x)

3

External Power Supply

Unit for remote power

3, 4, 5

POWER SUPPLY PSU-160100-240 V AC, 50/60 Hz, 3A, FUSE:F3.15 A

MX-PSU-350

POWER

SUPPLY

100-240 V AC50/60 Hz, 4.7-2 APair only with same type of PSU!

OFFON

FUSE: F6.3 A L

2

1

35

4

6

7

8

9

q

w

e

3

12456789

w

q

e

IMPORTANT SAFETY INSTRUCTIONS

Please read and keep the information in the attached safety instructions supplied with the

product before you start using the device.

CAUTION

The MX-CPU2 board has a CR2032 button battery which supplies power to the clock

when the matrix is not powered on. Danger of explosion if battery is incorrectly

replaced. Replace only with the same of equivalent type.

WARNING

Do not ingest the battery, Chemical Burn Hazard. This product contains a coin/button

cell battery. If the coin/button battery cell battery is swallowed, it can cause severe

internal burns in just 2 hours and can lead to death. Keep new and used batteries

away from children. If the battery compartment does not close securely, stop using

the product and keep it away from children. If you think batteries might have been

swallowed or placed inside any part of the body, seek immediate medical attention.



The device may contain boards which are Class 3R laser products. Caution! Invisible

Class 3R laser radiation! Avoid exposure to the beam!

Ventilation



To ensure the correct ventilation and avoid overheating let enough free

space around the appliance, do not cover it and let the ventilation holes free.

The following picture shows the direction of the airow:

Air outlet

Air inlet

8CH OUTPUT BOARD FOR HDMI WITH 3D AND ANALOG AUDIO

MX-HDMI-3D-OB-A

OUT 1

OUT 2

OUT 3

OUT 4

OUT 5

OUT 6

OUT 7

OUT 8

100-240V AC ~

50/60 Hz, 2.5-1.1A

FUSE: F 3.15A L

CPU

POWER



RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION
