LTBATELIM-H
Battery Eliminator (for LT, M2R, M2Ra, DCHR, DCHT, DBU, DBu-LEMO)
TECHNICAL DATA
Rio Rancho, NM, USA
www.lectrosonics.com
P/N 28615 (2-56 1/8)
P/N 28623
(2-56 5/16)
This battery eliminator replaces the batteries and door
on the unit, allowing it to be powered from an external
DC source. The battery eliminator is supplied in a kit
including mounting screws.

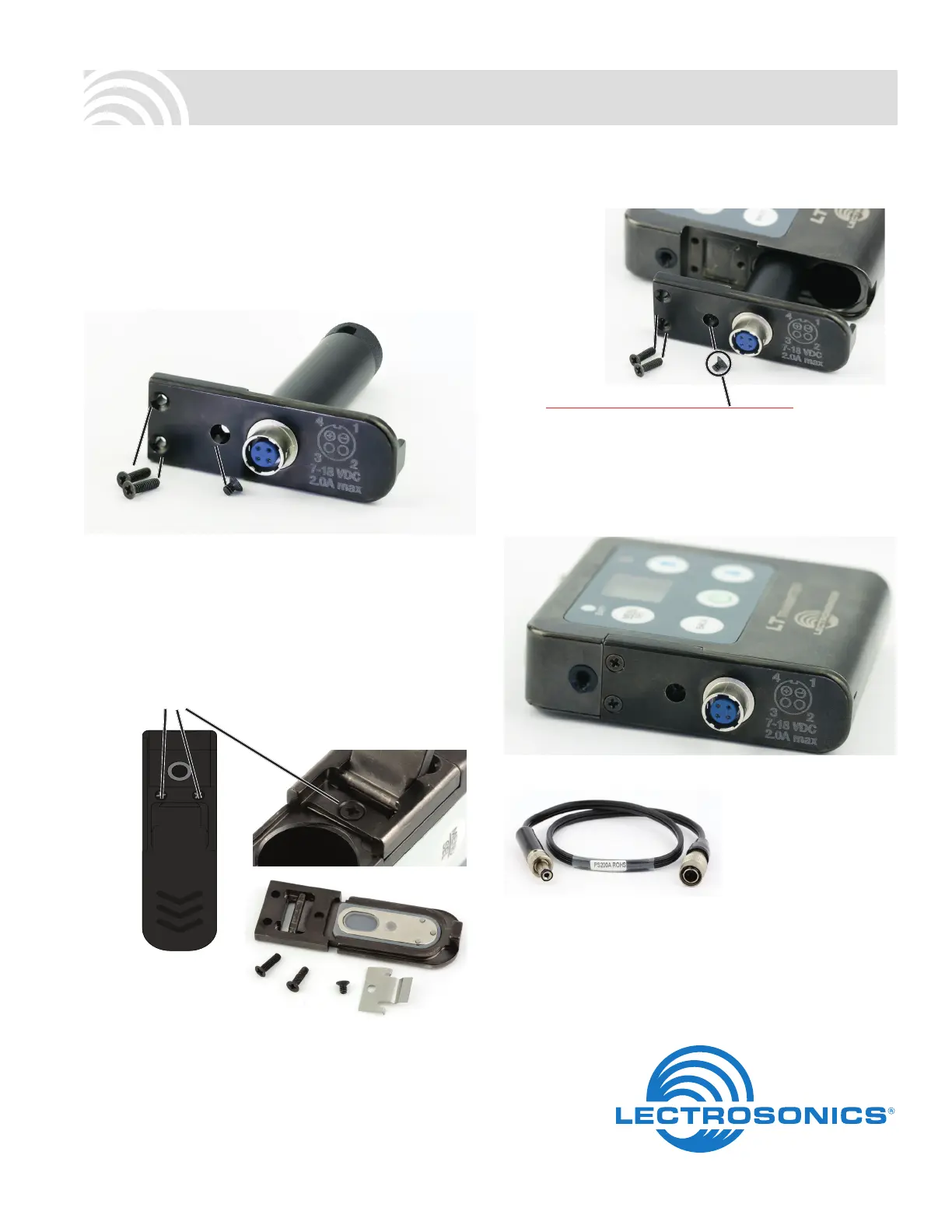

Removing the Battery Door
Remove these screws.
The battery door assembly includes the mechanical
parts shown above. Keep these parts with each other in
case you want to re-install the door later.
Insert the battery eliminator as shown below and fasten
it with the supplied screws.
P/N 28623
(2-56 5/16)
CAUTION: Use only the shorter screw
P/N 28515 (2-56 1/8 in.) in the hole near
the connector. The longer screws may
damage circuit board component.
Tighten all three screws snugly, but be careful not to
overtighten them and damage the threads.
Optional power cable:
PS200A - 15” power cable, Hirose 4 to DC locking con-
nector with .365 in (9.3mm) plug.
Save the door assembly parts
for re-installation later
