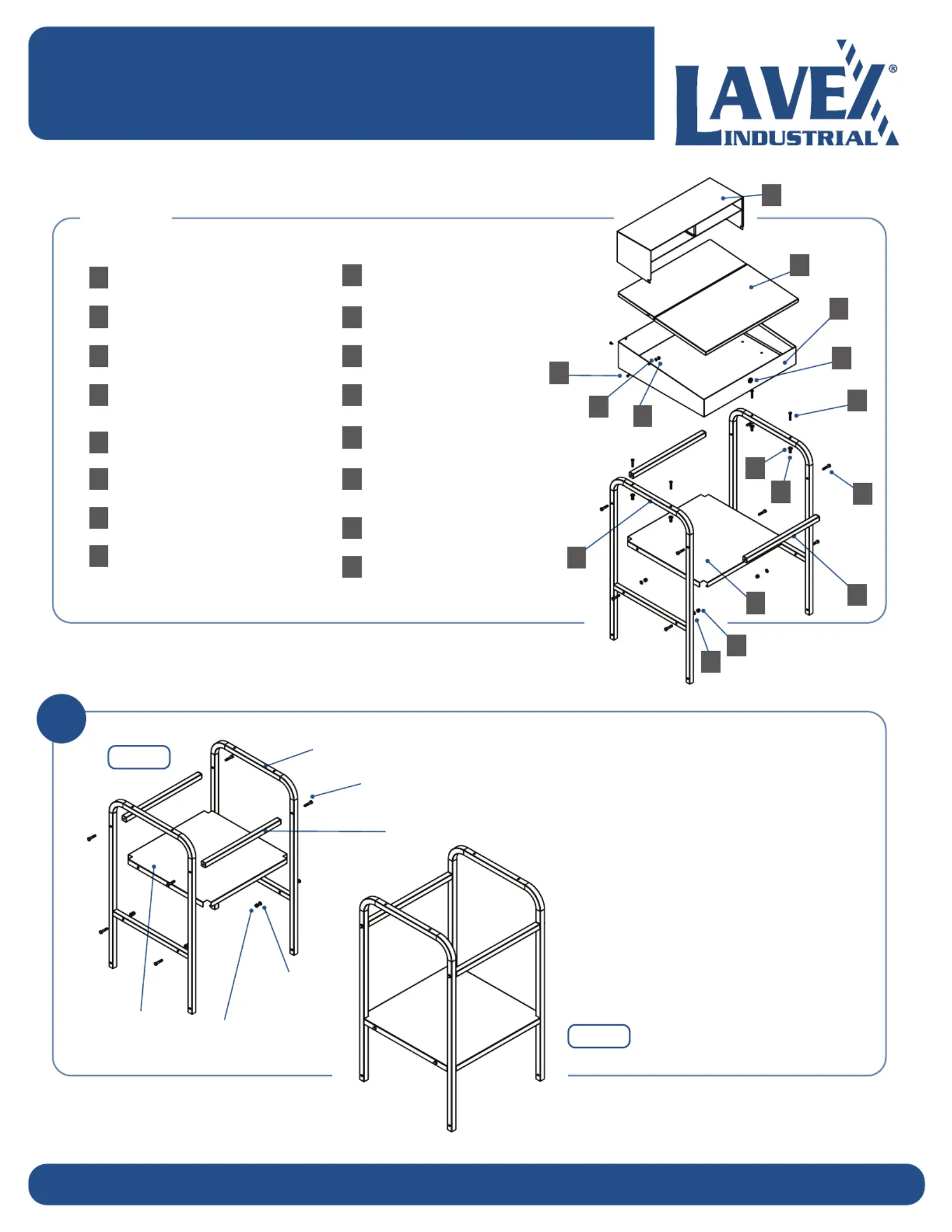

STATIONARY RECEIVING DESK - 257RD2224
ASSEMBLY INSTRUCTIONS
PARTS
( 2 ) Side Underframe
( 2 ) Top Horizontal Tube
( 1 ) Shelf
( 4 ) ⁄" Flat Washer
( 4 ) ⁄–20" Nylon Lock Nut
( 12 ) ⁄–18" x 1⁄" Hex Screw
( 8 ) ⁄–18" Nylon Lock Nut
( 1 ) Drawer Box
( 1 ) MS743 Lock
( 1 ) Top Cover Plate
( 1 ) Top Storage Compartment
( 4 ) M6 Flat Washer
( 4 ) M6 Flange Nut
1
Install the underframes and the shelf. Use
⁄–18" ⁄x 1 " hexagon screws to install the
top horizontal pipes and use x 1 " ⁄–18" ⁄
Hexagon screws, flat washers, and nylon
lock nuts to fix the shelf.
See figures 1 & 2.
Side Underframe
( p1-x2 )
Hex Screw
( p1-x8 )
Top Horizonal Tube
( 2x )
Flat Washer
( p1-x4 )
Nylon Lock Nut
( p1-x4 )
Shelf ( p1-x1 )
Figure 2
1 12/2022
Figure 1
( 4 ) Cross recessed
pan head screw
( 4 ) M6 x 12mm Cross
Recessed Flat Head Screw
( 8 ) ⁄" Flat Washer

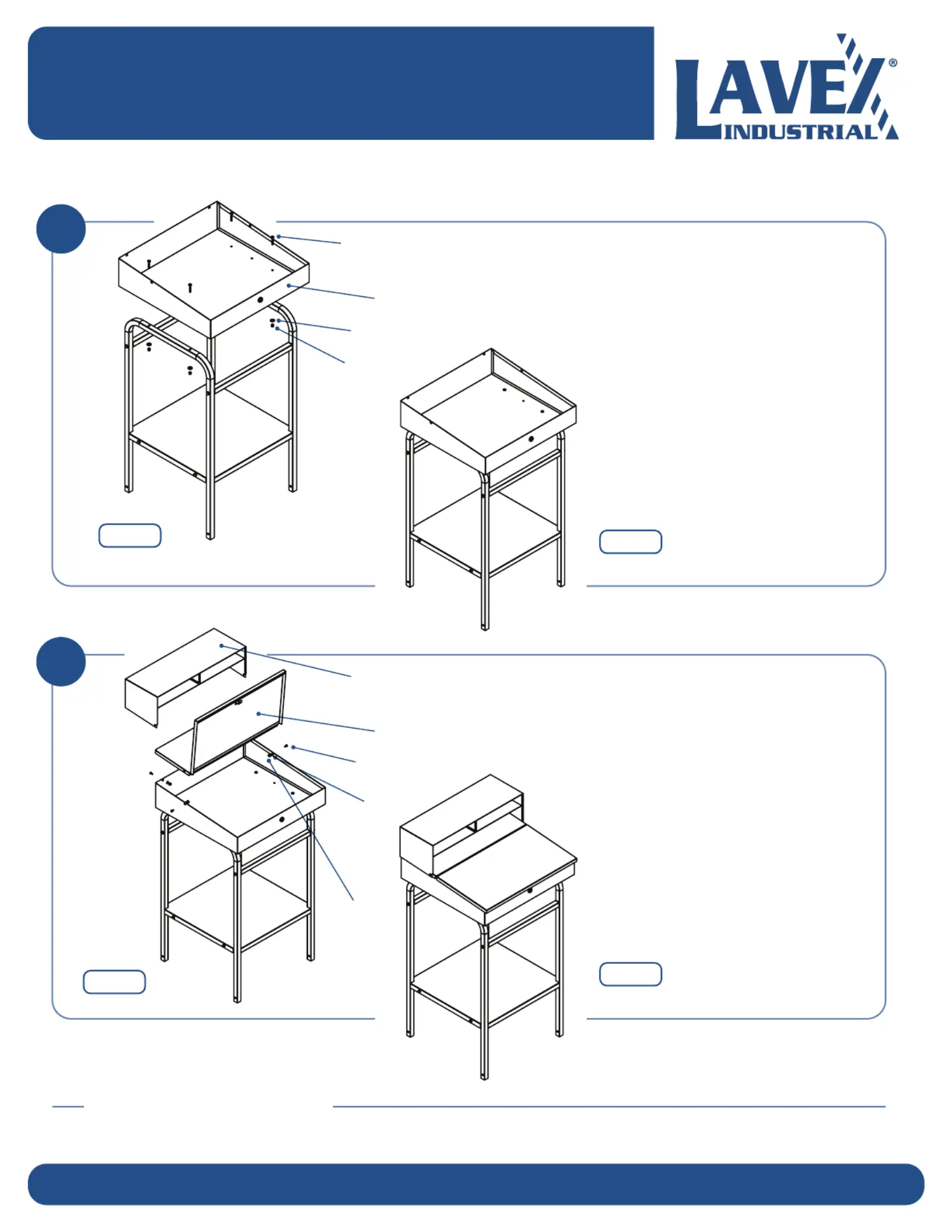

Install the drawer box. Fix the box to the under
frames with ⁄–20
" x
1⁄
"
cross recessed flat
head screws, flat washers, and nylon lock nuts.
See figures 3 & 4.
Cross Recessed
Pan Head Screw ( p2-x4 )
Drawer Box
( p2-x8 )
Flat Washer ( 4x )
Nylon Lock Nut
( p2-x4 )
Figure 3
Figure 4
3
Install the top cover plate and the top
storage compartment. Use M6 x 12mm
cross recessed flat head screws, flat
washers, and nylon lock nuts to fix the
top cover plate and the top storage
compartment to the drawer box. Turn
up the cover plate when installing the
screws for convenient assembly.
See
figures 5 & 6.
Top Storage
Compartment
Top Cover Plate
( p2-x1 )
Flat Washer
( p2-x4 )
Flange Nut
( p2-x4 )
Figure 5
Figure 6
ASSEMBLY COMPLETE
2 12/2022
2
Cross Recessed
Pan Head Screw ( p2-x4 )
STATIONARY RECEIVING DESK - 257RD2224
ASSEMBLY INSTRUCTIONS
