INSTALLATION SHEET
VL47221
LED Vanity Light
START FROM HERE
•
Make sure power is completely off at the fuse box.
•
Have your fixture installed by a qualified licensed electrician
•
Prepare everything in a clear area.
•
Wear gloves at all times during this installation.
•
Read instructions carefully before you start assembly.
•
Keep this instruction sheet for future reference.
Technical Support: 1-877-452-6858
Please Note:
•All Kuzco LED fixtures come with pre-wired LED module(s).
• Unless instructed to do so, please do not touch any part of the LED module(s) as any
unnecessary contact with the module could cause permanent damage.
• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

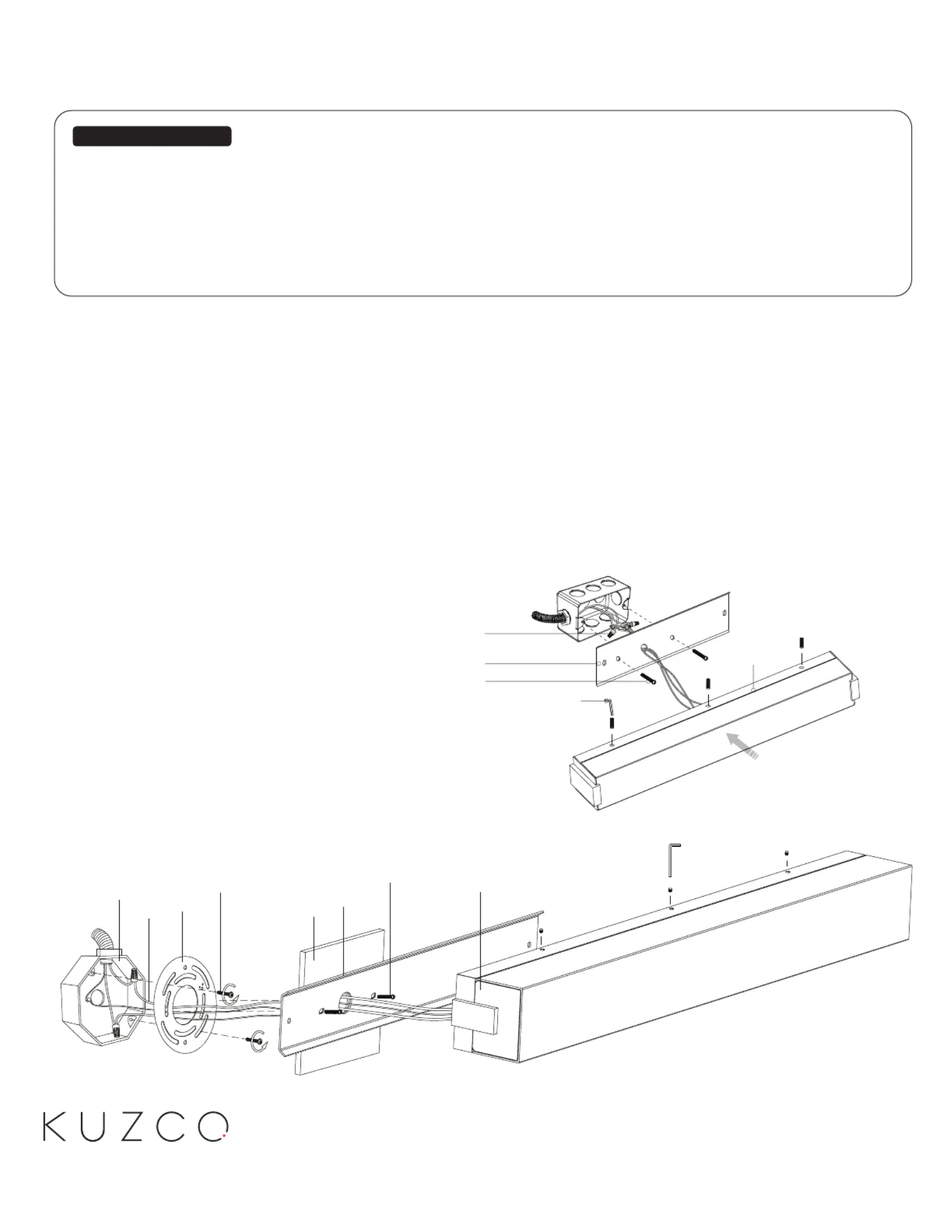

Remove the fixture from its original packaging. Remove
the crossbar from within the fixture by (1c)(3a)
unthreading the set screws and two screws(3b) (2c).
Attach the crossbar to the electrical junction box (1c)
(1a)(1d), using screws provided in the hardware
package.
Make sure to thread the wires through the hole in the
backplates (2a and 2b) and connect all wires correctly G
ground to ground, N neutral wire (white to white), L live
wire (black to black) with provided marettes from the (1b)
hardware package. Attach the backplates to (2a and 2b)
the crossbar with screws (2c). Connect the fixture to the
backplate (2b) and adjust as neccessary. Use the set
screws and allen key provided to lock the fixture in (3b)
place
You have now completed the installation of your
fixture, enjoy.
1.
2.
3.
(Octagon junction box install)
Remove the fixture from its original packaging. Remove the
backplate (1c) from within the fixture (2b) by unthreading
the set screws (2a). Connect all wires correctly G ground to
ground, N neutral wire (white to white), L live wire (black to
black) with provided marettes from the hardware (1b)
package. Attach the backplate to the single gang box (1c)
(1a)(1d), using screws provided in the hardware package.
Attach the fixture to the backplate and adjust as (2b)(1c)
neccessary. Use the set screws and allen key (2a)
provided to lock the fixture in place
1.
2.
3.
(Single gang box install)
You have now completed the installation of your
fixture, enjoy.
19054 28th Avenue Surrey, BC Canada V3S 6M3
T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196
W: kuzcolighting.com
20190313
