Installation Guide SKU#31760

USA/Canada: 1-800-4 KOHLER 1465317-2_A

www.kohler.com

PREPARATION

1.Record your model number for future reference.

2.DANGER: Risk of electric shock.To avoid electric shock, the power must be turned off at the circuit breaker or fuse box before

beginning the installation procedure.

3.DANGER: Risk of electric shock.To avoid electric shock, the outlet box must be properly grounded.

4.Important Information.Inspect the product for any damages. This product is for indoor use only. Observe all local codes.

Please see next page for a larger installation image

TOOLS AND MATERIALS NEEDED

FIXTURE INSTALLATION

1.Remove the fixture and parts bag(s) from the carton. Put them onto a

clean and soft cloth to protect finish. Confirm all parts are included.

2.Loosen knurled nuts (H), remove mounting plate (B) from canopy (F).

3.Attach mounting plate(B) onto outlet box with screws(D). Ensure

ground screw(C) is attached to mounting plate.

4.Lift fixture, lace safety cord (L) around mounting plate(B), then secure

set screw (M) with Allen wrench.

5.NOTICE:To avoid short circuit, make sure wires are not exposed.Fasten

fixture green or bare ground wire to the green or bare copper wire in

outlet box with wire nut (A) or fasten onto ground screw (C) on mounting

plate.

6.NOTICE:To avoid short circuit, make sure wires are not exposed.Fasten

fixture white wire to the white wire in outlet box with wire nut (A). Wrap

the wire connector with electrical tape so that the tape seals the end of

wire nut (A). See diagram 1.

7.NOTICE:To avoid short circuit, make sure wires are not exposed.Fasten

the fixture black wire to the black wire in outlet box with wire nut (A).

Wrap the wire connector with electrical tape so that the tape seals the

end of wire nut (A). See diagram 1.

8.Insert Quick Connector (E) into the opposing quick connector end.

9.Tuck wires carefully inside outlet box. Attach canopy (F) onto mounting

plate(B) with knurled nuts (H).

10.NOTICE: Do not exceed recommended wattage. Rated Max 60W, E12

Type G. (Bulb(s) not included).

11.Install bulb onto the socket, repeat this action for anotherbulb.

12.Place glass shade(K) onto cover(J), then install glass shade and cover

onto canopy(F) with screws (G).

13.Restore power to circuit at breaker or fuse box.

CLEANING: Please clean fixture with a soft and dry cloth ONLY. Cleanglass

with a mild soap.

WARNING:DO NOTlet your exposed skin to touch fire-retarding cotton (F).

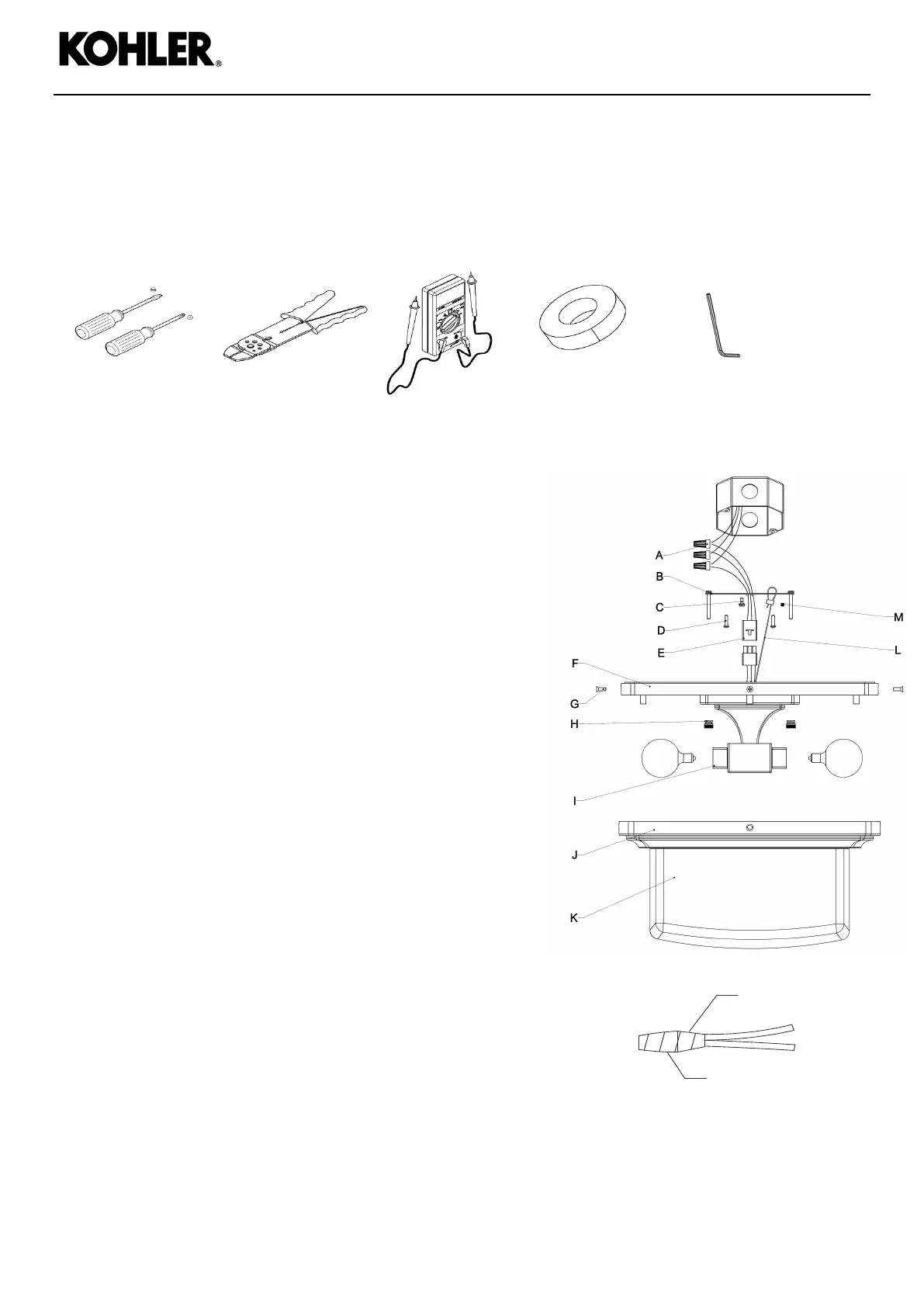

Diagram 1

Approved fastener

(Wire nut)

Electrical tape

Phillips &

Flathead Screwdriver

Wire

Cutter/stripper

Electrical Current

Tester

Electrical

Tape

Allen

Wrench
