Installation Guide SKU#31761/31762

USA/Canada: 1-800-4 KOHLER 1465333-2_B

www.kohler.com

PREPARATION

1.Record your model number for future reference.

2.DANGER: Risk of electric shock.To avoid electric shock, the power must be turned off at the circuit breaker or fuse box before

beginning the installation procedure.

3.DANGER: Risk of electric shock.To avoid electric shock, the outlet box must be properly grounded.

4.Important Information.Inspect the product for any damage. This product is for indoor use only. Observe all local codes.

Please see next page for a larger installation image

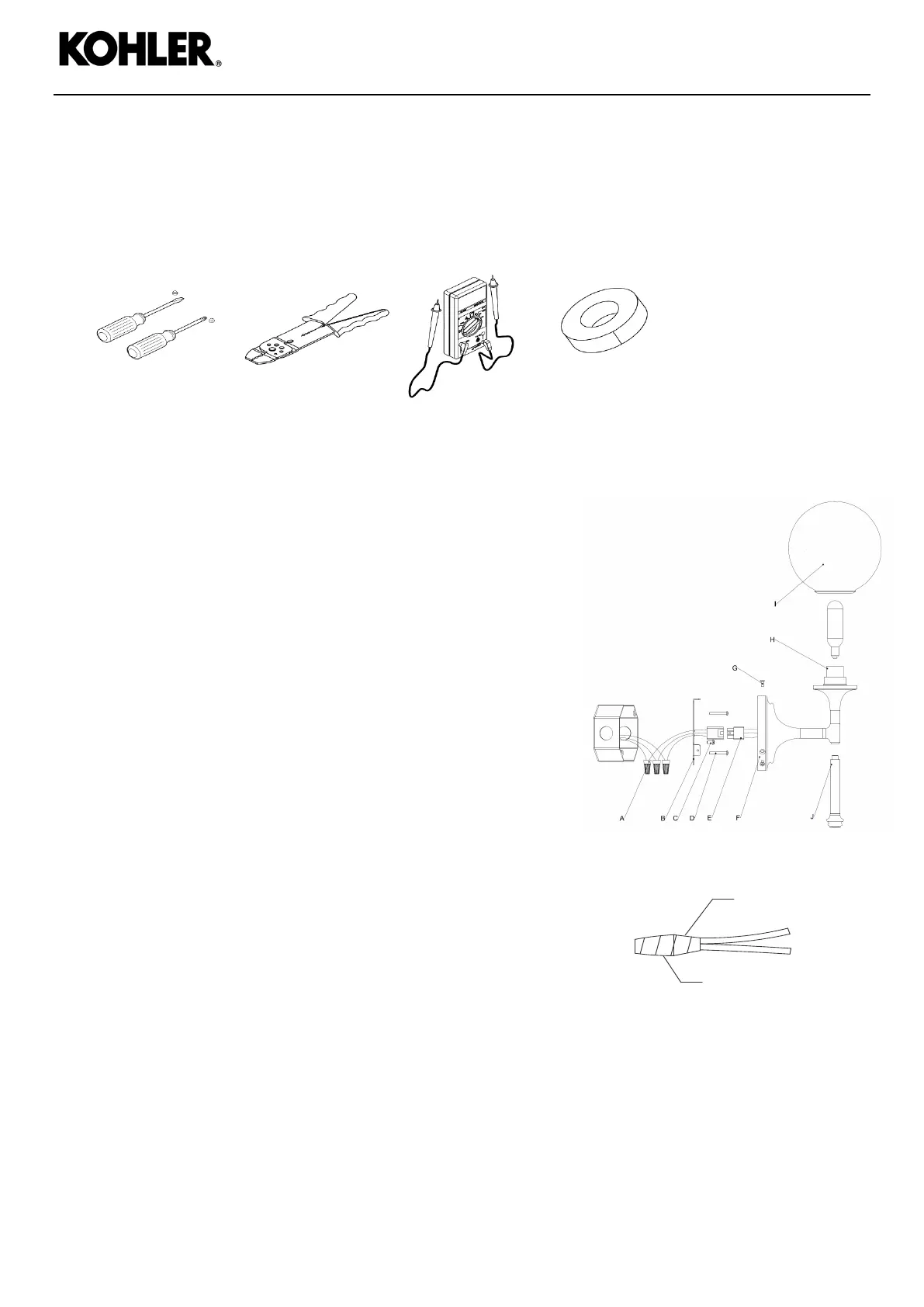

TOOLS AND MATERIALS NEEDED

FIXTURE INSTALLATION

1.Remove the fixture and parts bag(s) from the carton. Put themonto a clean

and soft cloth to protect finish. Confirm all parts are included.

2.Loosen screws (G) and then remove mounting plate (B) from canopy (F).

3.Attach mountingplate (B) onto outlet box with screws (D). Ensure ground

screw (C) is attached to mounting plate(B).

4.NOTICE:To avoid short circuit, make sure wires are not exposed.Fasten fixture

green or bare ground wire to the green or bare copper wire in outlet box with

wire nut (A) or fasten onto ground screw (C) on mounting plate.

5.NOTICE:To avoid short circuit, make sure wires are not exposed.Fasten fixture

white wire to the white wire in outlet box with wire nut (A). Wrap the wire

connector with electrical tape so that the tape seals the end of wire nut (A),

see diagram 1.

6.NOTICE:To avoid short circuit, make sure wires are not exposed.Fasten the

fixture black wire to the black wire in outlet box with wire nut (A). Wrap the

wire connector with electrical tape so that the tape seals the end of wire nut

(A), see diagram 1.

7.Insert quick connector (E) into the opposing quick connector end.

8.Tuck wires carefully inside outlet box. Attach the canopy (F) onto mounting

plate (B) withscrews (G).

9.NOTICE: Do not exceed recommended wattage.

Rated Max 60W, Type T/B10.

(Bulb(s) not included).

10.Install bulb to the socket (H).

11.Installglass shade (I) onto socket(H) by turning it until the connection is tight.

12.Repeat step 9-11 for additionalshades.

13.Attach rod(J) onto fixture by turning it until the connection is tight (SKU31761only).

14.Restore power to circuit at breaker or fuse box.

CLEANING: Please clean fixture with a soft and dry cloth ONLY. Clean glass with a

mild soap.

Phillips &

FlatheadScrewdriver

Wire

Cutter/stripper

ElectricalCurrent

Tester

Electrical

Tape

Approved fastener

(Wire nut)

Electrical tape

Diagram 1
