Quick Start Guide
DN200
2-Channel Active DI Box with Extended Dynamic Range and Sum/Split Options
V 1.0
(1) STEREO INPUT – Connect a line-level audio source via stereo
⁄" TRS cable. Ensure that the L/R INPUTS and LINK THRU jacks
are disconnected when using the STEREO INPUT jack.
(2) PAD Press to reduce the input signal by 20 dB for use
with hot signals.
(3) EARTH – Press to separate the input and output grounds,
potentially eliminating earth/ground loops between
equipment on dierent mains supplies.
(4) L/R INPUTConnect either balanced or unbalanced XLR
or ¼" cables. Ensure that the ⁄" STEREO INPUT jack is
disconnected when using these inputs.
(5) 48 V LED – Lights when the unit receives sucient
phantom power. Note that the DN200 must be powered to
operate correctly.
Although the DN200 will function as a mono Important:
device when only one channel is connected, both channels
should be powered to use stereo, split, or sum modes.
(6) SUM – When engaged, the left and right inputs are
summed and fed to the left and right outputs. Note that
phantom power must be delivered to both output
connections for dual-output operation.
(7) SPLIT When engaged, the left input is fed to the
left and right outputs. Note that phantom power
must be delivered to both output connections for
dual-output operation.
(8) L/R OUTPUT Send the signals to a mixer or recording
interface via balanced XLR cables. Note that the connected
device must be able to provide +48 V phantom power to
these connectors.
(9) LINK THRU – Send the signals to an alternate source
via balanced or unbalanced ¼" cables. Ensure that
the ⁄" STEREO INPUT jack is disconnected when using
these outputs.

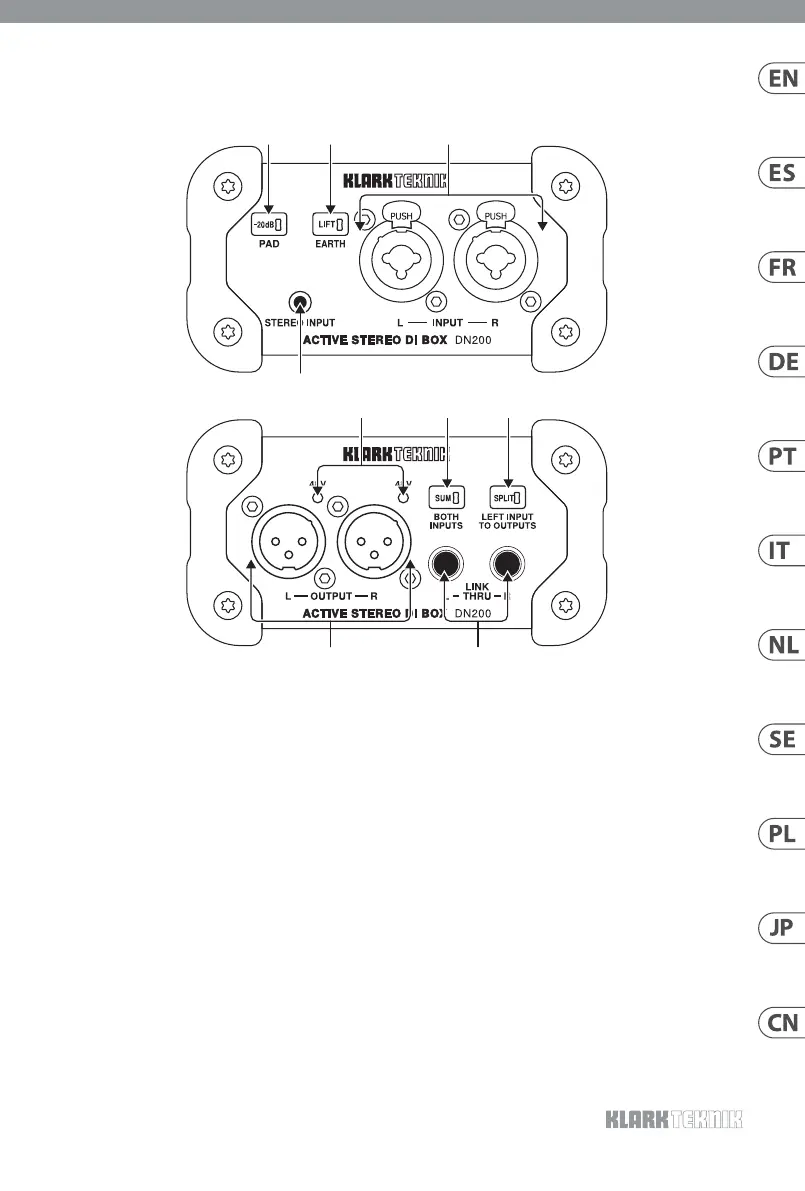

(2) (3)
(7)(6)
(8) (9)
(1)
(5)
(4)
2DN200
Specications
Inputs
Connectors 2 x combo XLR, 2 x ¼" TRS link jacks, ⁄" stereo TRS jack
Impedance 1 M (combo & link jacks balanced), 20 k (combo XLR only),
500 k (⁄" stereo TRS jack unbalanced)
Max input level 28 dBu combo XLR and TRS link jacks (pad enabled),
21 dBu ⁄" TRS jack (pad enabled)
Attenuator 20 dB pad
Outputs
Connectors 2 x 3-pin XLR
Impedance 50 
Max output level 13 dBu with 10 k load, 10 dBu with 600  load
Min load 600
System
Noise -103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by
10 k resistor
Frequency response 20 Hz to 20 kHz, ±1 dB, 10 k load
Distortion (THD + N) Typically <0.005% @ 1 kHz, +10 dBu
Crosstalk <100 dB @ 1 kHz, inputs terminated
Power Requirement
Voltage +48 V phantom
Current consumption <10 mA per channel
Physical
Dimensions 118 x 63 x 142 mm (4.7 x 2.5 x 5.6")
Weight 0.65 kg (1.43 lbs)
Note: Operation Ambient Temperature up to 45ºC
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description,
photograph, or statement contained herein. Technical specications, appearances and other information are subject to change without
notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic,
TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd.
© Music Tribe Global Brands Ltd. 2020 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete
details online at musictribe.com/warranty.
