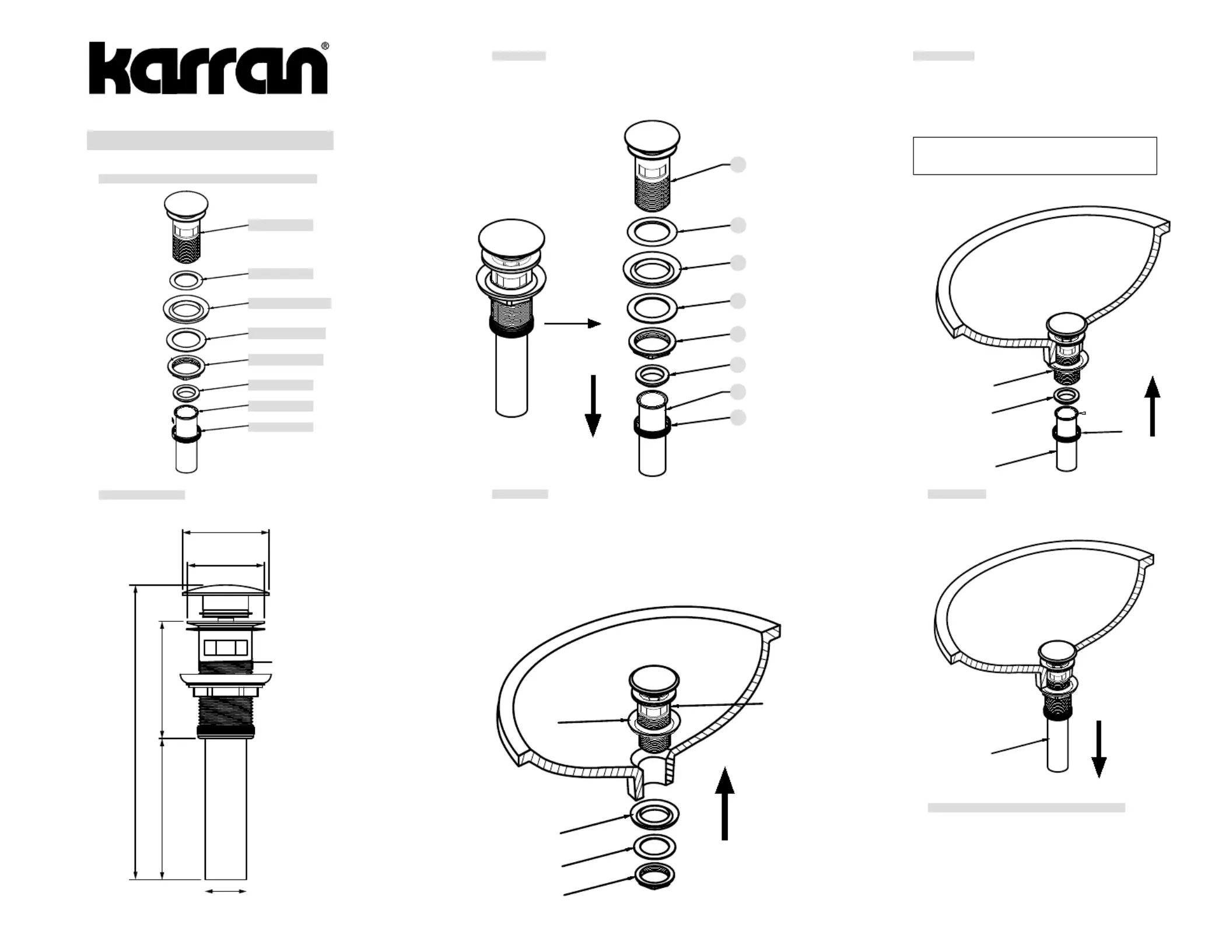

PUOF25 - DIAGRAM AND PARTS BREAKDOWN

STEP TWO

Install the drain body (a), with the rubber washer (b)

attached, into the drain hole of the vanity bowl.

From underneath the bowl, attach concave washer (c)

(narrow end facing up), plastic washer (d)

and mounting nut (e) to drain body (a).

SPECIFICATIONS

STEP ONE

Begin by removing the nut (h), tailpiece (g), mounting

nut (e), plastic washer (d) and concave washer (c)

from the drain body (a).

Note to Installer: Make sure tailpipe washer (f)

is installed into the tailpiece.

CARE & MAINTENANCE INSTRUCTIONS

To keep your drain clean & functioning correctly,

please follow these steps below:

1. Rinse with clean water & dry with a soft cloth.

2. Do not clean with acid, polish, abrasives

or harsh cleaners on your drain.

3. Do not use abrasive scouring pads.

a

b

c

d

Drain Body

Thin Gasket

Concave Gasket

Plastic Washer

Mounting Nut

Gasket

Tailpiece

Nut

e

f

g

h

a

b

c

d

e

f

g

h

h

e

f

g

a

b

c

d

e

g

STEP FOUR

Connect the tailpiece (g) to the p-trap.

PUOF25

STEP THREE

Tighten the mounting nut (e) with an adjustable

wrench until snug. Thread connector (h) with

tailpipe (g) attached, onto the drain body (a) and

hand-tighten.

M41 x 1½”

3 ½"4"

8 "⅝

2 ½"

1 ¼"

2 "⅝

1 "⅝
