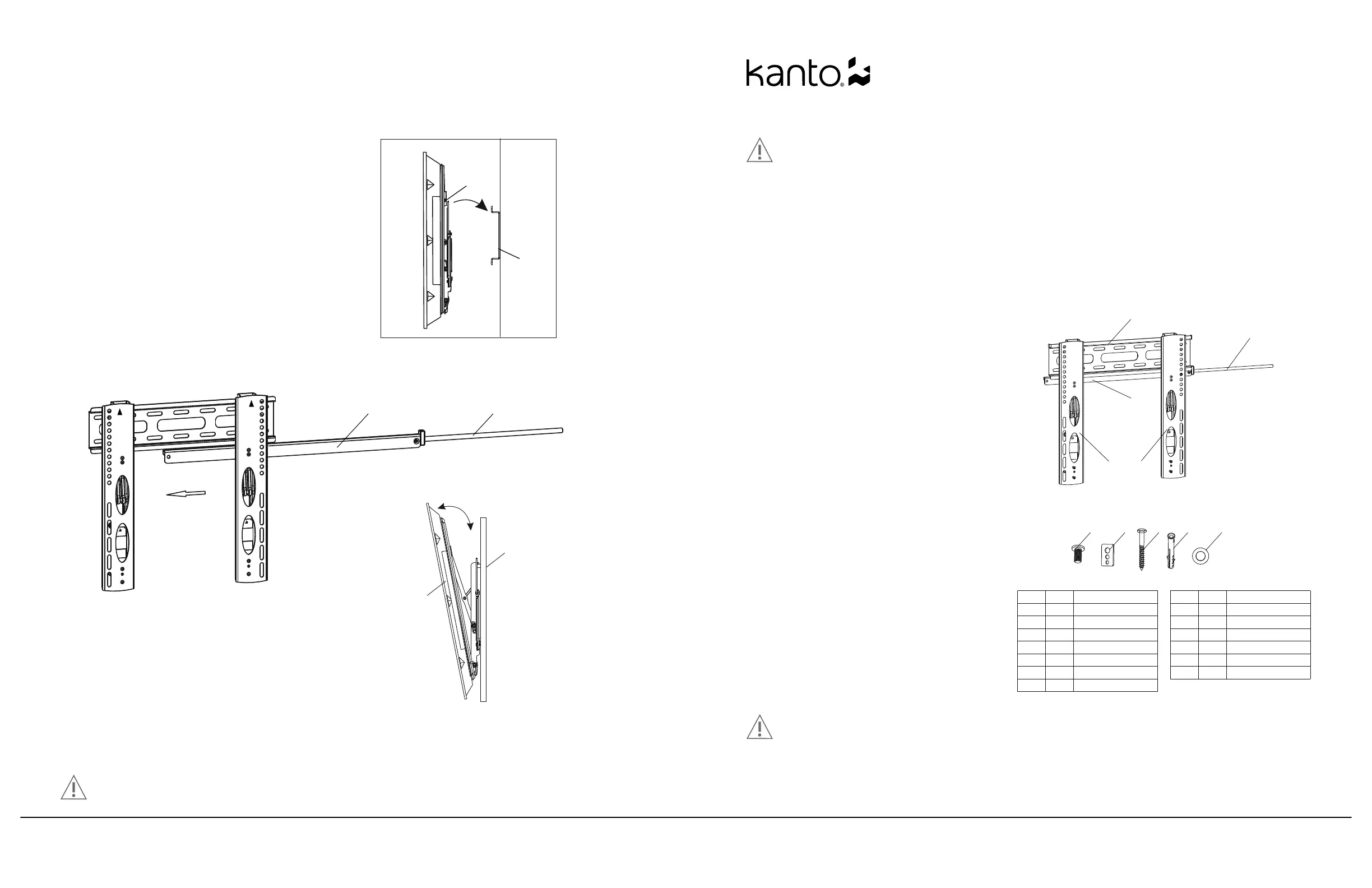

Models KT2337 and KT3260

Assembly Instructions

Supporting your digital lifestyle

™

4

Kanto AV Systems

®

Richmond, British Columbia | Toll Free 1.888.848.2643

www.kantoav.com | sales

@

kantoav.com

Read these instructions fully before installation

of this mount. If you do not understand these

directions, or have any doubts about the safety

of the installation, please consult a qualifi ed

installation contractor to install this mount.

Make sure there are no defective or missing

parts. Do not use defective parts. If you are

uncertain if the part is defective call Kanto AV

Systems directly at 1-(888) 848-2643. Kanto AV

Systems can not be liable for property damage

or injury caused by incorrect mounting, incorrect

assembly, lifting or incorrect use of this product.

This product should NOT be mounted on steel

stud walls or old cinder block walls. Consult a

qualified installation contractor if you are unsure

about the type of wall you may have. We make

every effort to assure all necessary hardware is

included. If there is hardware missing please call

Kanto AV Systems directly at 1-(888) 848-2643.

Required Tools: 3/16” wood drill bit, 3/8” masonry

bit for brick or concrete block installations, wrench

or socket set, Phillips screwdriver.

CAUTION

The maximum loading weight is 44 lbs (20 kg) for the KT2337 and 66 lbs (30 kg) for the KT3260. This wall mount is

intended for use only with the maximum weights indicated. Use with products heavier than the maximum weights

indicated may result in instability causing possible injury.

Thank you for choosing Kanto AV Systems fl at panel wall mount.

This mount will tilt your TV 0 – 14º without the use of tools.

Supplied Parts and Hardware

CAUTION

The wall you plan to use to affi x the Kanto mount to must be able to support more than 5 times the weight of the

television and the wall mount combined. Do not use this product for any purpose other than to mount a fl at panel TV on a

vertical surface as outlined in this manual. Improper installation may cause damage to your TV or serious injury. This product

should NOT be mounted on steel stud walls or old or weak cinder block walls. Consult a qualifi ed installation contractor if

you are unsure about the type of wall you may have.

Step 3: Attach TV to the Wall

Plate and engage Locking Bar

Diagram 4

Diagram 5

Use two people to lift and position the TV onto the

Wall Plate

(1). To complete the installation of your new

Kanto mount, carefully hook the top of the brackets

(2 and 3), over the top of the wall plate (see Diagram 4).

Use the Locking Bar (4) to prevent the TV from being

removed or accidentally knocked off of the Wall Plate.

When the Locking Bar is inserted half-way into the Wall Plate,

use the Rotating Rod (5) to fully insert the Locking Bar (4)

(see Diagram 5).

WARNING

Use two people to lift and position the TV onto the Wall Plate.

1

2

a

4

b

1

1

4

1

4

Wall Plate

ID

Left Bracket

QtyDescriptionIDQtyDescription

Locking Bar

1

4

2

3

Square Washer

Lag Bolt

Wall Anchor

Lag Bolt Washer

M6×16 mm Bolt

M5x16 mm Bolt

51Rotating Rod

4

4

f

g

h4

d4

4e

c4

5

a–dhegf

31Right Bracket

M4x12mm Bolt

M4x16mm Bolt

54

2, 3

1

LEFT

FRONT

RIGHT

0º – 14º

WALL

TV

UP

UP
