KNX Combination sensor

Ref.-no.: WS 10 KS, WS 10 KS DCF

Operating Instructions

Combination sensor

1. Safety warnings

Attention:

Electrical equipment must be installed and fitted by qualified

electricians only and in strict observance of the relevant accident

prevention regulations. Failure to observe any of the installation

instructions may result in fire and other hazards.

2. Function

•The combination sensor can measure wind speed, precipitation

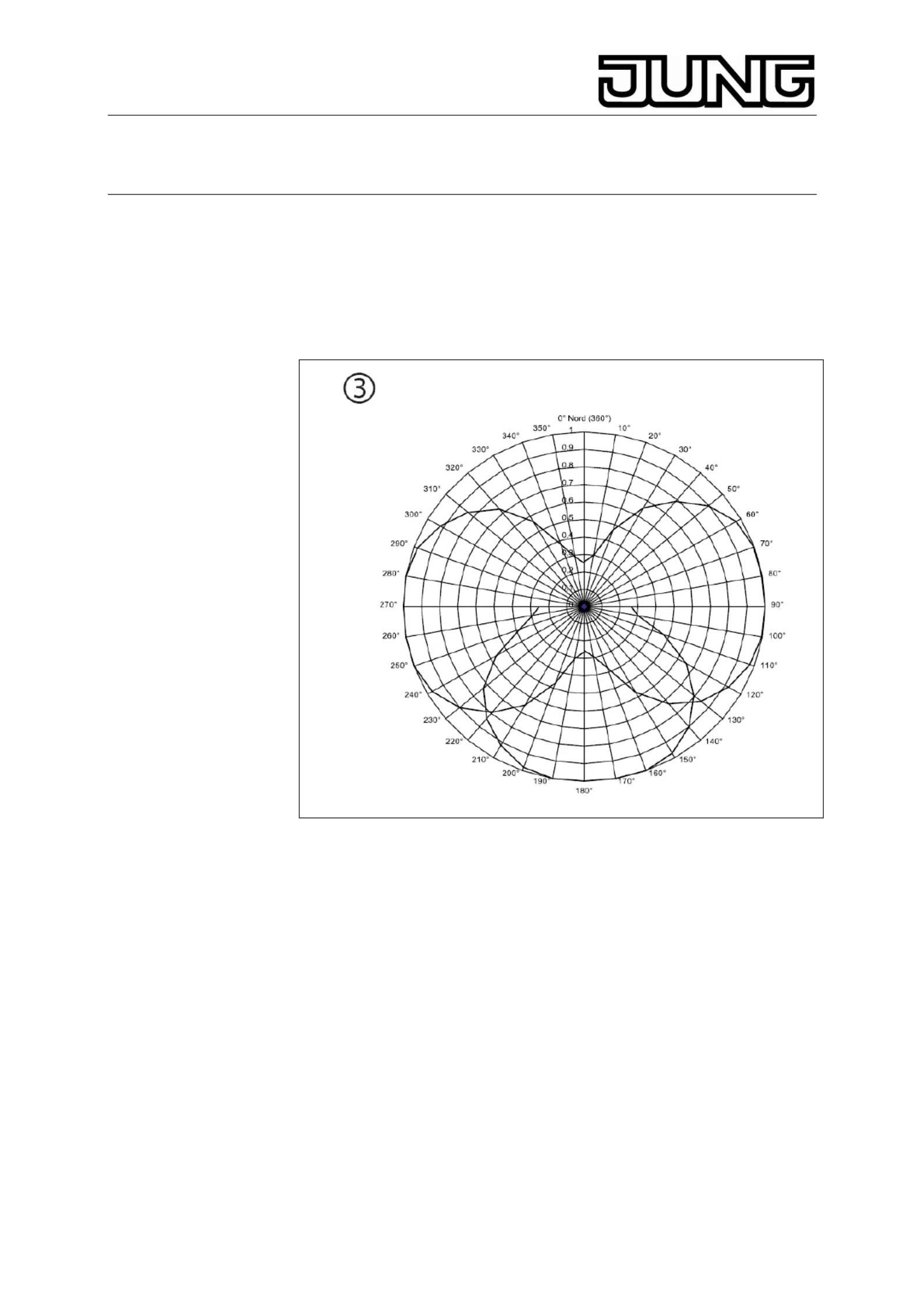

brightness and twilight. Brightness can be measured separately for

the cardinal points East, South and West.

•The combination sensor can be directly connected to a weather

station (e.g. Art. no. 2224 REG W) which ensures further

processing of th measured data and transmission to the bus in the

form of switching or value telegrams. Bus subscribers as, for

instance, the Info-Display ..2041.., the „Facility-Pilot“ visualization

software and the LCD annunciator and control panel MT 701 can

thus intervene into control processes, generate messages, or

control weather-dependent processes. Resulting applications are in

building services management control engineering, greenhouse

control, or in further processing of the collected data in control and

operating units.

•The combination sensor Art. no. WS 10 KSDCF is equipped with

DCF77 receiver which can receive the legal German time and

transmit the signals to the KNX/EIB bus (e.g. to synchronize

KNX/EIB clocks).

•To ensure trouble-free service even in case of frost, the

combination sensor can be heated.

•The combination sensor needs an external 24 V power supply, Art.

no. WSSV10.

Stand: Mai-07 325 552 23
