Installation Instructions – English
Schedule 40 Bath Waste Kits
Schedule 40 Rough-In Bath
Waste Kit with Quick Test

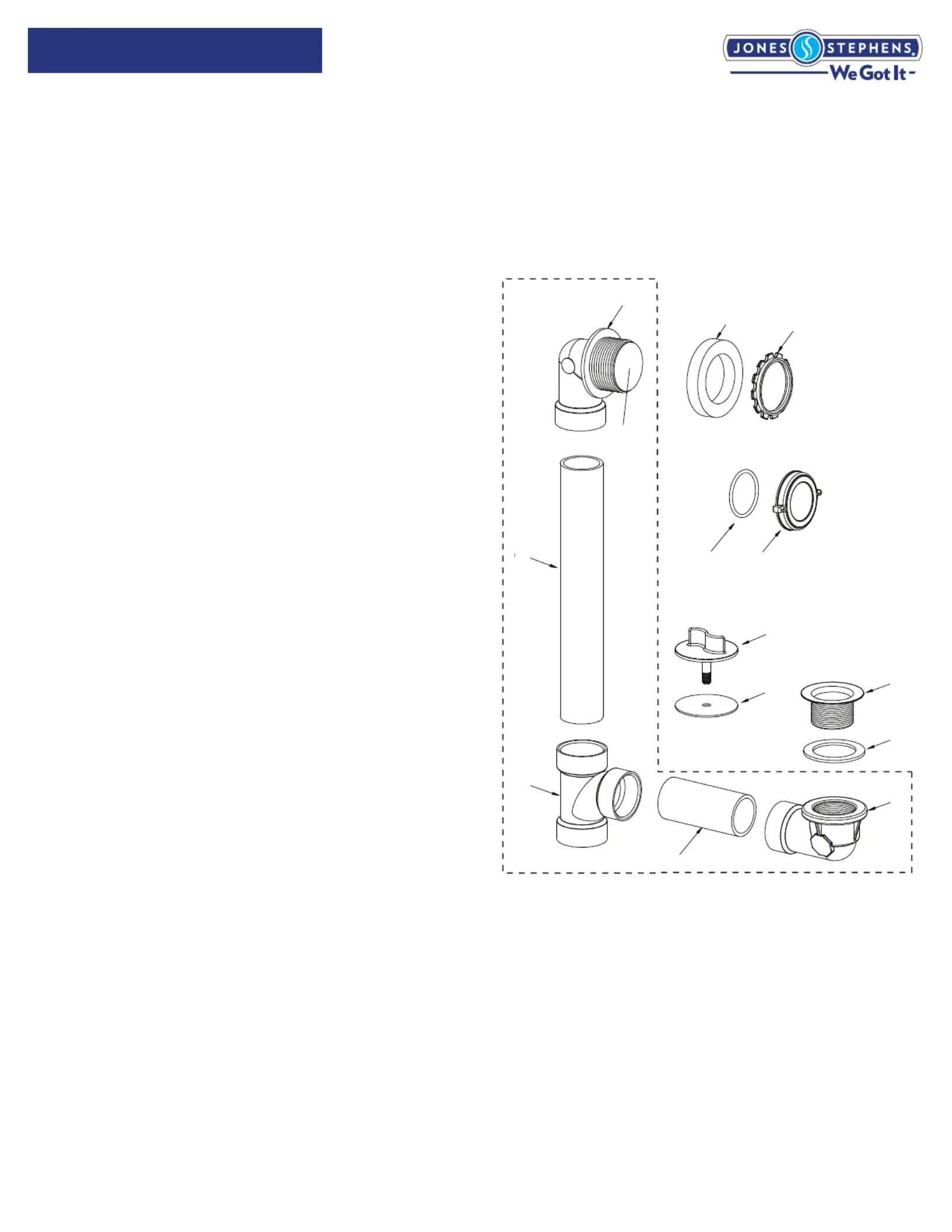

Parts List
A. Spud
B. Drain Gasket
C. Drain Elbow
D. Schedule 40 Pipe
(Drain Tube)
E. 1.5" Tee
F. Schedule 40 Pipe
(Overflow Tube)
G. Overflow Elbow
H. Overflow Gasket
I. Retainer Nut
J. O-Ring
K. Test Nut
L. Test Cap
M. Test Cap Gasket
Additional Parts Needed
•
Pliers
•
PVC Cement
Installation Instructions
1. Cut the 1-1/2" Schedule 40 pipes (D and F) to the desired
lengths to fit the tub.
2. Using the proper solvent cement, assemble the bath drain
pipes and fittings (C–G).
3. Place the overflow gasket (H) onto the overflow elbow
(G) and insert into the tub overflow hole from the back of
the tub.
4. Screw the retainer nut (I) onto the overflow assembly from
the inside of the tub. Hand-tighten only.
5. Secure the drain elbow (C) and drain gasket (B) under the
tub, by screwing in the spud (A) through the tub drain hole
from inside the tub.
If not testing, skip to Step 7.
6. Screw the test cap gasket (M) and the test cap (L) into the
spud (A) and test the system. Once testing is complete,
remove the test cap gasket and the test cap.
Note: If the test membrane on the overflow elbow (G) is
damaged, you can use the O-Ring (J) and the Test Nut (K)
on the overflow elbow (G) to test the system.
7. Cut away the test membrane from the overflow elbow
assembly (G).
A
B
C
D
E
F
G
H
I
J
K
L
M
