C o n t r o l 3 2 1 C / C T

C o n t r o l 3 2 2 C / C T

C o n t r o l 3 2 8 C / C T

C o n t r o l 3 1 2 C S

User’s Guide

3 0 0 S e r i e s

TABLE OF CONTENTS

Product Description

Product Feature Identiﬁcation

Wiring Instructions

Control 328C/CT System

Assembly

Control 321C/CT, Control

322C/CT & Control 312CS

System Assembly

Painting the Grille

Maintenance

Accessories

Contacting JBL Professional

Speciﬁcations

JBL Professional Control 300 Series

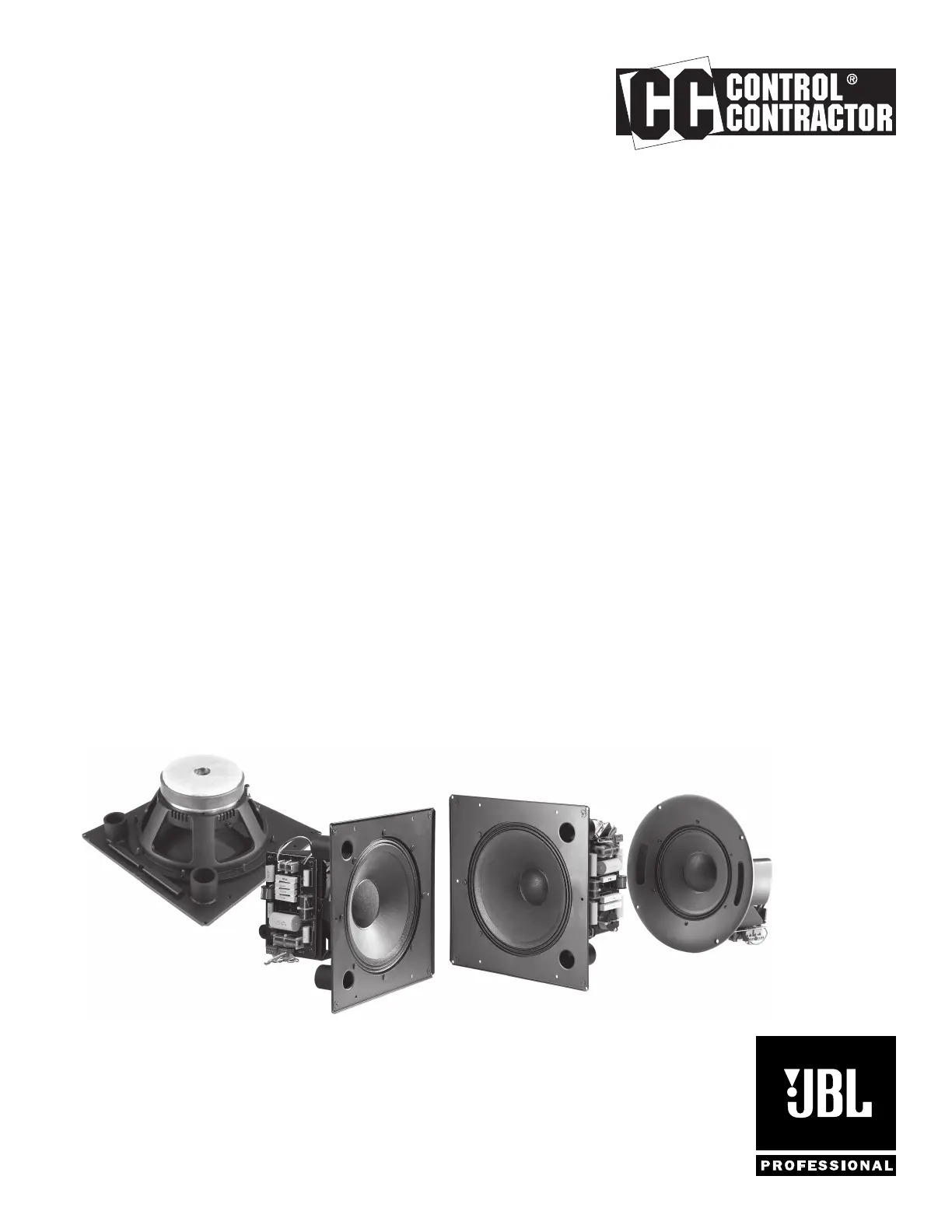

Control 321C - A coaxial design that features a 12” Kevlar-

reinforced cone on the woofer coupled with JBL Professional’s

2412 Compression Driver. The Control 321CT offers the same

driver compliment as the Control 321C but also includes a multi-

tap transformer for use on 70V or 100V line distribution systems.

Control 322C - A coaxial design that also features a 12” Kevlar-

reinforced cone on the woofer coupled with JBL Professional’s

2407H Compression Driver and offers higher power handling

capabilities than Control 321 models. The Control 322CT

offers the same driver compliment as the Control 322C but also

includes a multi-tap transformer for use on 70V or 100V line

distribution systems.

Control 328C - A smaller coaxial design that features a

8” Kevlar-reinforced cone on the woofer coupled with JBL

Professional’s 2412 Compression Driver. The Control 328CT

offers the same driver compliment as the Control 328C and but

includes a multi-tap transformer for use on 70V or 100V line

distribution systems.

Control 312C - An 8 ohm, 12” Kevlar-reinforced cone for

extended bass requirements.

JBL Professional Control 300 Series

PRODUCT DESCRIPTION

JBL Professional Control® 300 Large Format, In-Ceiling Loudspeakers are designed from the

ground up to provide optimal performance for the most demanding installed sound applications.

Thanks to the conical constant coverage waveguide design, Control 300 Series Loudspeakers

feature exceptional broadband control ensuring extremely even coverage and remarkably

consistent performance. The Control 321C/CT, 322C/CT, 328C/CT and 312CS represent the

state of the art in in-ceiling loudspeaker systems design.

Product specificaties

Merk:	JBL
Categorie:	Speaker
Model:	Control 321C
Kleur van het product:	Zwart
Gewicht:	7300 g
Breedte:	366 mm
Diepte:	366 mm
Hoogte:	223 mm
Gewicht verpakking:	8800 g
Materiaal behuizing:	Metaal
Connectiviteitstechnologie:	Bedraad
Diameter:	366 mm
Gemiddeld vermogen:	250 W
Impedantie:	5.6 Ohm
Audio-uitgangskanalen:	- kanalen
Speaker plaatsing:	Inbouw in de muur/plafond
Aantal drivers:	1
Woofer:	Ja
Frequentiebereik:	34 - 18000 Hz
Gevoeligheid:	94 dB
Versterkeraansluiting (binding post):	Ja
Diameter woofer:	12 "
Diameter hogetonenluidspreker:	1 "
Tweeter:	Ja
Crossover frequentie:	1800 Hz
Driver cone material:	Kevlar
Diameter spreekspoel:	50 mm
