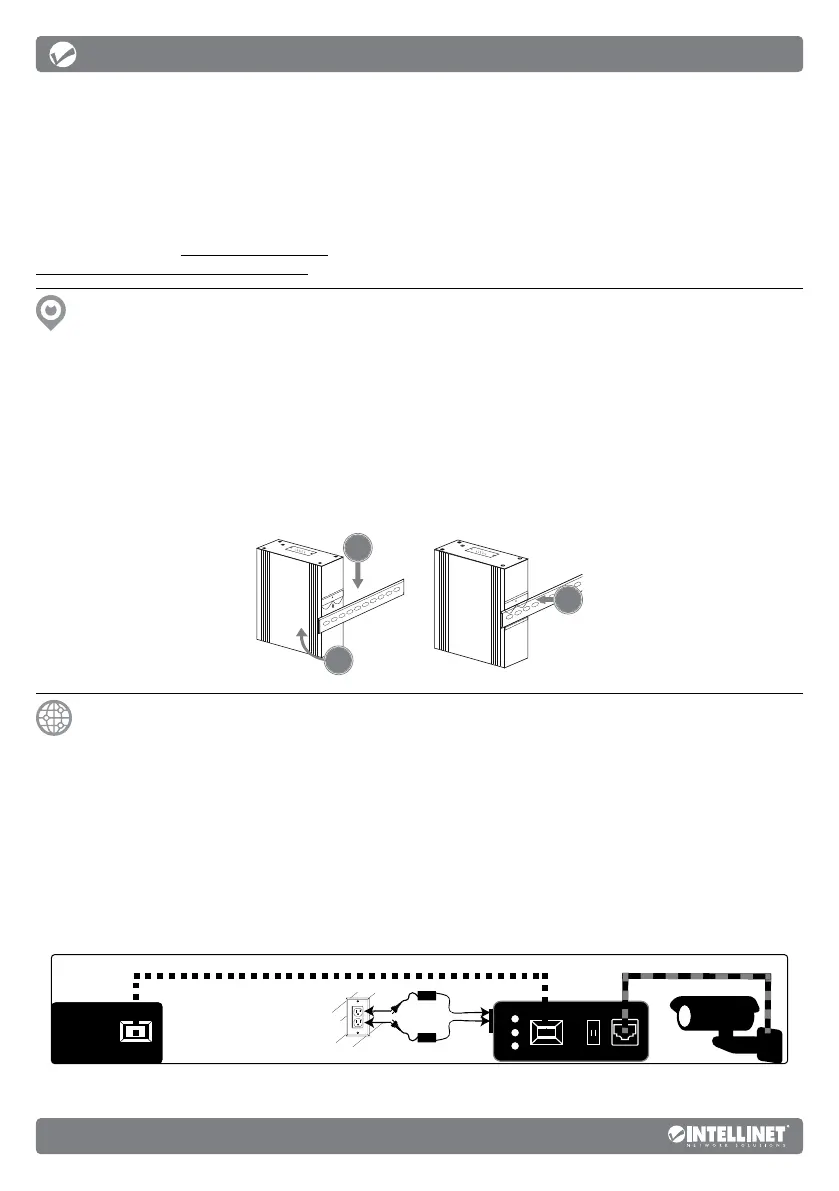

Media converters connect two Ethernet networks over a longer distance using fiber optic cable.
Features
• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
• One SFP port for 1000Base-X optical transceiver modules and distances up to 120 km (75 mi.)
• IP40 slim-type metal housing to withstand harsh industrial conditions
• Option for DIN-rail installation
• Two redundant DC inputs (12 - 56 V) with terminal block
For specifications, visit intellinetnetwork.com. Register your product at
register.intellinet-network.com/r/508971 or scan the QR code on the cover.
Placement
Desktop Installation
Prior to use, place/position the device:
• on a level surface that can support the device with at least 25 mm (approx. 1”) of clearance for ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers;
• within 100 m (approx. 328’) of network devices it’s to be connected to.
DIN-Rail Installation
1 Angle spring of mounting clip over top lip of DIN rail.
2 Push device down till clip clicks onto rail.
3 Ensure installation is stable.
Connections
This product requires an SFP transceiver module that provides fiber optic connections.
1 Insert the transceiver into the media converter and route the fiber optic cable into the transceiver.
2 Route the other end of the fiber optic cable into a suitable port in your fiber optic network.
Maximum length and fiber cable specification depend on the model.
RJ45
Connect the UTP port of the media converter to powered RJ45 device; e.g., to a network camera. Cat5e or better
cabling is recommended.
3
1
2
Example
TX RX
Fiber
Network
Gb Fiber (120 km/74.5 mi.) Gb RJ45 (100 m/300 ft.)
TX RX
12 V – 56 V
2
Instructions
English
