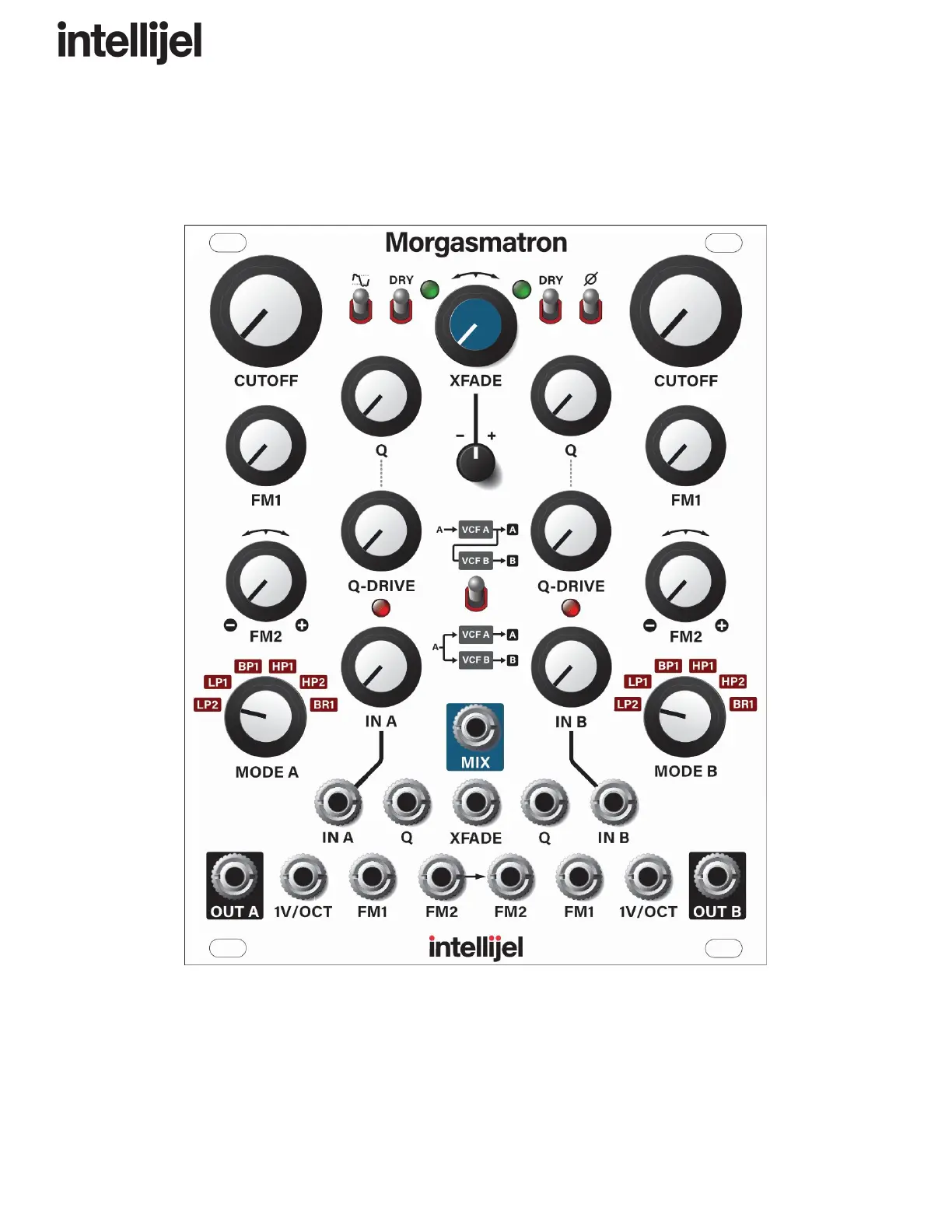

Pagina 1/17
Morgasmatron Manual
Morgasmatron
Dual Multimode Self-Oscillating VCF and Crossfader
Manual Revision: 2018.02.04
Morgasmatron Manual
Table of Contents
Table of Contents
Overview
Installation
Before Your Start
Installing Your Module
Front Panel
Controls for Filters A & B
Controls for Filter Interaction
Inputs & Outputs For Filters A & B
Inputs & Outputs For Filters Interaction
Patch Examples
Dual Sine Wave Oscillator
Synth Voice
Ringmod
Overdrive With Tone Control
Overdrive With Wet/Dry Control
Signal Flow
Technical Specifications
Page 1
Morgasmatron Manual
Overview
This is the third generation of Intellijel’s legendary Korgasmatron filter designed in collaboration
with David G. Dixon. For obvious reasons, we considered naming it the Korgasmatron III. But
once we experienced the purity and range of its finely re-tuned filters; the warmth of its
soft-clipping; the beefiness of its Q-drive; the aggressive howl of its all new overdrive circuit; the
additional Xfade options; and its clangorous new ring modulation capabilities, we knew it was
something much more than a Korgasmatron III. It was a MORgasmatron!
The Morgasmatron features two completely independent six-mode filters (labeled “A” and “B”)
— each with its own mode-select knob, input, output, cutoff, resonance, Q-drive and gain
control. Each filter has a pair of CV inputs (one with a built-in attenuator and the other with a
built-in attenuverter) for modulating cutoff, and another CV input for modulating resonance. Both
filters self-oscillate at maximum Q, and produce pitched sine waves that track the two separate
1V/OCT inputs.
You can use the two filters independently of one another, or you can use them together (in
either a series or parallel connection) and smoothly crossfade between them using either the
XFADE knob or the XFADE CV input and built-in attenuverter. You can flip the DRY switches to
instantly bypass either or both filters; invert the phase of Filter B; or overdrive Filter A by
switching on the new Overdrive circuit. A MIX output provides (as you might suspect) a mixed
output of the two filters.
Page 2
