SETTING UP YOUR EXTENDER KIT

1Locate your AV device’s remote control (IR) sensor. To nd it, shine a

ashlight at the front of your AV device and look for an “eye” that

resembles the emitters on the cable. If you can’t locate it, check the

documentation that came with your AV device.

2Remove the adhesive backing from an emitter, then stick it close to

and pointed towards the remote sensor on your AV device.

3Remove the adhesive backing from the remote control receiver, then

stick it to the front of your AV cabinet or on or near your TV. It needs

to be in the line-of-sight of your remote control. Be sure it does not

cover the remote control sensor on your TV.

4Connect the USB power connector to either the TV’s USB port or to

the AC adapter and then into a wall outlet.

5Aim the AV device’s remote control at the remote control receiver.

Note: The emitters and receiver work with infrared, not visible, light, just like

your remote control (so you won’t see any lights blinking or ashing).

PACKAGE CONTENTS

• In-Cabinet Remote Control Extender Kit

• AC adapter

• Quick Setup Guide

FEATURES

• Enables remote control of four Audio/Video (AV)devices that are

located behind closed doors, cabinets, or walls

• Simple to install and use

• Long cable lengths allow for AV devices to be placed up to

10 ft. (3 meters) from the remote control (IR) receiver

• Built‐in adhesive for easy attachment to AV devices

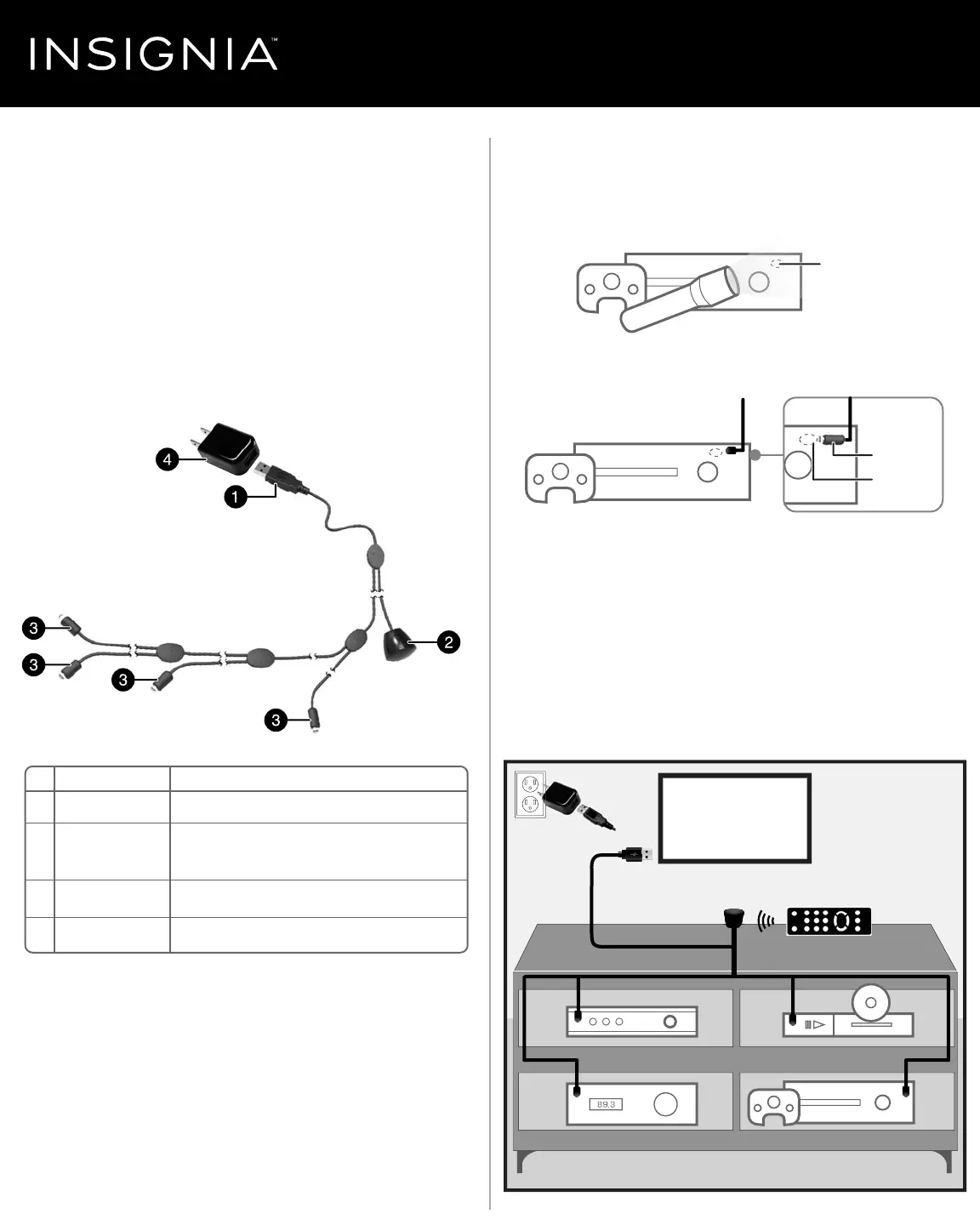

Quick Setup Guide

|

NS-HZ315

In-Cabinet Remote Control Extender Kit

Before using your new product, please read these instructions to prevent any damage.

# DESCRIPTION

1USB power connector

2 Remote control

receiver (IR)

3 Emitters (IR)

4 AC adapter

FUNCTION

Connect to the AC adapter or a USB port on the TV or monitor.

Receives the signal from the remote control.

Transmits remote control signals to the AV devices.

Connect to a wall outlet.

TV

Remote control receiver

AV device remote control

USB

connector

OR

AC adapter

AC

adapte

r

Blu-Ray/DVDCable/STB

Gaming device

AV receiver

Emitter

Emitter

Emitter

Emitter

Device remote

IR sensor

Emitter

Device remote

IR sensor
