User Manual

Product Story

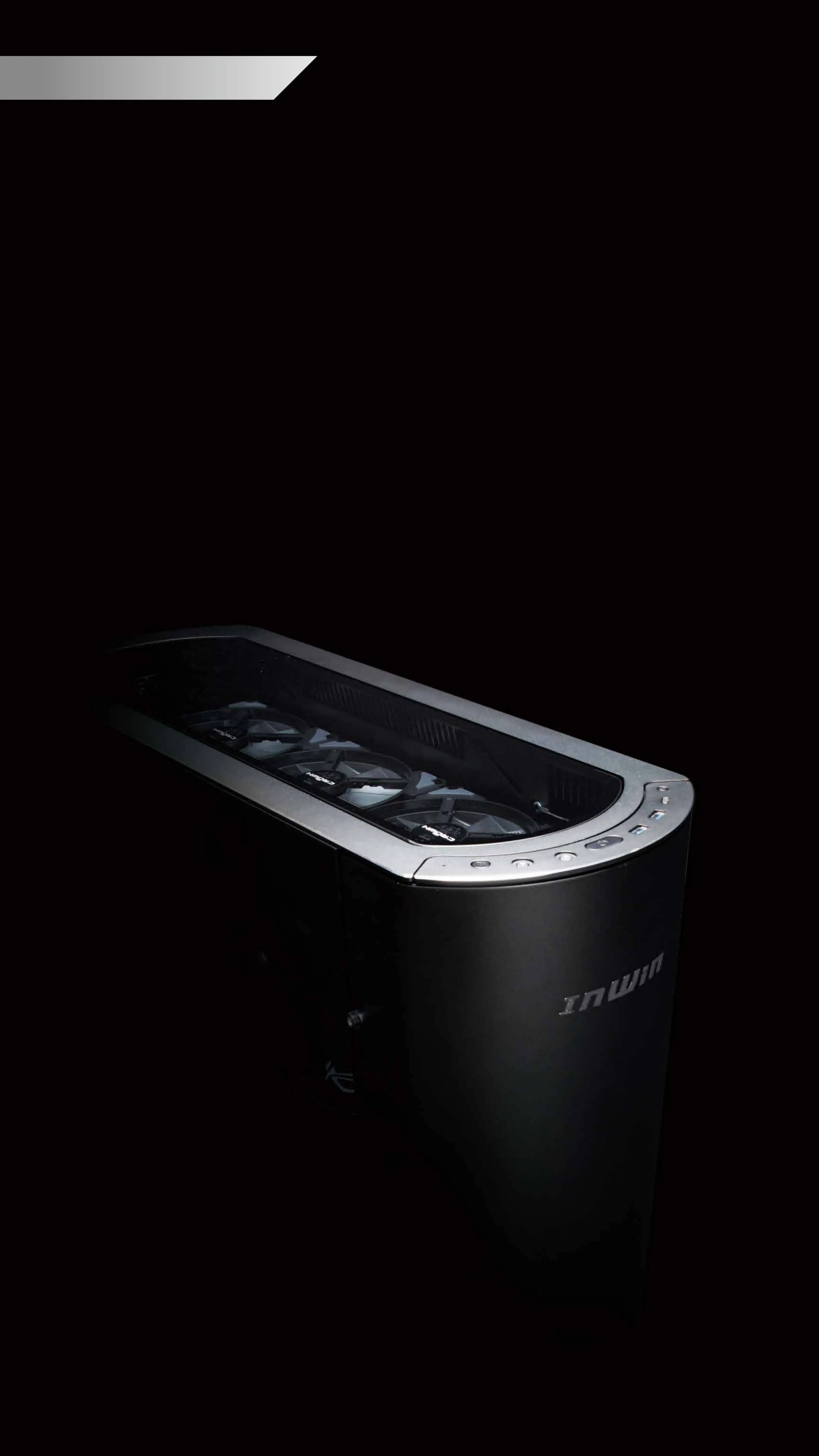

The InWin 915 joins the 9-series lineup of elegant

aluminium and tempered glass cases, but with a twist!

Our goal is to provide a new and unique product to match

with the overall are of the 9-series, and the 915 covers

that description perfectly.

* Our products comply with RoHS regulation.

* Specications may vary based on different regions.

* Extra fee for optional parts.

Specications

Model 915

Part Number IW-915-Black / IW-915-Silver

Colors Black/Silver

Case Type Full Tower

Materials Aluminium, Tempered Glass, ABS, SECC

M/B Compatibility 12" x 13.5" E-ATX, ATX, Micro-ATX, Mini-ITX

Expansion Slots

PCI-E x 8

Vertical PCI-E x 2 (Riser Card Optional, Not Included in Package)

Maximum

Compatibility

VGA Card Length: 410mm (Maximum)

VGA Card Width: 168mm (Maximum)

Vertical Display VGA Card Height: 50mm (Maximum)

CPU Heatsink Height: 164mm

Front Ports

1 x USB 3.1 Gen 2 Type-C

2 x USB 3.0

HD Audio

Top Cover Ventilation & LED Lighting Control Switch

Internal Drive Bays

4 x 2.5"/3.5" (Bottom Drive Bay Trays)

5 x 2.5" (4 Brackets and 1 Mounting Area on Motherboard Tray)

4 x 2.5" (Multifunctional Fan Bracket Mounts)

Max Drive Support: 13 x 2.5” Drives or

4 x 3.5” Drives and 9 x 2.5” Drives

Thermal Solution

Compatibility

3 x 120/140mm Front Fans / 280/360mm Radiator

(280mm Radiator Height up to 53mm, 360mm Radiator Height

up to 56mm)

1 x 120mm Rear Fan / 120mm Radiator

3 x 120/140mm Top Fans / 280/360mm Radiator

(Height up to 70mm)

2 x 120/140mm Bottom Fans / 240/280mm Radiator

Power Supply

Compatibility

PSII: ATX12V

- 250mm Mounting Area

(Length up to 320mm when Two HDD Cages Removed)

Product Dimensions

(H x W x D)

570 x 230 x 645 mm

22.44" x 9.06" x 25.4"

Product Dimensions

with Top Raised

(H x W x D)

595 x 230 x 645 mm

23.43" x 9.06" x 25.4"

Package Dimensions

(H x W x D)

740mm x 392mm x 792mm

29.14" x 15.44" x 31.18"

Net Weight 16.4kg / 36.2lb

Gross Weight 19.8kg / 43.7lb

Product specificaties

Merk:	In Win
Categorie:	Computerbehuizing
Model:	915
Kleur van het product:	Zwart
Gewicht:	16400 g
Breedte:	238 mm
Diepte:	645 mm
Hoogte:	595 mm
Gewicht verpakking:	19800 g
Breedte verpakking:	392 mm
Diepte verpakking:	792 mm
Hoogte verpakking:	740 mm
Soort:	PC
Vormfactor:	Full Tower
Audio-ingangen:	Ja
Audio-uitgang:	Ja
Materiaal:	Acrylonitrile butadiene styrene (ABS), Aluminium, SECC, Tempered glass
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C:	1
Vermogenstoevoer inclusief:	Nee
Aantal 2.5" bays:	5
Aantal 3.5" bays:	4
Ondersteunde HDD-groottes:	2.5, 3.5 "
Aantal uitbreidingssleuven:	10
Supported motherboard form factors:	ATX, EATX, Micro ATX, Mini-ATX
Zijraam:	Ja
Maximum CPU cooler hoogte:	164 mm
Maximum grafische kaart lengte:	410 mm
Maximum PSU lengte:	320 mm
Maximale aantal ventilators voorkant:	3
Voorste ventilators ondersteunende diameters:	120,140,280,360 mm
Maximaal aantal ventilators bovenkant:	3
Bovenste ventilators ondersteunende diameters:	120,140,280,360 mm
Maximaal aantal ventilators achterkant:	1
Achterkant ventilators ondersteunende diameters:	120 mm
Ondersteunde vormfactoren stroomvoorziening:	PS2
Maximaal aantal ventilators onderkant:	2
Ondersterste ventilators ondersteunende diameters:	240,280 mm
