Pagina 1/9

www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com

PT4500-SDI-TK-V2

Quick Start Guide

High Bright 15" SDI Tally Teleprompter w/ Travel Case

What’s Included

1x Teleprompter Base

1x Hood Frame

1x Silicone Hood w/ Canvas Shroud

1x Counterweight

1x Tall Riser

1x Medium Riser

1x DSLR Riser

2x L-Shaped Hex Keys

2x 1/4-20 Camera Screws

1x 15 in. SDI 4:3 Monitor

1x Power Adapter

1x 70/30 15 in. Glass

1x Digital Copy of Prompter Pro4

1x Hard Travel Case

www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com

Teleprompter Assembly Setup

Step 1

Place the teleprompter glass frame on a flat surface and remove the four

screws as shown.

Step 3

The metal frame is directional. Make sure the thicker side is on top and

the slimmer side is on the bottom.

Step 4

Put the washers on before tightening the screws. The washers and 4

additional screws are inside a bag on the bottom foam.

Step 2

Align and attach the teleprompter hood with the 8 screw pegs from the

teleprompter frame.

www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com

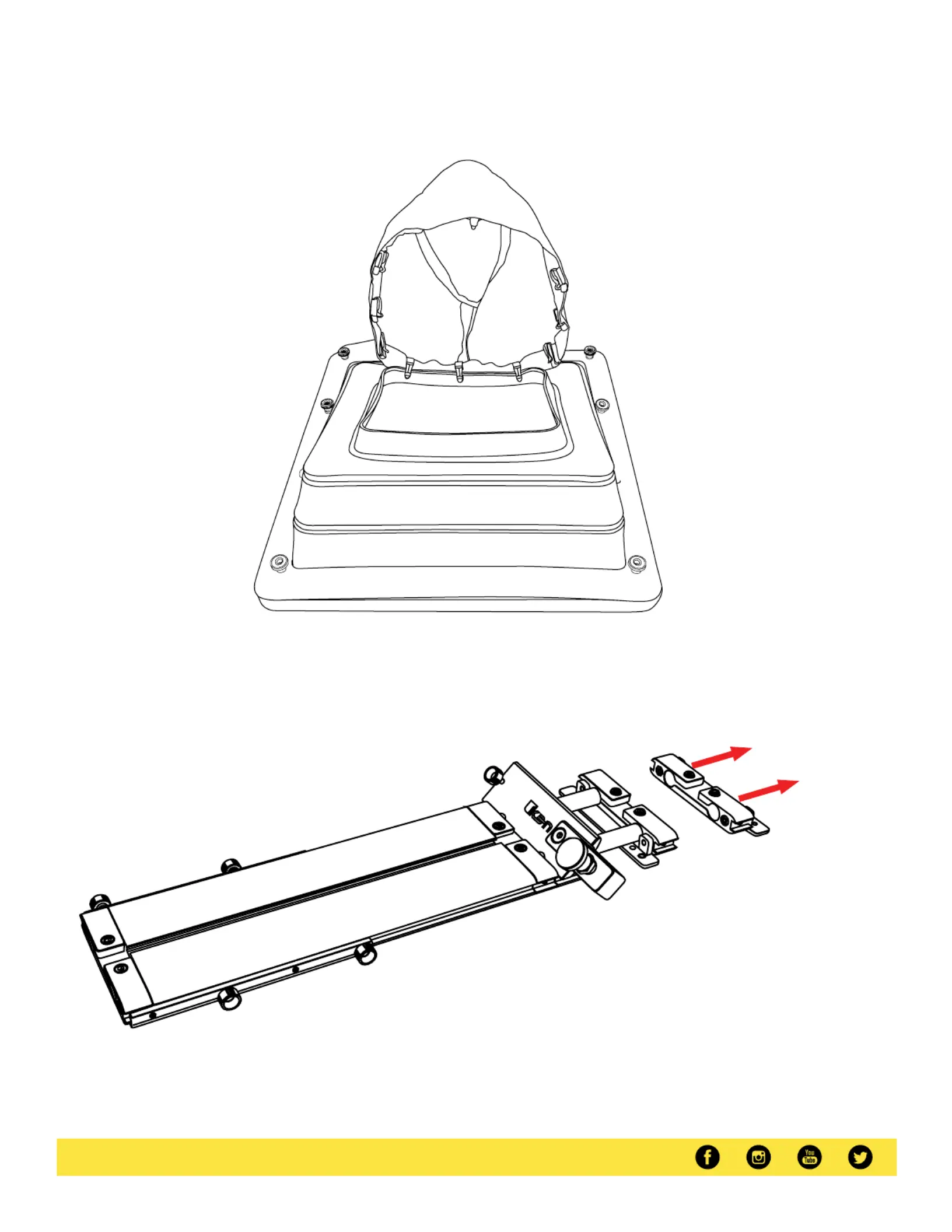

Step 6

Removethe monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Step 5

Extendthe teleprompter hood open and attach teleprompter boot using the clips. It is suggested to align the seamwith the bottom of the teleprompter hood.
