EventCamera responseLED Status

1

Plug-in power/

Red light & orange

light ashing

2

Camera is in use/Green light

3

Camera is not

in use

/Red light

4

Single press the

switch button

Switch to 1x→2x→3x

→4x→5x→auto framing

by each press

Red light blink

5

Long press (>2 sec)

the function button

Enter / Exit

auto framing mode

Red light blink

6

Long press (>5 sec)

the function button

Reboot the C570Red light blink

7

Use remote and

turn o󰀨 mic

Mic is mute, mute icon

pop up

Orange light blink

8

Use remote and

turn o󰀨 camera

Camera is o󰀨, pop up a

black image with camera

o󰀨 icon

Red light blink

9

Use remote and

turn o󰀨 both mic

and camera

Mic is mute and camera

is o󰀨, pop up a black

image with mic o󰀨 icon

and camera o󰀨 icon

Red light & orange

light blink alternately

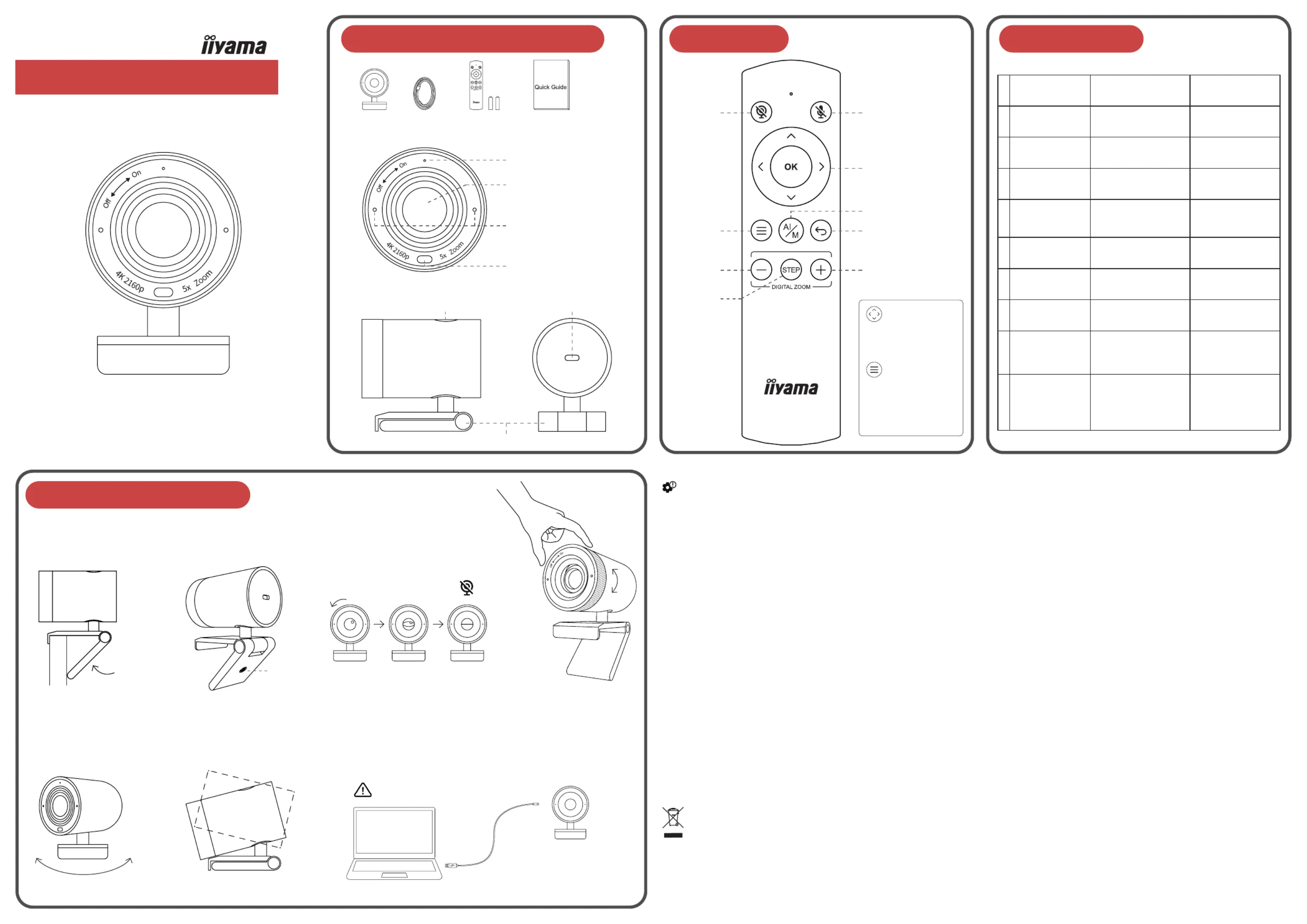

Quick Start Guide

CONFERENCE CAMERA WITH MIC

CameraRemote ControlUSB Cable

AAA Battery x2

Quick Start Guide

CHECKING THE CONTENTS OF THE PACKAGEREMOTE CONTROLLED INDICATOR STATUS

Connecting the cameraSwivel & Tilt

Clip Mount

Tripod Mount

Front

4K Ultra HD 120° FOV Lens

Dual Microphones

IR Receiver

1/4 Tripod

Screw Hole

Clip Mount

Switch ButtonUSB Type-C Port

Camera o󰀨

Menu

Zoom out

Zoom Steps

1x, 2x, 3x, 4x, 5x

Auto framing /

Manual

Mic o󰀨

Return

Arrow keys & OK

Zoom in

LED Indicator

SideBack

± 14°

Manually adjust the webcam tilt up / down or swivel right / left to the best

shooting angle.

Easily mount onto any displays such as

laptop monitor, television or interactive

display using its built-in clip mount.

Tripod screw hole is located at the bottom

of the clip mount for tripod mounting.

Arrow keys

Adjust the position of eld

of view

Menu

Open OSD settings to

customize image settings

including contrast,

saturation, brightness, etc.

Important Safety, Compliance and Warranty Information

How to prevent icker in your video

Safe Usage Guidelines for Products

*Read Manual Before Product Use*

The default camera frequency setting is 50Hz, if you encounter the icker problem,

simply use the remote control, get into Menu to adjust camera frequency that match

the electrical frequency of your region.

• Do not open or modify the product except for battery removal and replacement.

• Do not disassemble or attempt to service this product.

• This product is safe under normal and reasonably foreseeable misuse operating conditions.

• If product is operating improperly, contact the authorized reseller.

• Product must be returned to the authorized reseller for any service or repair.

• This is not a Children's Product and is not intended for use by children under 14 years old.

Privacy Cover

On the side of the camera lens,

rotate the privacy shutter adjuster

counterclockwise to cover the

camera lens.

1) Connect the type C end of the bundled USB 3.0 cable to the Type C port at

the back of the UC-CAM10PRO-1.

2) Connect the Type A end of the same cable to a laptop or workstation.

If connecting to USB 2.0 port of PC, the maximum available resolution will be 1080P.

If connecting to USB 3.0 port of PC, the maximum available resolution will be 4K.

PC

USB 2.0 Port : 1080P

USB 3.0 Port : 4K

A USB 3.0 cable is required to

deliver 4K resolution.

UC-CAM10PRO-1





M314A16

CE MARKING DECLARATION OF CONFORMITY

This USB Camera complies with the requirements of the EC/EU Directive 2014/30/EU “EMC

Directive”, 2014/35/EU “Low Voltage Directive”, and 2011/65/EU “RoHS Directive”.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation

in residential areas, business and light industrial premises and small-scale enterprises,

inside as well as outside of the buildings.

All places of operation are characterized by their connection to the public low voltage

power supply system.

IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands

GETTING START WITH UC-CAM10PRO-1

We recommend recycling of used product. Please contact your dealer or iiyama service center.

Recycle information is obtained via the Internet, using the address: https://iiyama.com

You can access the Web page of di󰀨erent countries from there.
