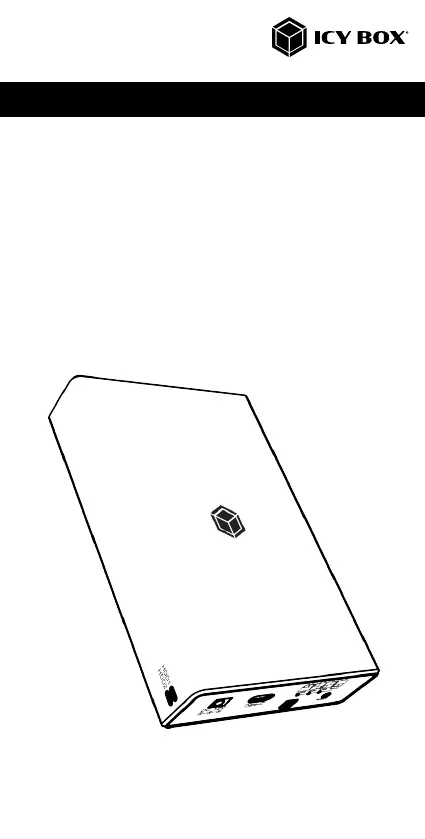

Manual IB-RD2253-C31

Externes RAID Gehäuse für 2x 2.5" SATA SSD

Handbuch IB-RD2253-C31

External RAID Enclosure for 2x 2.5" SATA SSD

Manual IB-RD2253-C31

Please read carefully the following information to prevent injuries, da-

mage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate

information in terms of the probability of occurrence as well as the type and severity

of the consequences if the measures to prevent hazards are not complied with.

Warns of a hazardous situation causing directly

death or serious injury.

Warns of a hazardous situation that potentially may

cause death or serious injury.

Warns of a hazardous situation that potentially may

cause minor injury.

Warns of a situation that cause ma-potential may

terial or environmental damage and disrupt operative

processes.

1. Risk of electrical shock

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use

• Make sure the device has been de-energised prior to working on it

• Do not remove contact protection panels

• Avoid contact with conducting parts

• Do not bring plug contacts in contact with pointed and metal objects

• Use in intended environments only

• Operate the device using a power unit meeting the speciﬁcations of the type plate

only!

• Keep the device/power unit away from humidity, liquid, vapour and dust

• Do not modify the device

• Do not connect the device during thunderstorms

• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

Sharp components

Potential injuries to ﬁngers or hands during assembly (if

intended)

• Read the operating instructions prior to assembly

• Avoid coming into contact with sharp edges or pointed components

• Do not force components together

• Use suitable tools

• Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

Insufﬁcient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air

• Do not cover the fan outlet and passive cooling elements

DANGER

WARNING

CAUTION

IMPORTANT

WARNING

CAUTION

IMPORTANT

Manual IB-RD2253-C31

• Avoid direct sunlight on the device/power unit

• Guarantee sufﬁcient ambient air for the device/power unit

• Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children

• Store/dispose of plastic bags and packaging in an area that is inaccessible to

children

• Do not hand over small parts and packaging to children

5. Potential data loss

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation

guide

• Exclusively use the product once the speciﬁcations have been met

• Back up data prior to commissioning

• Back up data prior to connecting new hardware

• Use accessories enclosed with the product

6. Cleaning the device

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture

or short circuit in the device

• Disconnect the device prior to cleaning

• Aggressive or intense cleaning agents and solvents are unsuitable

• Make sure there is no residual moisture after cleaning

• We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by

components, recycling circle interrupted

This icon on product and packaging indicates that this product must

not be disposed of as part of domestic waste. In compliance with the

Waste Electrical and Electronic Equipment Directive ( ) this elecWEEE -

trical device and potentially included batteries must not be disposed

of in conventional, domestic waste or recycling waste. If you would

like to dispose of this product and potentially included batteries, please

return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at

support@raidsonic.de www.icybox.de or visit our website at .

WARNING

IMPORTANT

Product specificaties

Merk:	Icy Box
Categorie:	Externe harde schijf
Model:	IB-RD2253-C31
Kleur van het product:	Zwart
Gewicht:	187 g
Breedte:	84 mm
Diepte:	130 mm
Hoogte:	26 mm
Gewicht verpakking:	494 g
Breedte verpakking:	231 mm
Diepte verpakking:	131 mm
Hoogte verpakking:	66 mm
Gebruikershandleiding:	Ja
LED-indicatoren:	Access, Power
AC-adapter ingangsspanning:	230 V
USB-connectortype:	USB Type-C
Type stroombron:	DC
Meegeleverde kabels:	USB Type-A to USB Type-C, USB Type-C to USB Type-C
Inclusief AC-adapter:	Ja
Land van herkomst:	China
USB-versie:	3.2 Gen 2 (3.1 Gen 2)
Materiaal:	Aluminium, Plastic
Plug and play:	Ja
Ondersteunt Windows:	Ja
USB-aansluiting:	Ja
Ondersteunt Mac-besturingssysteem:	Ja
AC-adapter, uitgangsspanning:	5 V
AC-adapter, uitgangsstroom:	2 A
Inclusief schroeven:	Ja
Opslag schijfgrootte:	2.5 "
Ondersteunde opslagstationinterfaces:	Serial ATA, Serial ATA II, Serial ATA III
Soorten RAID:	0, 1
(Buitenste) hoofdverpakking hoogte:	270 mm
(Buitenste) hoofdverpakking breedte:	341 mm
(Buitenste) hoofdverpakking brutogewicht:	10740 g
(Buitenste) hoofdverpakking lengte:	506 mm
Hoeveelheid per (buitenste) hoofdverpakking:	20 stuk(s)
Overdrachtssnelheid:	10 Gbit/s
Aantal storage drives ondersteund:	1
Type product:	HDD-/SSD-behuizing
Geslacht USB-connector:	Vrouwelijk
Ondersteunde storage drive hoogten:	9.5 mm
UASP-ondersteuning:	Ja
Inclusief schroevendraaier:	Ja
