4.

1.2.3.

5.

6.7.8.

9.

10.

11.

12.

4.

1.

2.

3.

5.

6.

7.

8.

9.

10.

13.

1.

3.

2.

5.

4.

IB-3780-C31

3sec.

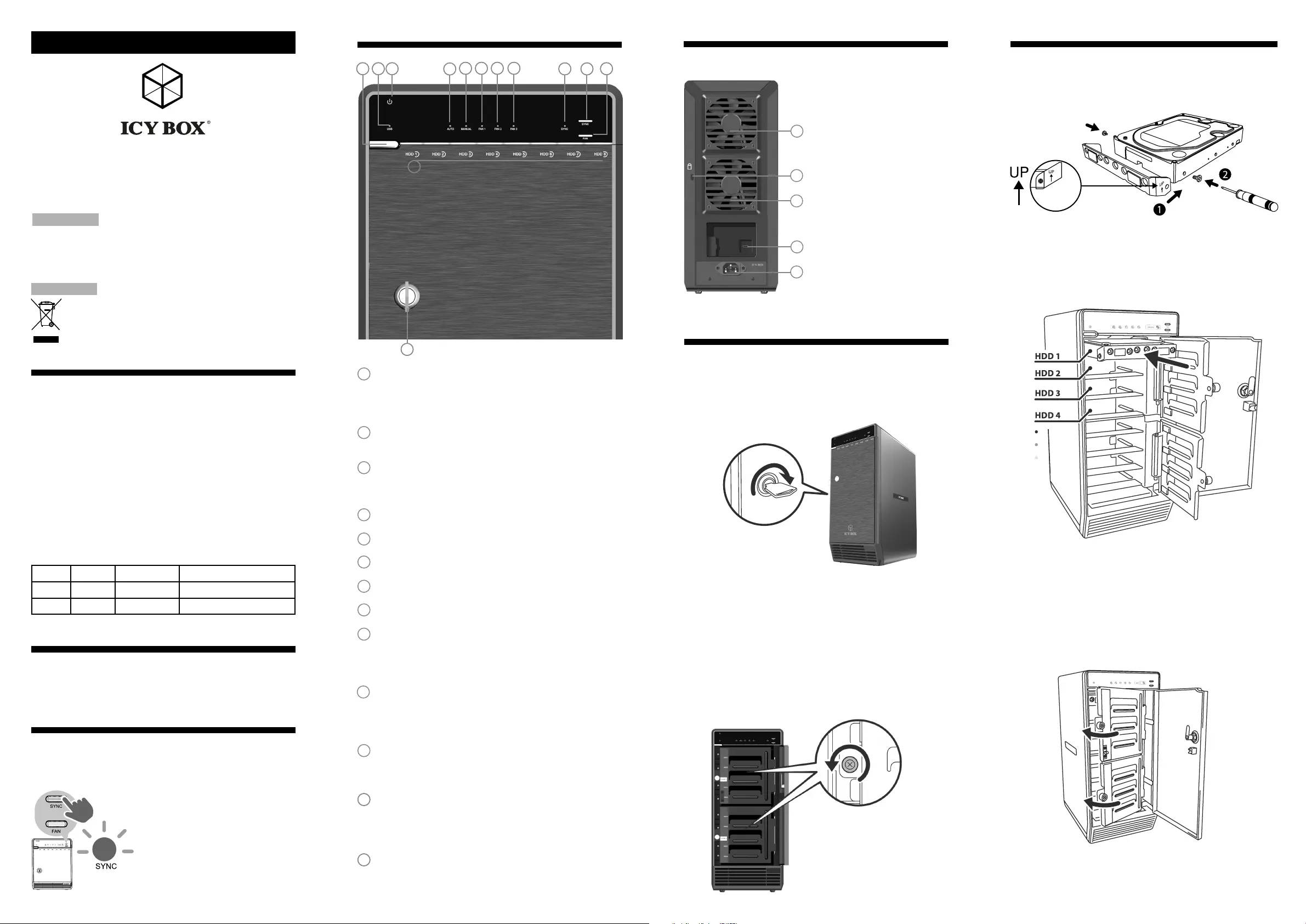

USER’S MANUAL

8x HDD Enclosure with single mode functions

USB 3.1 Gen 2 / Type-C

™

For 2.5" and 3.5" SATA HDD/SSD

Cleaning the device

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in

the device

• Disconnect the device prior to cleaning

• Aggressive or intense cleaning agents and solvents are unsuitable

• Make sure there is no residual moisture after cleaning

• We recommend cleaning devices using a dry, anti-static cloth

Disposing of the device

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle

interrupted

This icon on product and packaging indicates that this product must not be disposed of as

part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment

Directive (WEEE) this electrical device and potentially included batteries must not be dis-

posed of in conventional, domestic waste or recycling waste. If you would like to dispose

of this product and potentially included batteries, please return it to the retailer or your local

waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at

[email protected] or visit our website at www.raidsonic.de.

Brief Notes

• Operation System

Windows 10 / Windows 7 / 8.1

mac OS

®

X 10.12 or later

• Operation Environment

Temperature 0 ~ 40 °C Humidity 90% RH

• Hot-plug for USB Type-C

™

interface

Supports USB 3.1 Gen 2 10 Gbit/s transfer speed, and also

backward supports USB 3.0/2.0 interface for older PC and

MAC systems.

• USB 2.0 / 3.0 / 3.1 compatible *

*Additional cable required, cable converter adapters

not recommended

• Smart Fan

Smart fan controlled by the built-in thermal sensor and it

comes with 2 modes (auto / manual) and 3 levels of speed:

Packaging content

Main device x1, Quick installation guide x1, Screws for 2.5" HDD x16

Screws for 3.5" HDD x32, HDD handle x16, bracket x8, screw

driver p1-x1 / key x2, USB 3.1 Gen 2 Type-C

™

to C cable, p1-x1 power cord

Sync Button

Make sure enclosure is connected to a computer that is ON,

by USB. If not, enclosure will just turn off.

Set the power Sync mode to your preference.

*These are the Power Sync modes:

IMPORTANT

IMPORTANT

Level 1:Lowbelow 45°1000 rpm ~1400 rpm

Level 2:Medium45°C ~ 54°C 1500 rpm ~1900 rpm

Level 3:Highover 55°C2400 rpm ~2800 rpm

Orange LED

When the PC is turned off, the enclo-

sure will go into sleeping mode. When

you turn on the PC, the enclosure will

turn on automatically

OFF (no LED)

No Power sync, enclosure stays on

when you turn PC off.

Understanding Interface

Front View

Make sure the HDD is securely installed first at all times.

Otherwise the PC may not recognize the device.

!

Power button

It needs to be pressed and held for 3 seconds to power off.

This design prevents accidental power off.

USB Status

Link interface use

Power indicator status

Blue - Power on

Orange - Sleep mode

Smart fan automatic mode

Smart fan manual mode

Fan speed / level 1

Fan speed / level 2

Fan speed / level 3

Synchronization mode LED

LED Orange When the PC is off,the device goes to sleep

mode.

LED OFF Synchronization is off.

Synchronization mode button

Switch power Sync mode (no power Sync / Hibernate)

It needs to be pressed and held for 3 seconds to power off.

This design prevents accidental power off.

Smart fan button

Controls auto & manual modes and fan speed from level

1 to level 3.

HDD Access

HDD1 / HDD2 / HDD3 / HDD4

HDD5 / HDD6 / HDD7 / HDD8 Status

Blue Flashing light = Read

Key slot

12.

13.

Rear View

Fan

Security lock

Fan

USB Type-C

™

port

AC Input port

Quick Installation Guide

1.Unlock the cover with the key supplied and press the circular

depression to open the cover

2. Release the inner covers by turning the screws counter clockwise

3. Please use the provided handles to secure the 8 HDDs with screws-

Quick Installation Guide for 3,5" HDD, Installation for 2,5" will follow up

4. Install the HDDs from up to down.

5. Close and secure the covers.

6. Connect the power cord to the device,

plug in USB Type-C

™

cable in the rear

11.
