Electrical tape

Approved fastener

(Wire nut)

GENERAL

1. To insure the success of the fixture installation, the following instructions and

diagram(s) should be read and understood.

2. All electrical connections must be made in accordance with the National

Electric code and local codes and ordinances. If you are uncertain of the methods

of installing electrical wiring and lighting fixtures secure the services of a

qualified licensed electrician.

3. TOOLS NEEDED: Blade screwdriver, slip joint pliers, wire cutter/stripper,

electrical current tester, stepladder and electrical tape. The importantNOTE:

safeguards and instructions outlined on this sheet are not meant to cover

all possible conditions and situations that may occur. It must be understood that

common sense, caution and care are factors that cannot be built into any product.

Caution and care must be supplied by the person(s) installing, operating and

maintaining this lighting fixture.

INSTALLATION PREPARATION

1. TURN OFF THE ENTIRE ELECTRICAL CIRCUIT TO WHICH THE LIGHTING

FIXTURE IS TO BE ATTACHED. Move the appropriate circuit breaker to the “off”

position or completely remove the fuse controlling the circuit.

2. If an existing fixture is being replaced, remove it and note to which of the wires

in the outlet box the fixtuer was attached. DO NOT SEPARATE ANY OTHER

WIRES THAT MAY BE IN THE BOX. DO NOT DAMAGE THE INSULATION OF

OLDER WIREING. In regular circumstances the BLACK wire will be the “Hot” lead

and the WHTE wire will be the “Neutral” or “Common” lead. A GREEN or BARE

COPPER wire is the “Ground”. In older buildings it is always good practice to

reconfirm the polarity of the wiring.

3. This fixture is designed to be mounted on a standard round or octagon box. The

box must be securely mounted to the structure of the building.

FIXTURE INSTALLATION

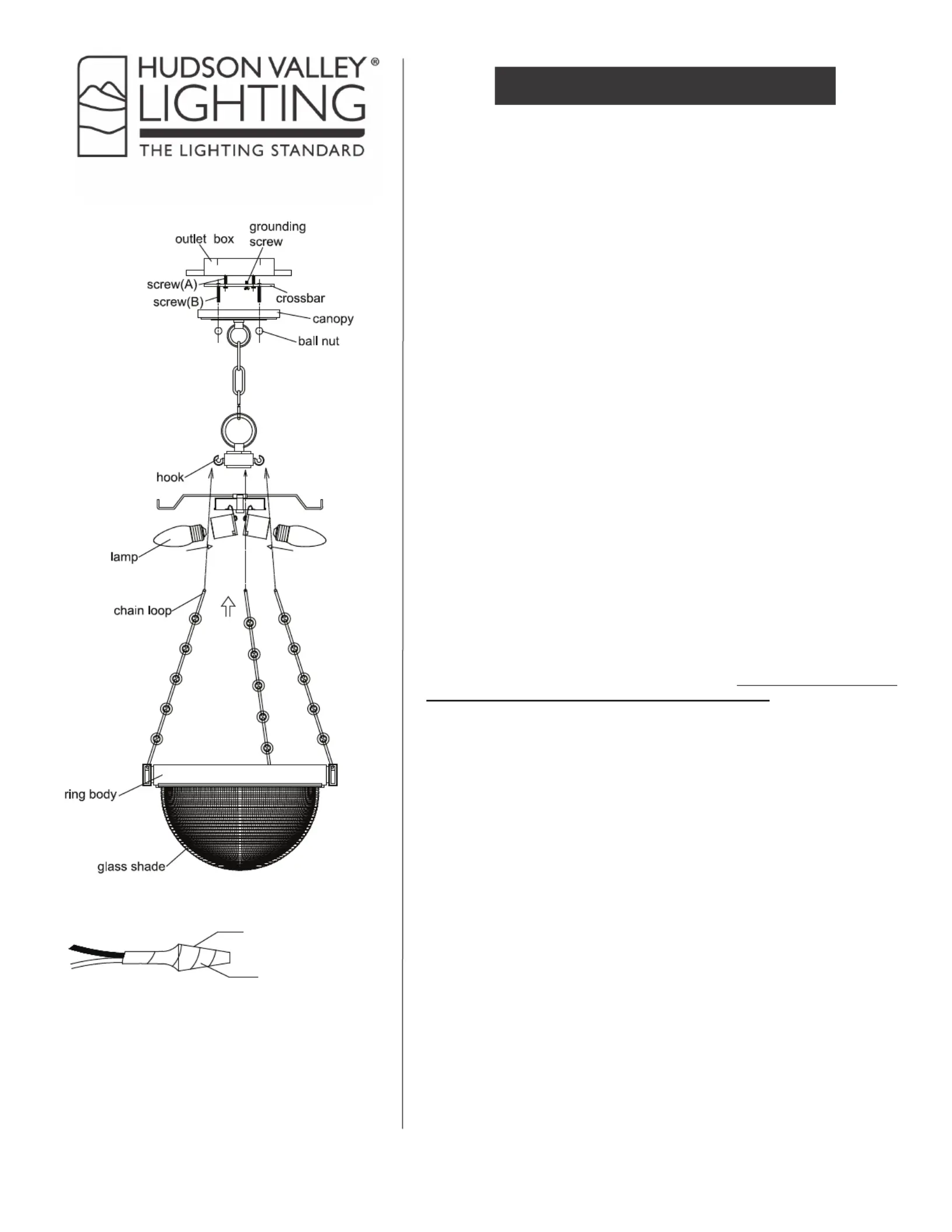

1.Remove the fixture and parts bag(s) from the carton. Before discarding the carton,

double check packing to make certain that all parts are found.

2.Attach the crossbar to the outlet box. (The green screw should face the floor).

3. Fasten the bare copper fixture wire to the green or bare copper wire in the box

or bare copper wire in the box to the crossbar with green screw provided.

NEVER FASTEN THE GROUND WIRE TO THE BLACK OR “HOT” WIRE!

FAILURE TO FOLLOW THIS INSTRUCTION COULD RESULT IN SERIOUS

INJURY OR DEATH!

4. Fasten the white fixture wire to the white wire in the outlet box. Fasten the wires to

together with an approved fastener(wire nut). Starting about 1” below the fastener,

tightly wrap connection with the electrical tape so that the tape seals the end of the

fastener. Make sure that there is no exposed wire or strands that could cause a

dangerous short circuit!

5. Connect the black fixture wires to the black wire in the outlet box. Fasten the

joined wires as in step 4.

6. Attach the canopy to the outlet box and fasten it by 2 ball nut.

7. Install the lamp(s) (light bulb(s). NOTE: the fixture is rated for 60 watt

type B lamp. DO NOT EXCEED RECOMMENDED WATTAGE!

8. Place the glass shade to the ring body, and attach the chain loop to the hook.

9. Restore power to circuit at breaker or fuse box.

Hun Va Liti, Inc.dsolleyghng

P.O. Box 7459

106 Pierces Road

Newburgh, NY 12550

(800) 814-3993

www.hudsonvalleylighting.com

4413, 4416
