UR72B-LPD6

10/29/24

Item # 13720

UR72B-LPD6

Dimensions / Capacity

Three-Section UR72B-LPD6

W x D x H

72” x 30” x 31.9”*

*with 2.25” casters

Interior Storage Capacity (CF) (AHAM)

Overall Width x Depth (including 1” bumper)

Height (including 2.25” casters)

Drawer Opening Width x Height

Depth with Drawer Fully Open

(including 1” bumper)

Crated Weight

Crated Length x Width x Height

Voltage

HACR Breaker

Electrical Connection

(NEMA)

Voltage Range

Ambient Temp. Range

Control Setpoint Range

Amperage

Energy Consumption

(kWh/day) @ASHRAE

Heat Rejection (BTU/Hr.) @NSF

Approx. Nominal Compres. BTU/HR (HP)

Refrigerant / Charge Amount (oz)

18.27 ft

72” x 31”

31.9”

19.5” x 23”

51”

443 lbs.

73.75” x 32” x 35.5”

115/60/1

15.0 Amps

5-15P

104-126

45° to 100°F

32° to 52°F

1.12

360

1354(1/5HP)

R290 (2.6 oz)

• Environmentally friendly R290 hydrocarbon refrigerant

• Cabinet and drawers are insulated with 2” CFC free,

foamed in place polyurethane

• Drawer slides are constructed of 16 gauge stainless

steel with acetal rollers

• Drawer frames are formed of 14 gauge stainless steel

and securely fastened in the cabinet

• Bottom drawers will accommodate (1) ½ size pan

& (1) 1/3 size pan. Top drawer will accommodate

(1) ½, (1) 1/3, (1) ¼ , and (1) 1/6 size pans. Alternate

pan orientation (top drawers only) provides (1) full

size pan positioned front-to-back and (3) 1/9 size pans

• Top and bottom drawers allow for 6” deep pans

• Extruded aluminum flush mount drawer handle

• Magnetic drawer gasket is easily removable for

cleaning

• Drawers have a 175 lb. dynamic load rating

• Hot gas condensate removal

• E-coated evaporator coil

• Standard with 2.25” casters (two with brakes)

• 10 ft. cord and plug

Electrical / Refrigeration

Three-Section UR72B-LPD6

Item #:

Project:

Qty:

AIA#:

Options

Hoshizaki reserves the right to change specifications without notice.

618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com

Valid in United States, Canada, Puerto

Rico and U.S. Territories. *Please visit

hoshizakiamerica.com/support/warranty/

for more information.

FIVE

years

LABOR

SIX

years

PARTS

SEVEN

years

COMPRESSOR

If GFCI is required, a GFCI breaker MUST be used in lieu of GFCI receptacle

Features

Undercounter 72” Low Profile

Refrigerator with Six Drawers

4” Casters (HS-5035, set of 4)

6” Casters (HS-5036, set of 4)

Stainless steel back panel (factory

request)

Overshelves (HS-5175 single)

Overshelves (HS-5166 double)

Drawer divider bar (HS-4007, vertical)

Drawer divider bar (HS-5432 horizontal)

Specifically designed to fit under an

ADA compliant 34” work surface height

counter

Engineered to maintain NSF-7

temperatures in 100°F ambient

Stainless steel exterior front, sides

and top with stainless steel interior

sides, back, and floor

30”

72”

2.25”

50”

1”

72”

30”

31.9”

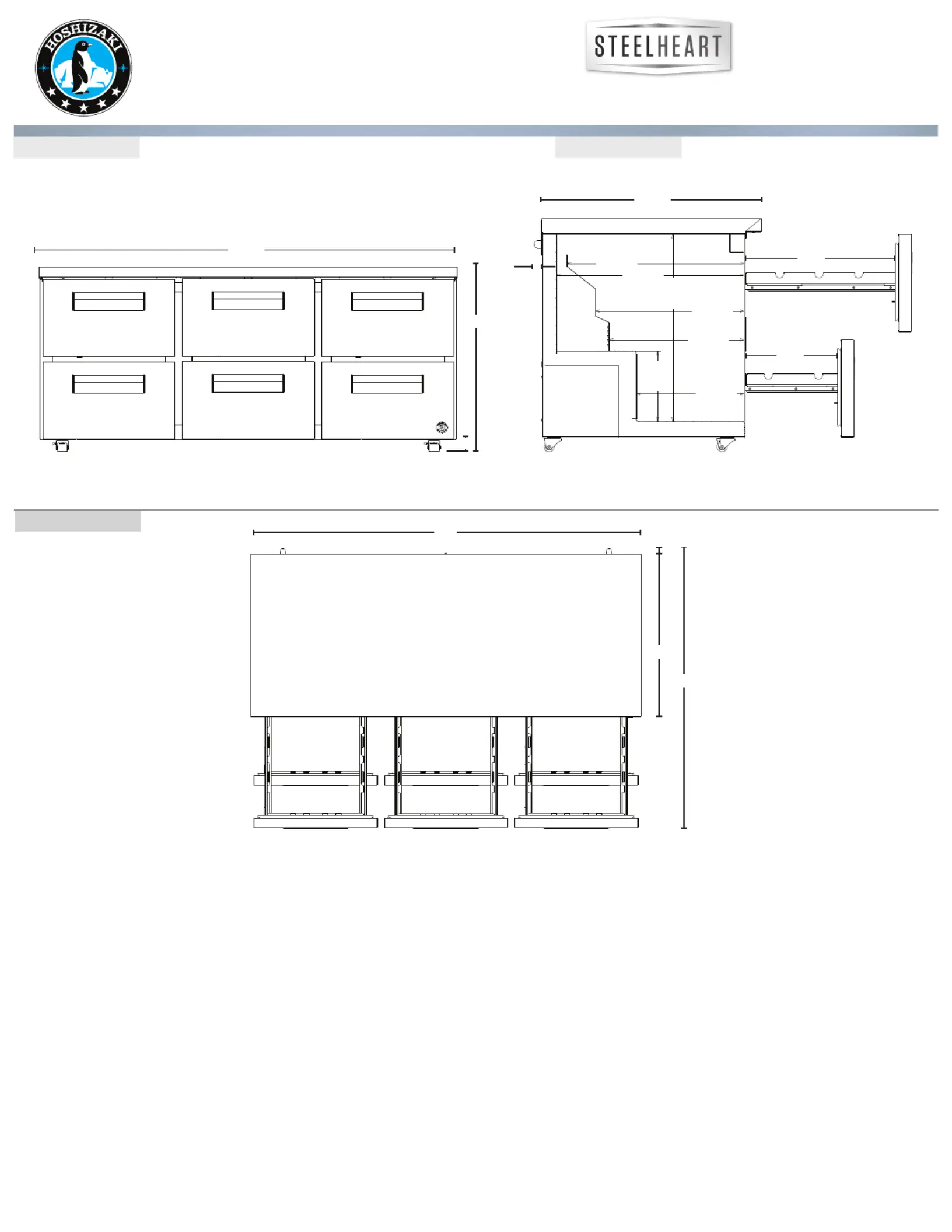

SIDE VIEW

FRONT VIEW

618 Hwy, 74 S., Peachtree City, GA 30269 | TEL 800-438-6087 | FAX 800-345-1325 | www.hoshizakiamerica.com

PLAN VIEW

Drawer Construction

Cabinet Construction

The exterior cabinet top, front, and sides, are constructed of high quality stainless steel. The exterior back and bottom are constructed of coated steel. The cabinet interior

features stainless steel back, sides, and floor with an ABS top. One heavy duty epoxy coated shelf per section is standard. Mounted on anodized aluminum pilasters the

shelves are adjustable in ½” increments. Cabinet walls are insulated with 2” CFC free, foamed in place polyurethane. 2.25” polyolefin, stem casters (two with brakes) are

standard.

Refrigeration System

The high efficiency refrigeration system is self-contained with an E-coated evaporator for extended life. Condensate removal is accomplished with an energy efficient non-

electric evaporation system. A capillary tube controls the flow of environmentally friendly R290 refrigerant through the evaporator. Refrigeration system utilizes an “off cycle”

defrost to eliminate any ice on the evaporator coil. 115 volt units are equipped with a ten foot cord and plug (20.0 amps or less).

1”

19.6”

13.2”

24.17”

25.6”

20.32”

18.44”

14.7”

9.64” 25.5”

UR72B-LPD6

10/29/24

Item # 13720

UR72B-LPD6

Drawer fronts are constructed of high grade stainless steel inside and out and drawers are insulated with 2” free foamed in place polyurethane. Drawer frames are formed

of 14 gauge stainless steel and securely fastened in the cabinet. The drawer slides are 16 gauge stainless steel with acetal rollers to prevent metal to metal contact between

the drawer slides and reduce wear. The drawer slides have a dynamic load capacity of 175 lbs. and have been life tested (fully loaded) three hundred thousand openings and

closings without showing significant wear. The flush mount handles are constructed of extruded aluminum. Snap-in magnetic drawer gaskets are durable and easily removed

for cleaning. Bottom drawer will accommodate (1) 1/2 size pan & (1) 1/3 size pan. Top drawer will also accommodate (1) 1/2, (1) 1/3, (1) 1/4, and (1) 1/6 size pans - HS-5432

is required for this configuration. Alternate pan orientation on top drawer only will accommodate (1) full size pan front-to-back and (3) 1/9 size pans. The top and bottom

drawers will accommodate 6” deep pans.

Undercounter 72” Low Profile

Refrigerator with Six Drawers
