Retractable Hose Reel

INSTRUCTION MANUAL

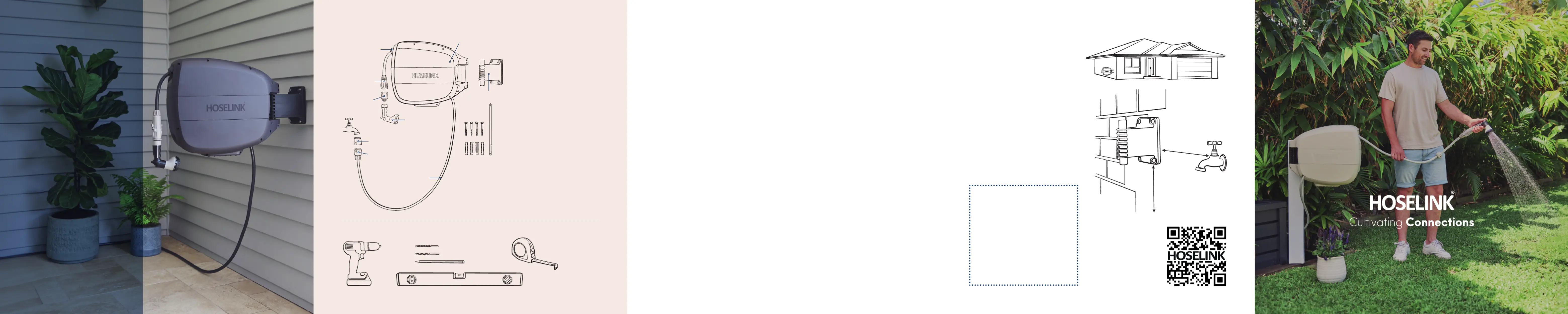

INSTALLATION

Bracket into Masonry

1Use the bracket as a template to

mark all four holes with a pencil,

using a spirit level to ensure it

is straight.

2Drill holes 50mm deep using

a 10mm masonry drill bit.

TIP: Use sticky tape around the

drill bit to mark 50mm depth.

Be sure to set the drill to the

‘Hammer’ setting.

3Hammer the plugs into each hole.

4Set the bracket in place, then

use the supplied 200mm Phillips

Head drill bit to loosely screw in

each screw.

5Once all are in place, tighten

each screw.

For specific instructions on all

surface types, visit the Product

Support page at hoselink.com.au.

Bracket into Timber

1Use the bracket as a template

to mark all four holes with a

pencil, using a spirit level to

ensure it is straight.

2Drill four holes 50mm deep using

a 5mm drill bit.

TIP: Use sticky tape around the

drill bit to mark 50mm depth.

3Set the bracket in place, then

use the supplied 200mm Phillips

Head drill bit to loosely screw in

each screw (plugs not required).

4Once all are in place, tighten

each screw.

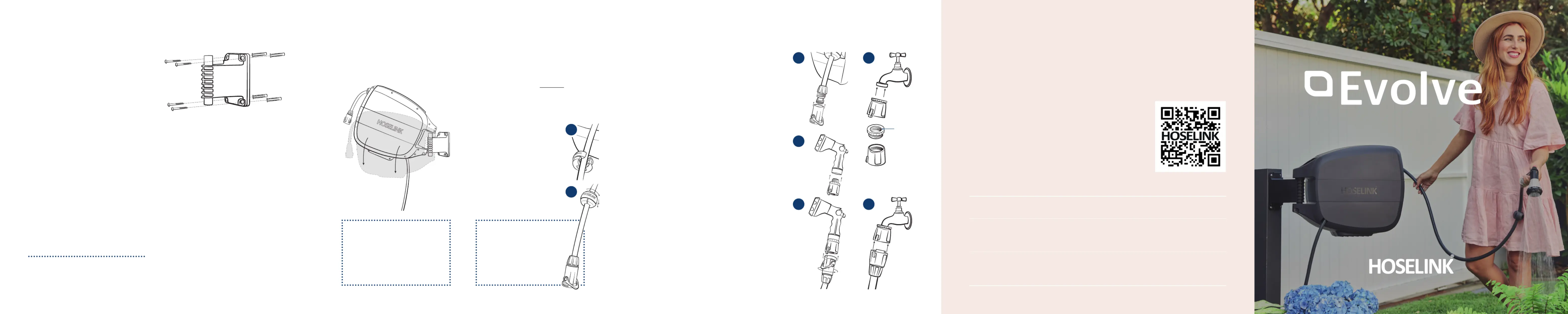

COMPLETE SETUP

Place Hose Reel

onto the Bracket

COMPLETE SETUP

Attach Stopper Ball

Troubleshooting

Visit the Product Support

section on our website

or scan the QR code for

more information.

2Open the stopper ball

lever from the side

closest to the ‘K’.

3Put the stopper ball

approximately 20cm

behind the connector.

Push with your palm

from the ‘H’ side to

latch the lever.

Connector and

Sprayer Assembly

1Push the Hose Connector with

Flow Control Body onto the end

of the main hose. Secure by tightly

screwing in the pre-attached nut.

2Screw the Accessory Connector

with Swivel into the Sprayer.

3Attach the sprayer to the main hose.

To join Hoselink fittings, hold a fitting

in each hand, line up the lugs and use

a point and twist motion to connect.

4Screw the Universal Tap

Connector onto your outdoor tap.

If the connector appears too small,

unscrew the size reducer and

screw the main connector body

onto the tap.

5Connect the 2m Leader Hose onto

the Universal Tap Connector with the

same point and twist action.

2

3

14

3

Tilt the reel at an angle over

the top post rst to attach, then

level the reel to slide it onto the

bottom post. Do this in reverse

to remove it.

TIP

Complete this step without water

pressure in the hose.

1Pull the hose out about half

a metre and lock the length.

If this is too difcult, extend

the hose to the ground. Put

your foot on the ‘H’ side and

roll the ball forward to latch

the lever.

TIP

READY TO USE

Specications

Model Hose Length Weight Weight Max working

with water pressure

E10020B 20m Internal 12.35kg 13.85kg 150psi

E10020C Hose + 2m

Leader Hose

E10030B 30m Internal 14.80kg 17.90kg 150psi

E10030C Hose + 2m

Leader Hose

Using the Hose Reel

1To use the hose, simply pull it out to the

desired length. The hose will retract slightly

and lock at that length.

2To commence retraction, gently pull the

hose to unlock, then allow it to retract

automatically as you walk it back in.

3Always fully retract the hose after use.

Masonry

Installation

5

2

Size

Reducer
