Instruction Leaflet

Directives

Hoja de instrucciones

RCA900N Transformer • Transformateur • Transformador

Input 120V AC 60Hz, Output 16V AC 10VA

entrée 120 V c.a., 60 Hz, sortie 16 V c.a., 10 VA

Entrada 120V AC 60Hz, Salida 16V AC 10VA

69-2145EFS-01

SAFETY

For safety reasons, always turn off the mains electricity supply

before wiring the transformer to a junction box!

Make sure that all connections are correct and terminals are fully

tightened. Do not stress the cables.

The main supply to the transformer should be installed in accor-

dance with this instruction and in compliance with local wiring

codes.

WIRING TO LINE VOLT SUPPLY

Mount the transformer to an appropriate junction box or circuit

breaker box. Connect line voltage white and black wires to the

white and black transformer wires, connect the green wire to

ground. See Fig. 1.

This transformer can be used to replace any 16V 10VA trans-

former from any manufacturer, which is mounted within electrical

cable management housing.

For connection to chime and push, please refer to its manual.

DISPOSAL & RECYCLING

Waste electrical products should not be disposed of with house-

hold waste. Please recycle where these facilities exist. Check

with your local authority or retailer for recycling advice.

DECLARATION

Honeywell hereby declares that this product is in compliance to

the relevant standards in C UL and UL1585 safety requirements.

GUARANTEE

Honeywell guarantees this product for 1 year from the date of

purchase. Proof of purchase is required; this does not affect your

statutory rights. If you require further information about your

product, call the Honeywell helpline on 1-800-468-1502.

M27185

16V, 10VA

OUTPUT

120 VAC

120V

GROUND

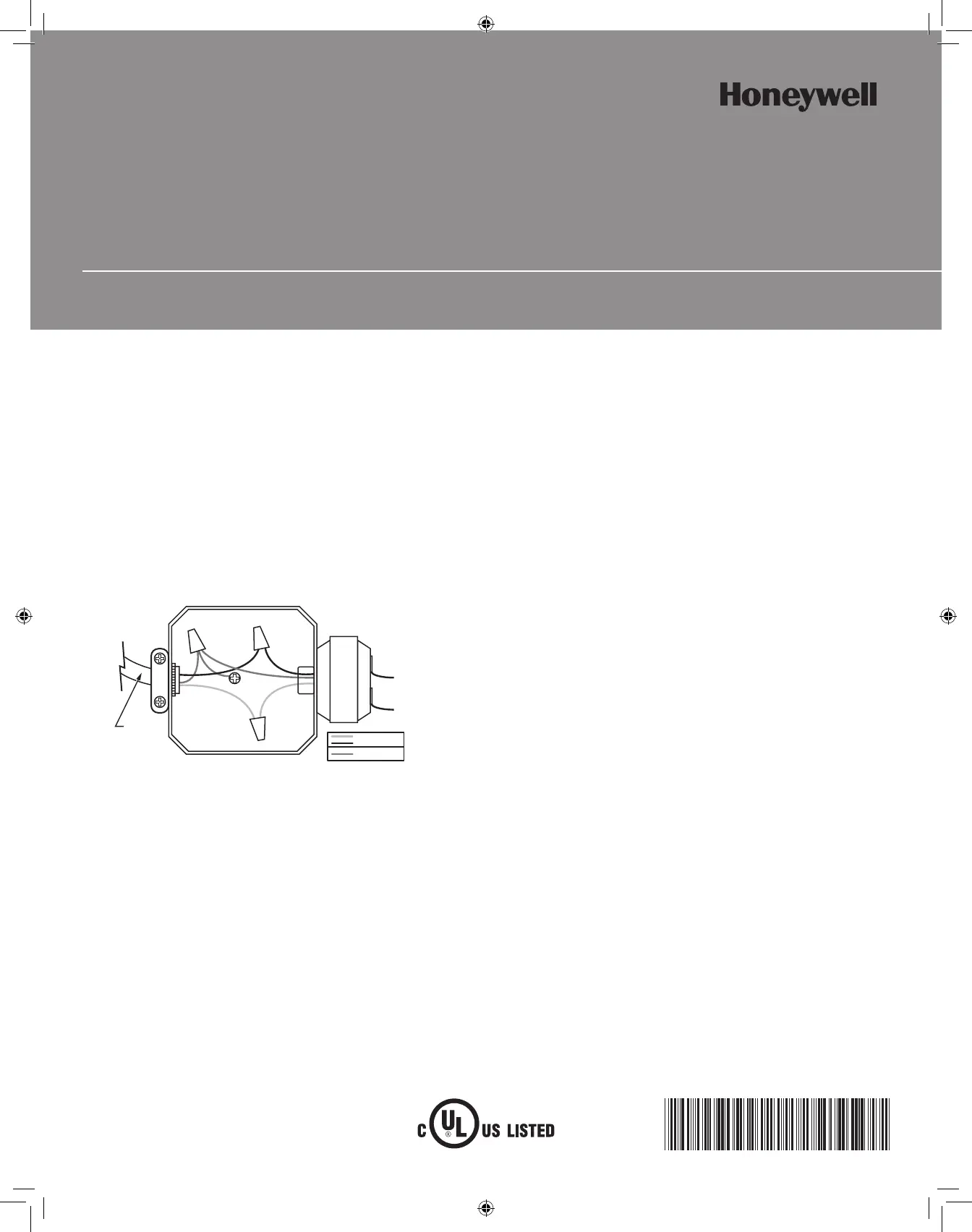

Fig. 1: Mains connection.

69-2145EFS_A.indd 111/29/2007 9:22:33 AM
