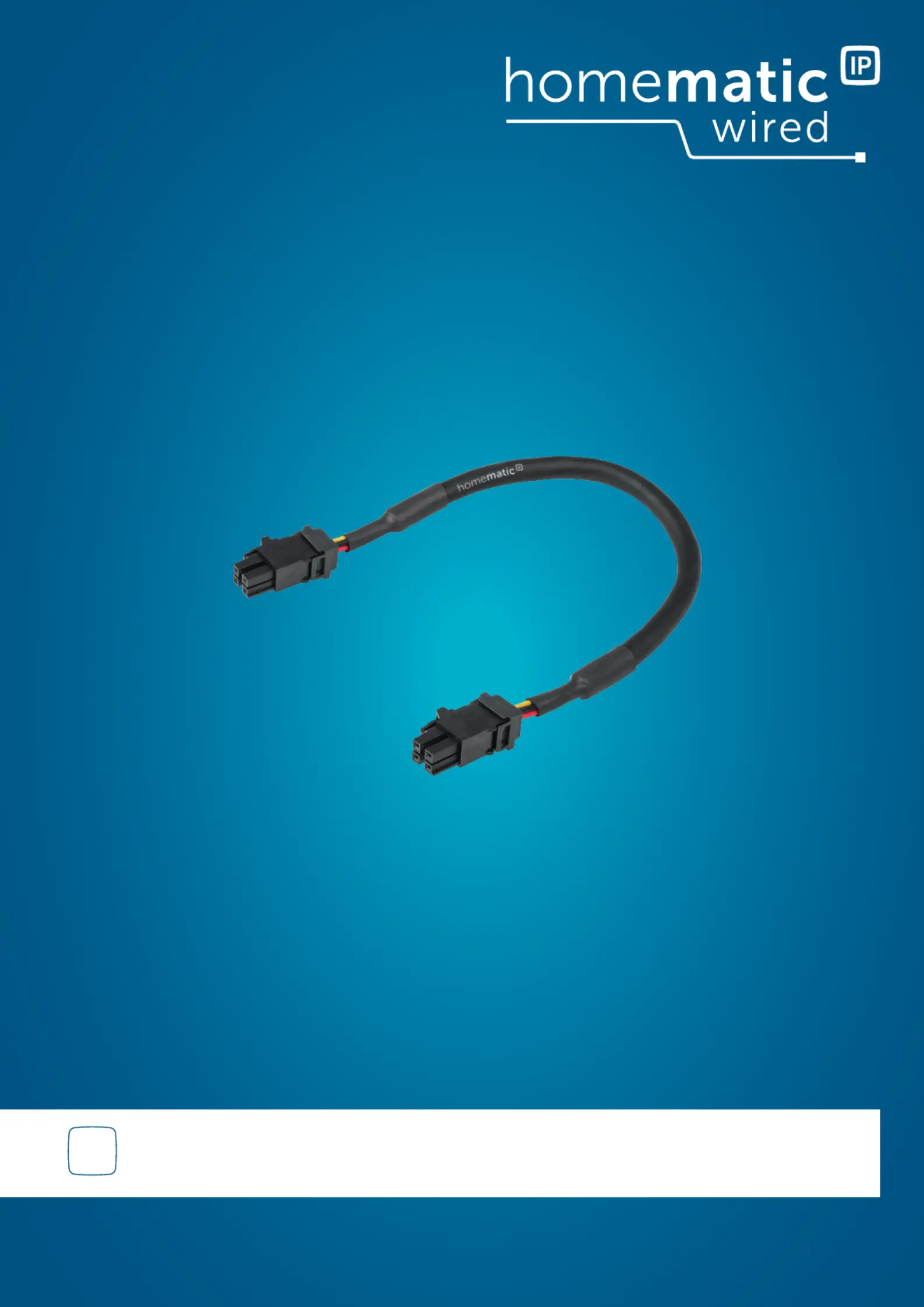

Wired Bus Connection Cable – 22 cm

HmIPW-BC22

Installation and Operating Manual

Table of contents

1 Intended use..........................................................................................................3

2 Maintenance and cleaning.................................................................................3

3 Disposal.................................................................................................................. 3

4 Technical specifications..................................................................................... 4

Documentation © 03/2025 eQ-3 AG, Germany

processes without the written consent of the publisher.

It is possible that this manual may contain typographical errors or printing errors. However, the information contained in this manual is reviewed on

a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or

the consequences thereof. All trademarks and industrial property rights are acknowledged.

Changes in line with technical progress may be made without prior notice.

Version 1.1 (2025-06-12)

Intended use

1 Intended use

This cable is used for wiring of

Homematic IP wired DIN rail compo-

nents in power distribution panels. The

Homematic IP Wired Bus Connection

Cables are tested with a test voltage of

4 kV and may therefore be laid directly

next to mains voltage cables.

2 Maintenance and cleaning

The device is maintenance-free for

you , Leave any maintenance or re-

pair to a specialist.

Always switch off the mains voltage

(switch off the circuit breaker) be-

fore working on the device terminal

compartment and when installing

or removing the device! Only quali-

fied electricians (in accordance with

VDE 0100) are permitted to carry

out work on the 230 V mains.

Clean the device using a soft, clean, dry

and lint-free cloth. The cloth can be

slightly dampened with lukewarm water

to remove more stubborn marks. Do not

use any detergents containing solvents

for cleaning purposes. They could cor-

rode the plastic housing and label.

3 Disposal

This symbol means that the device

must not be disposed of as house-

hold waste, general waste, or in a

yellow bin or a yellow sack. For the

protection of health and the envi-

ronment, you must take the product

and all electronic parts included in

the scope of delivery to a municipal

collection point for waste electrical

and electronic equipment to ensure

their correct disposal. Distributors of

electrical and electronic equipment

must also take back waste equip-

ment free of charge. By disposing of

it separately, you are making a valu-

able contribution to the reuse, re-

cycling and other methods of re-

covery of old devices. Please also

remember that you, the end user,

are responsible for deleting person-

al data on any waste electrical and

electronic equipment before dis-

posing of it.

The CE mark is a free trademark that

is intended exclusively for the au-

thorities and does not imply any as-

surance or guarantee of properties.

If you have any technical questions

about the appliance, please contact

your specialist dealer.

Product specificaties

Merk:	Homematic IP
Categorie:	Niet gecategoriseerd
Model:	HmIPW-BC22
Kleur van het product:	Zwart
Snoerlengte:	0.22 m
Gewicht verpakking:	21.8 g
Breedte verpakking:	180 mm
Diepte verpakking:	180 mm
Certificering:	CE
Duurzaamheidscertificaten:	CE
Aansluiting 1:	Molex (4-pin)
Aansluiting 2:	Molex (4-pin)
Connector 1 vormfactor:	Recht
Connector 2 vormfactor:	Recht
Aansluiting 1 type:	Mannelijk
Aansluiting 2 type:	Mannelijk
