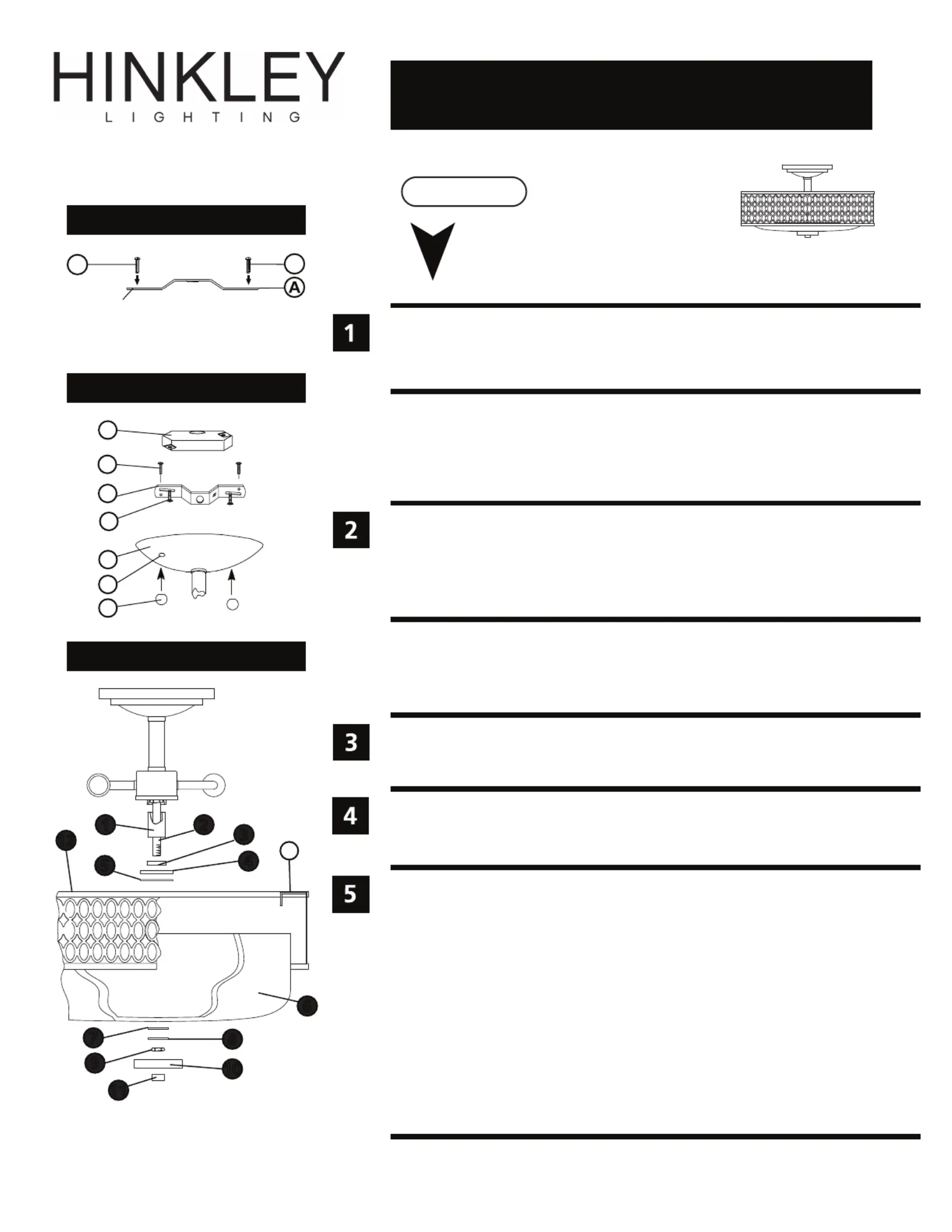

assembly instructions

Item No. 53241

1.Find a clear area in which you can work.

2.Unpack fixture and glass from carton.

3.Carefully review instructions prior to assembly.

1. Prepare gem strap for mounting by threading two screws provided into (A) (B)

back of gull wing bracket of gem strap - see .(A)Drawing 1

• Be sure the holes into which the screws are threaded match the spacing of holes (D)

in the canopy (G) - see .Drawings 1 and 2

2. Mount gem strap to junction box , using the two 8-32 screws (A) (J)(C) .(not provided)

Make electrical connections from supply wire to fixture lead wires. Refer to instruction

sheet and follow all instructions to make all necessary wiring connections. (I.S. 18)

Then refer back to this sheet to continue installation of this fixture.

1. Hang the fixture by slipping the mounting holes in the canopy over screws (B), (D)(1)

mounted in strap previously - see .(A)Drawing 2

2. Thread ball knobs onto end of screw and tighten to secrure fixture. (E)(B)

*** The construction of this fixture will be accomplished by first mounting the

mounting strap to the junction box, making all necessary electrical connections,

hanging the fixture from the ceiling, and then installing the glass.

start here

53241

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Drawing 2 - Fixture Mounting

Drawing 3 - Glass Installation

Drawing 1 - Strap Detail

B

(side view)

gull wing

bracket

B

B

D

J

C

A

1

E

01.01.13

1. To install glass, slip tube over threaded stem on bottom of fixture body(1)(2)

- see .Drawing 3

2. Slip cap over threaded stem followed by ring and plastic washer .(3)(2)(4)(5)

3. Slip threaded stem through center hole of glass and hold glass in position.(2)(6)

4. Slip plastic washer followed by steel washer onto threaded stem and hold(7) (8)(2)

parts in position.

5. Thread hex nut onto threaded stem and tighten hex nut to secure glass.(9) (2)

6. Slip bottom cap onto threaded stem and then thread decorative knob (10)(2)(11)

onto end of threaded stem and tighten to secure.(2)

7. Lift decorative ring up around glass and rest tabs on top of glass to complete (12)(T)

assembly.

G

12

3

4

5

6

7

8

9

10

11

12

T

HINKLEY LHNG IGTI 330in ray,Ank 44012 00.446539 /40.65550 legm00 P OakPakw vo Lae,OH 8.5 43.0 hinkyliinght.co

T24 JA8-2016
