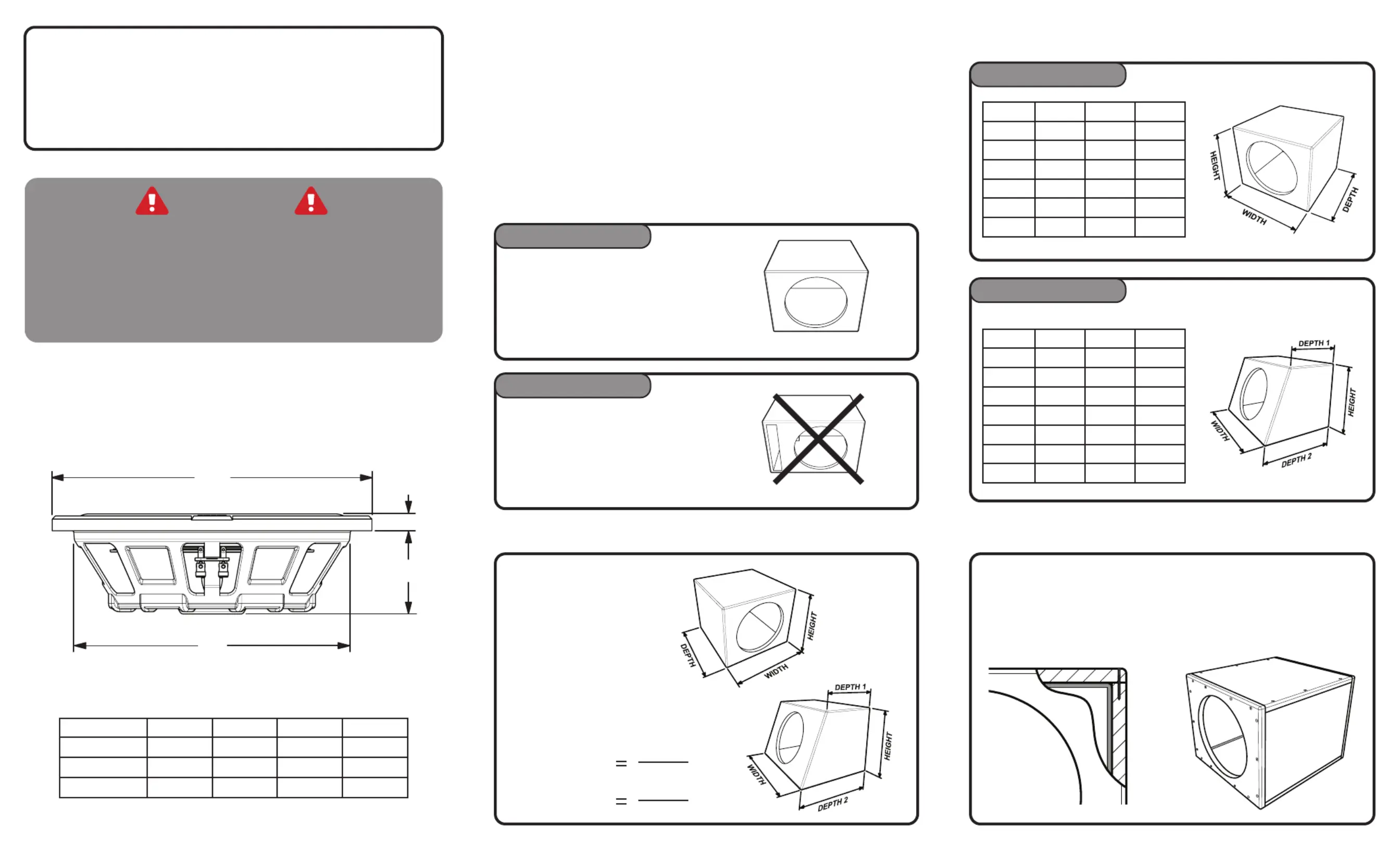

Sealed enclosures offer a range of performance

proles depending on the internal air volume.

Larger enclosures will have a smoother more

extended response while a small enclosure

will have increased output in a more focused

frequency range. Sealed enclosures are the

simplest to construct but do require that the box

be completely air tight.

•Use 3/4” MDF

•Make sure the woofer mounting panel is

full width and height

•Glue all mating surfaces

•Use wood screws

•Use silicone caulk on all internal joints

The internal volume of the

enclosure must be determined

to insure proper performance.

Simply measure height, width and

depth of enclosure you intend

to build. Subtract the material

thickness. Multiply these numbers

and divide by 1728 to get the

volume in cubic feet.

For enclosures with an angled

panel, measure the larger and

smaller depths, add these

together and divide by two. Use

this averaged depth.

Enclosure

Volume

D

H x W x D

1728

D1 + D2

2

Sealed

Vented

Enclosure types

Volume calculation

Subwoofer dimensions

CAUTION

Always consider consulting a professional audio installer

before installing new subwoofers. High power audio

systems have the ability create sound levels above 130dB.

Extended exposure to high sound pressure levels can

cause hearing damage.

Always run any new wiring through safe areas that wont

interfere with the normal operation of the vehicle.

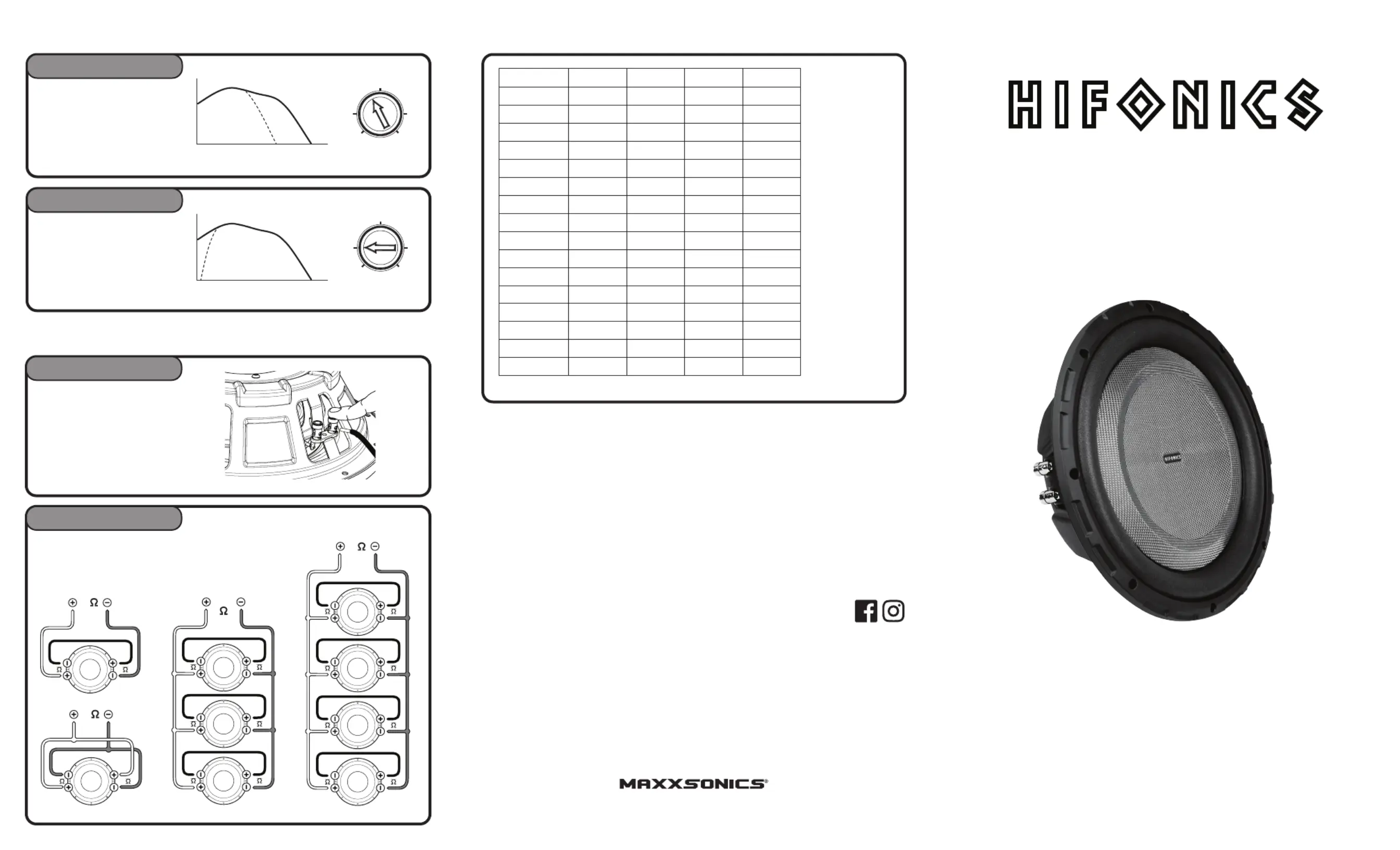

Congratulations on your choice of a HIFONICS subwoofer.

This “Quick Start Installation” guide is meant to help you

“hook up” and play music. For more detailed information

on system setting, speaker and subwoofer conguration,

and full specications by model, visit the website at

HIFONICS.com

It’s a good idea to conrm that you have purchased the

correct size subwoofers to t your vehicle. If you have any

reservations about being able to complete the installation

yourself, we recommend contacting a professional. Be careful

as you go. Always disconnect the negative battery terminal

before starting any electrical work on the vehicle.

HEW8D4SHEW10D4SHEW12D4S

Height

12.5”13”14.5”

Width

12.5”13”14.5”

Depth

9.0”10”10.25”

Vb

0.5 ft

3

0.65 ft

3

0.75 ft

3

F3

56 HZ54 Hz56 Hz

Qtc

2.081.461.93

HEW8D4SHEW10D4SHEW12D4S

Height

12.5”13.5”14.5”

Width

17.5”18.5”19.5”

Depth 1

5.5”6.0”6.0”

Depth 2

7.5”8.0”8.0”

Vb

0.5 ft

3

0.65 ft

3

0.75 ft

3

F3

56 HZ54 Hz56 Hz

Qtc

2.081.461.93

Before you start

Rectangular

Angled

Recommended enclosures

Enclosure construction

in(mm)

ABCD

HEW8D4S

8.34" (212)2.63" (67)7.24" (184)0.66" (16.9)

HEW10D4S

10.2" (260)2.99" (76)9.09" (231)0.68" (17.3)

HEW12D4S

12.2" (310)3.17" (80.5)10.7" (271.9)0.72" (18.3)

A

B

D

C

Vented designs are NOT recommended. This

subwoofer is designed to perform in small

sealed enclosures.
